Console - Overhead

Console - Overhead

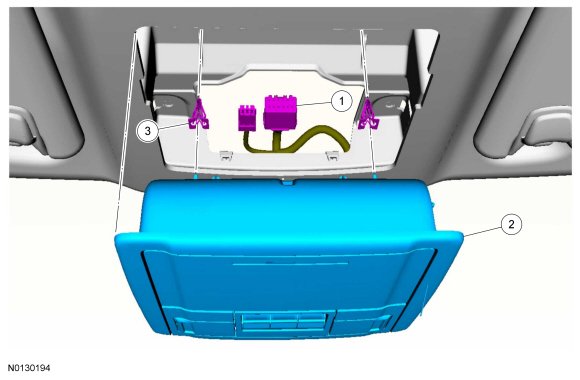

Exploded View










Removal

1. Pull the rear of the overhead console downward to release the retaining clips.

2. Disconnect the electrical connectors.

3. Remove the overhead console.

Installation

1. To install, reverse the removal procedure.
