Console - Front, Floor

Console - Front, Floor

Exploded View

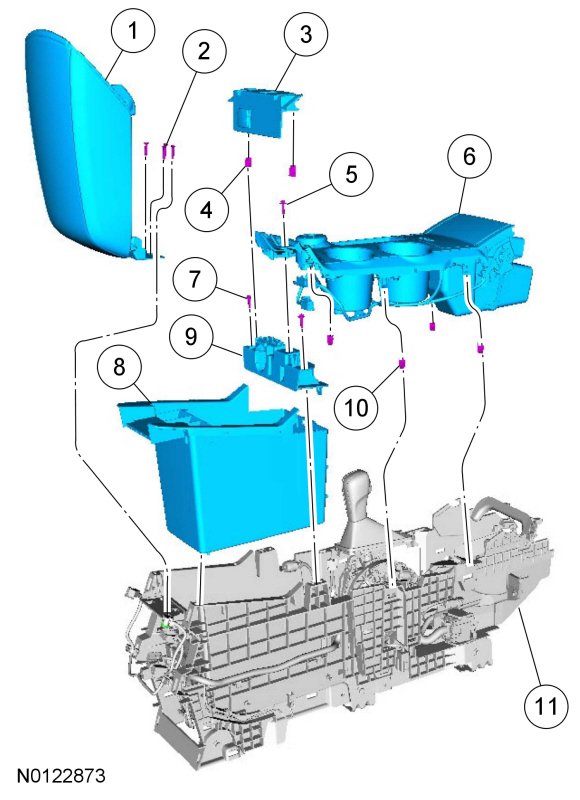

Front Floor Console Finish Panels

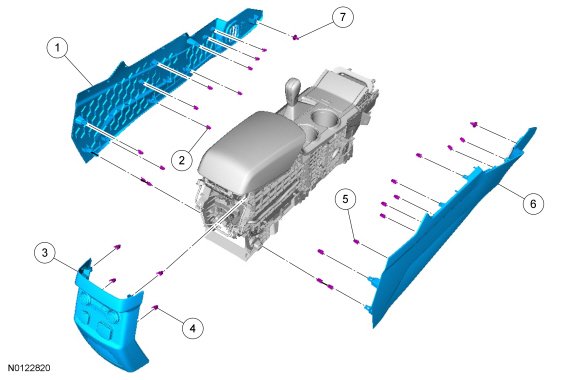

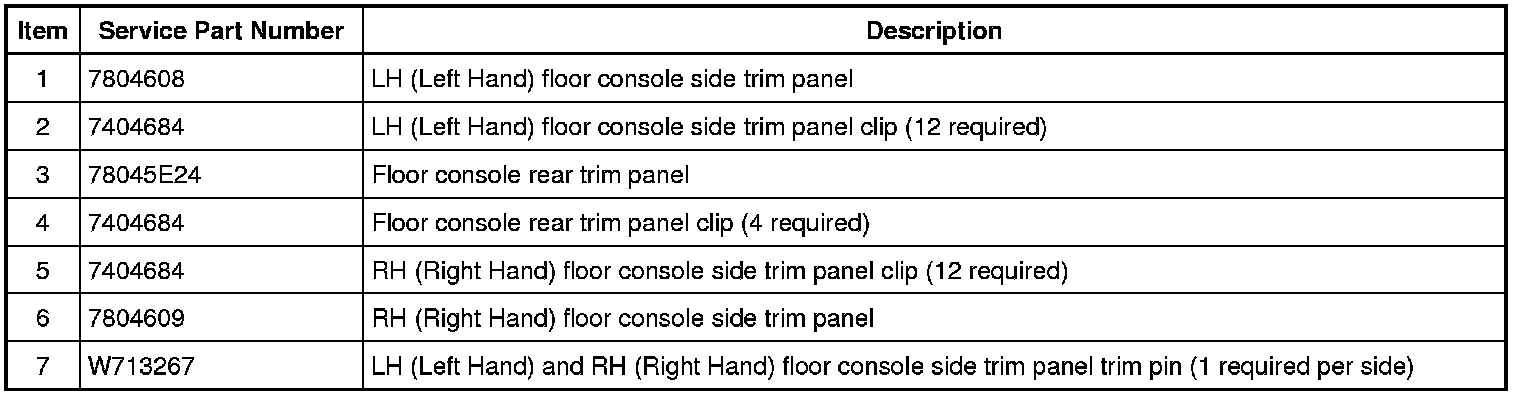

Front Floor Console Trim Panels

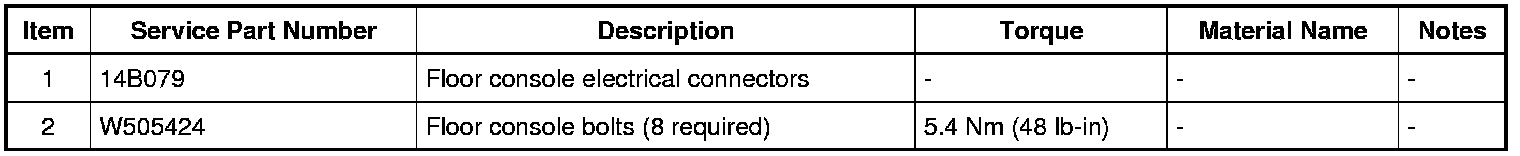

Front Floor Console Fasteners










Removal

1. Apply the parking brake.

2. Place the selector lever to the full rearward position.

3. Position the front seats fully rearward and fully reclined.

4. Remove the LH (Left Hand) and the RH (Right Hand) front floor console side trim panels.

- Pull outward to release the retainers.

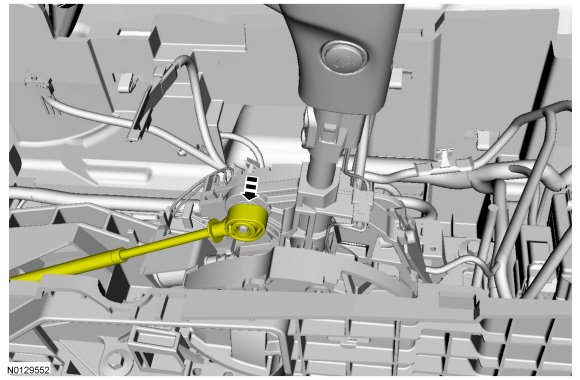

5. Disconnect the shifter cable from the selector lever.

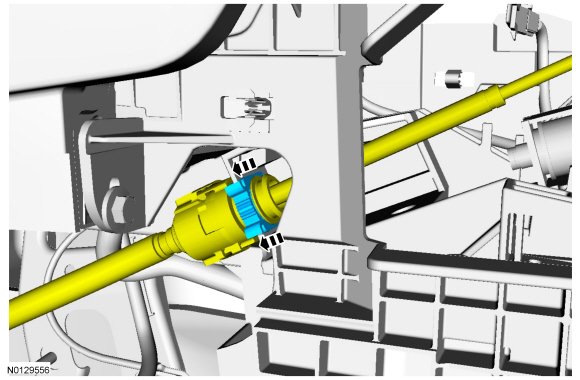

6. Disconnect the shifter cable from the front floor console bracket.

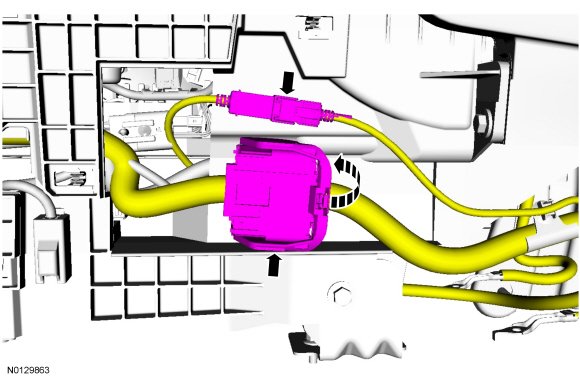

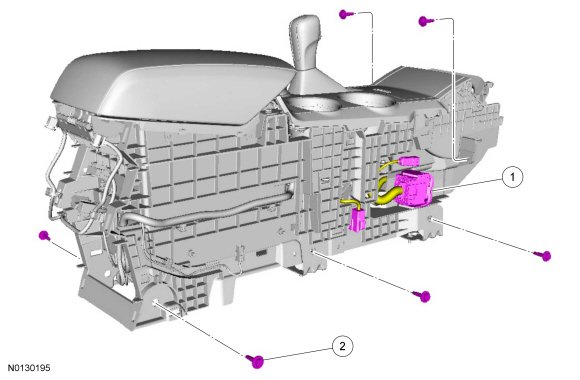

7. Disconnect the front floor console bulkhead electrical connector, the USB (Universal Serial Bus) cable and if equipped, the 110V power outlet connector from the side of the console.

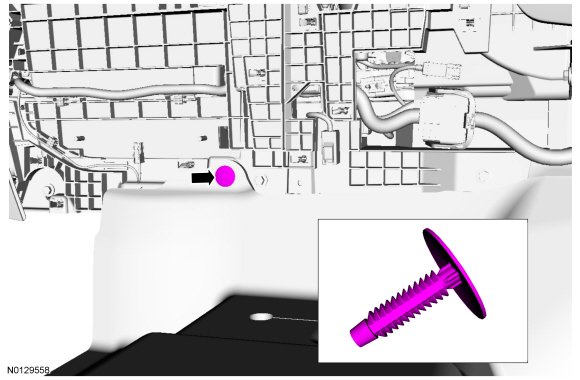

8. Detach the LH (Left Hand) and the RH (Right Hand) carpet push pins from the front floor console.

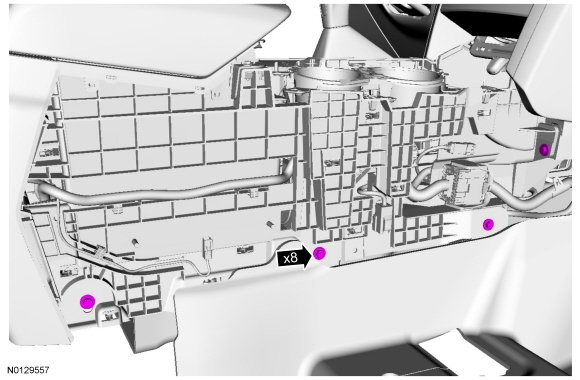

9. Remove the 8 console bolts.

- To install, tighten to 5.4 Nm (48 lb-in).





10. Remove the floor console.

Installation

1. To install, reverse the removal procedure.
