Front End Body Panels - Exploded View
Front End Body Panels - Exploded View
Front End Body Panels - Exploded View

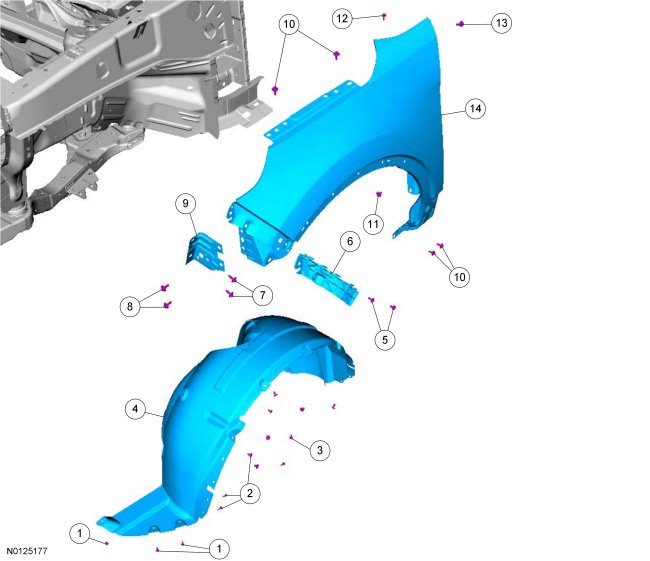

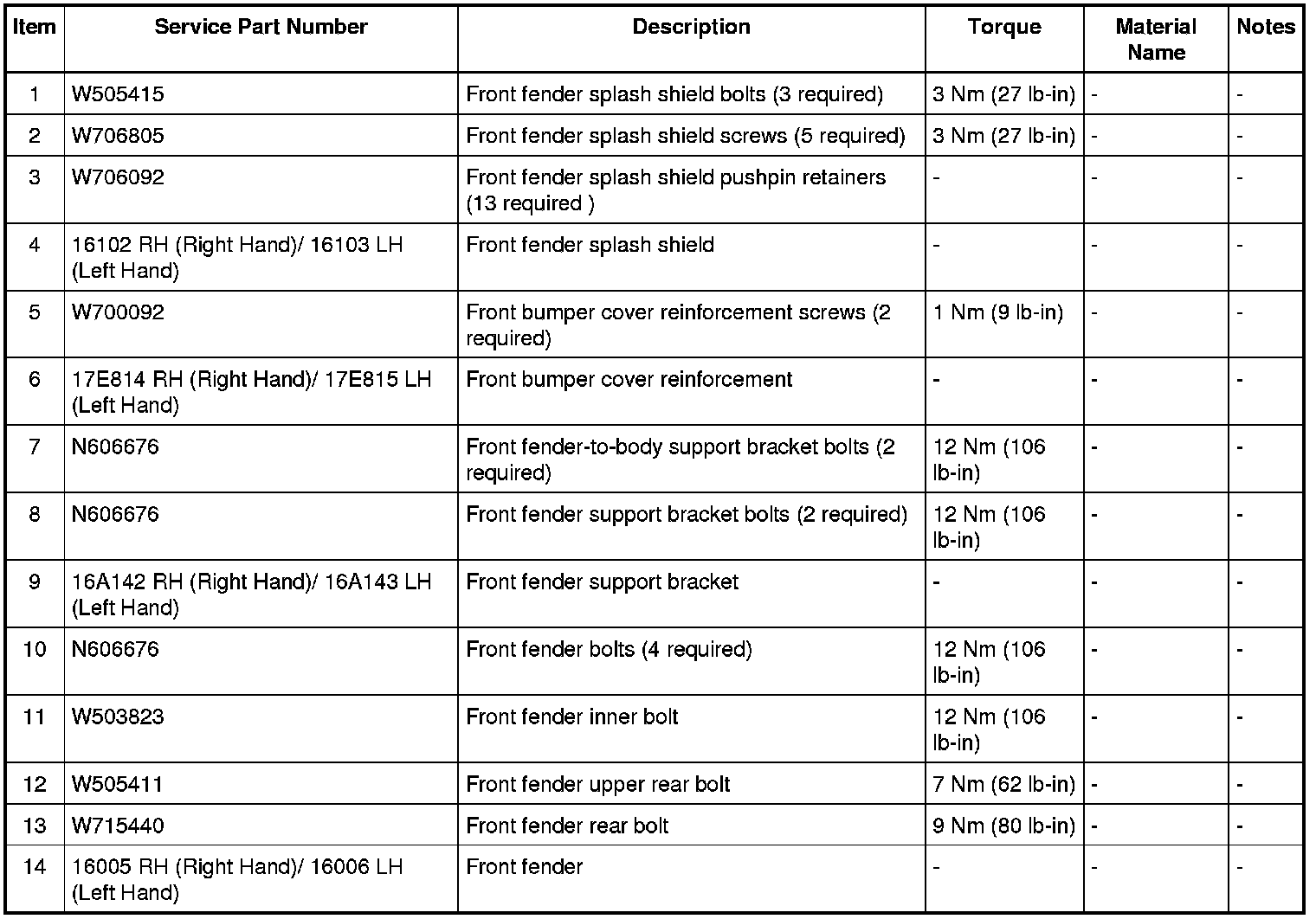

Exploded View
LH (Left Hand) shown, RH (Right Hand) similar.
