Fender Splash Shield

Fender Splash Shield

Removal

NOTE: LH (Left Hand) side shown, RH (Right Hand) side similar.

1. Remove the tire and wheel. REFER to Wheel and Tire .

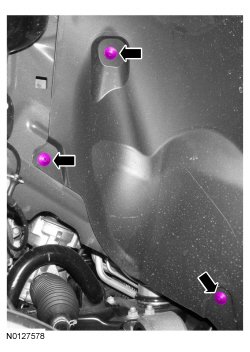

2. Remove the 3 pin-type retainers at the rear of the fender moulding.

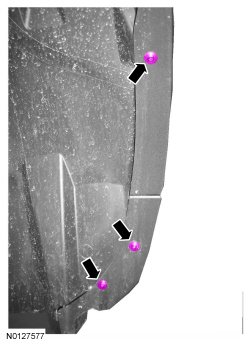

3. Remove the 3 rear fender splash shield pin-type retainers.

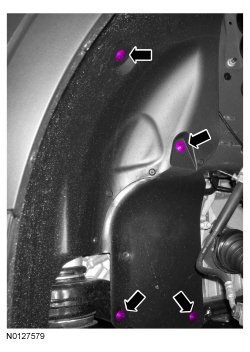

4. Remove the 4 middle fender splash shield pin-type retainers.

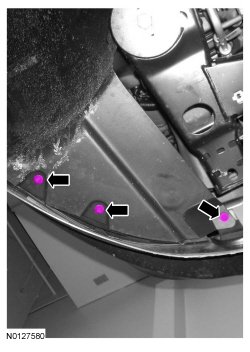

5. Remove the 3 lower fender splash shield bolts.

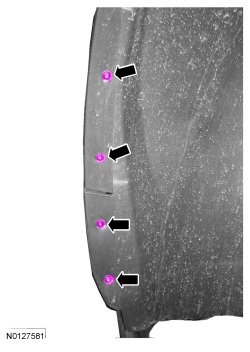

6. Remove the 4 front fender splash shield screws.

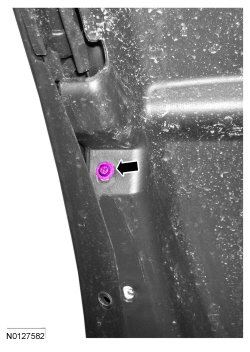

7. Position aside the fender moulding and remove the fender splash shield screw.

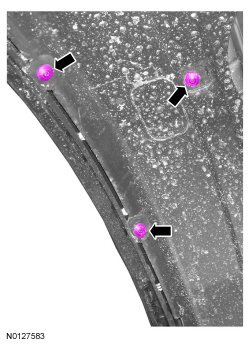

8. Remove the 3 upper fender splash shield pin-type retainers.





9. Remove the fender splash shield.

Installation

NOTE: LH (Left Hand) side shown, RH (Right Hand) side similar.

1. Position the fender splash shield to the vehicle.

2. Install the 3 upper fender splash shield pin-type retainers.





3. Install the 4 middle fender splash shield pin-type retainers.





4. Install the 3 rear fender splash shield pin-type retainers.





5. Position aside the fender moulding and install the fender splash shield screw.
- Tighten to 3 Nm (27 lb-in).





6. Install the 3 fender moulding pin-type retainers at the rear of the moulding.





7. Install the 4 front fender splash shield screws.
- Tighten to 3 Nm (27 lb-in).





8. Install the 3 lower front fender splash shield bolts.
- Tighten to 3 Nm (27 lb-in).

9. Install the tire and wheel. REFER to Wheel and Tire .
