Diagnostic Overview

B1317

Refer to Wiring Diagram Set 109 for schematic and connector information Electrical Diagrams.

Normal Operation and Fault Conditions

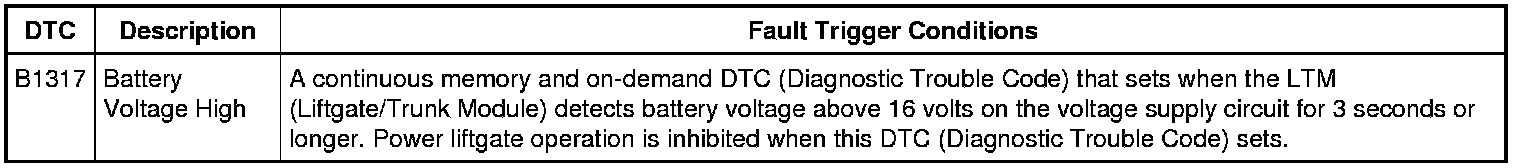

DTC Fault Trigger Conditions







Pinpoint Test

1. CHECK FOR CHARGING SYSTEM DTCs (Diagnostic Trouble Codes) SET IN OTHER MODULES

1. Ignition ON.

2. Using a scan tool, retrieve the continuous memory DTCs (Diagnostic Trouble Codes) from all modules.

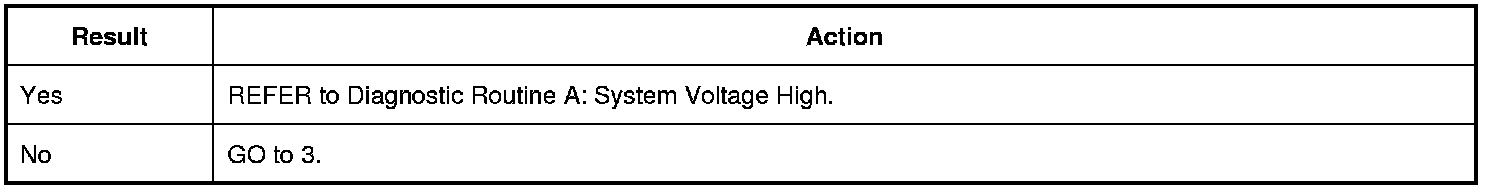

Is DTC (Diagnostic Trouble Code) B1317, B1676, P0563 (PCM) or U3003:17 set in more than one module?








2. CHECK THE BATTERY VOLTAGE

1. Turn off all interior/exterior lights and accessories.

2. Start and run the engine at approximately 2,000 RPM (Revolutions Per Minute) for 3 minutes while monitoring the battery voltage.

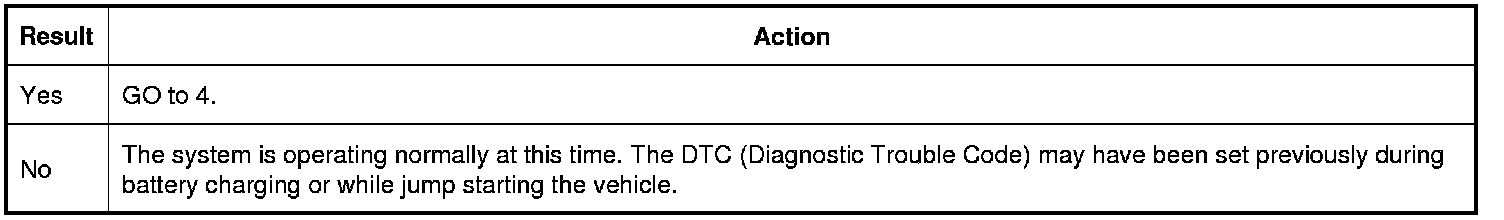

Does the battery voltage rise to 15.5 volts or higher?








3. RECHECK FOR DTC (Diagnostic Trouble Code) B1317

1. Turn the engine off.

2. Ignition ON.

3. Using a scan tool, clear the continuous memory DTCs (Diagnostic Trouble Codes).

4. Using a scan tool, perform the LTM (Liftgate/Trunk Module) self-test.

Is DTC (Diagnostic Trouble Code) B1317 present?








4. CHECK FOR CORRECT LTM (Liftgate/Trunk Module) OPERATION

1. Ignition OFF.

2. Disconnect and inspect all LTM (Liftgate/Trunk Module) connectors.

3. Repair:

- corrosion (install new connector or terminals - clean module pins)
- damaged or bent pins - install new terminals/pins
- pushed-out pins - install new pins as necessary

4. Reconnect all the LTM (Liftgate/Trunk Module) connectors. Make sure they seat and latch correctly.

5. Operate the system and determine if the concern is still present.

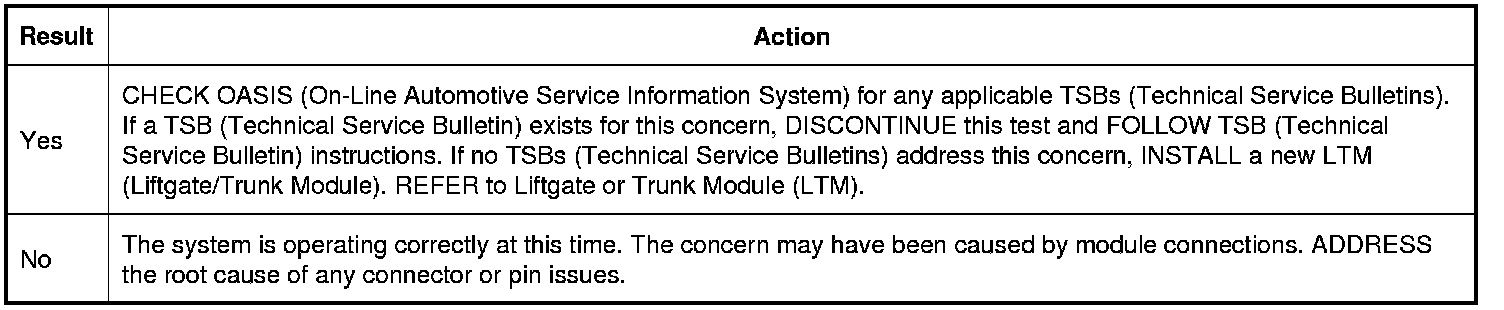

Is the concern still present?
