Handles, Locks, Latches and Entry Systems - without Intelligent Access (IA)

Hood Latch

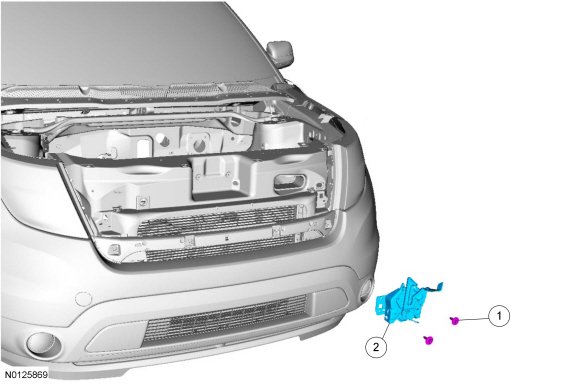

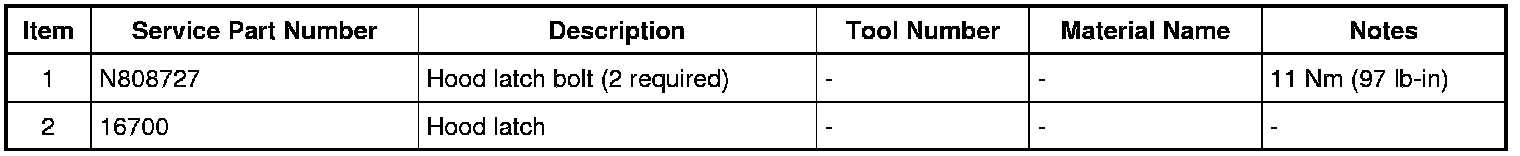

Exploded View










Removal

1. NOTE: Mark the position of the hood latch prior to removing the hood latch bolts.
Remove the 2 bolts and position the hood latch aside to gain access to the hood latch release cable. To install, tighten to 11 Nm (97 lb-in).

2. Disconnect the hood latch release cable and remove the hood latch.

Installation

1. NOTE: NOTE: When the hood latch is installed, the latch adjustment must be checked to make sure the latch is installed and aligned correctly.
To install, reverse the removal procedure.
