Bumper - Rear

Bumper - Rear

Removal

1. Remove the rear bumper cover. REFER to Bumper Cover - Rear .

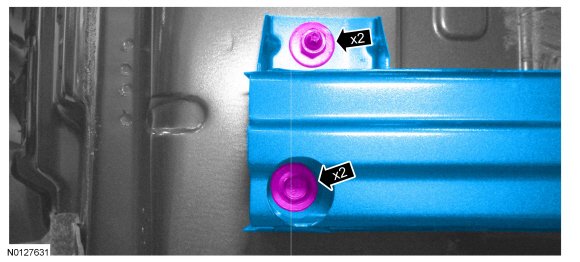

2. NOTE: LH (Left Hand) side shown, RH (Right Hand) side similar.
Remove the bumper.

1. Remove the lower bumper bolts.

2. Remove the upper bumper nuts.

3. Remove the bumper.






Installation

1. NOTE: LH (Left Hand) side shown RH (Right Hand) side similar.
Install the bumper.

1. Position the bumper to the vehicle.

2. Install the upper bumper nuts and lower bumper bolts.
- Tighten finger tight.

3. Tighten the upper bumper nuts.
- Tighten to 40 Nm (30 lb-ft).

4. Tighten the lower bumper bolts.
- Tighten to 40 Nm (30 lb-ft).






2. Install the bumper cover. REFER to Bumper Cover - Rear .
