Symbols Glossary

Symbols Glossary

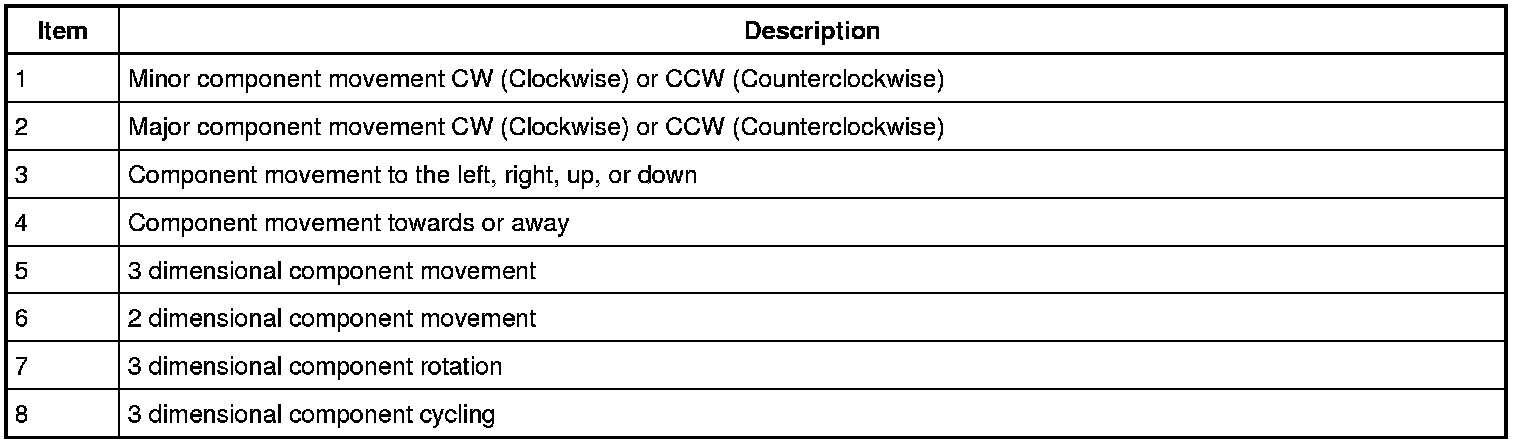

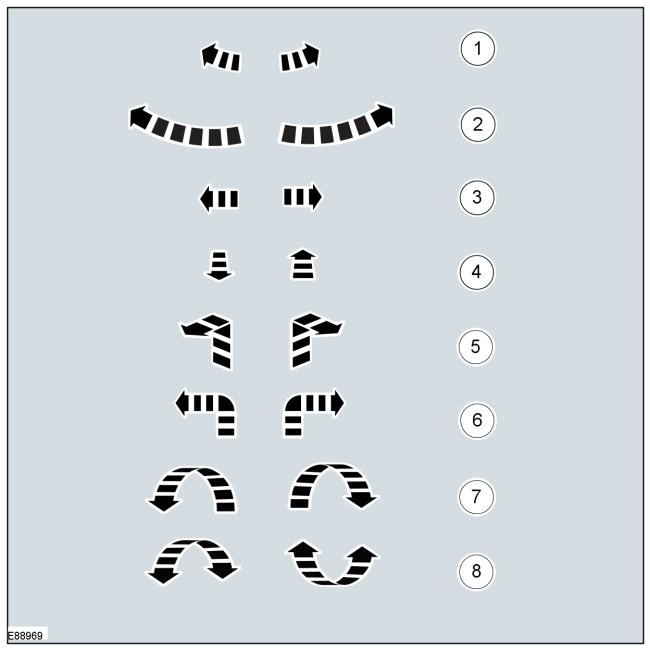

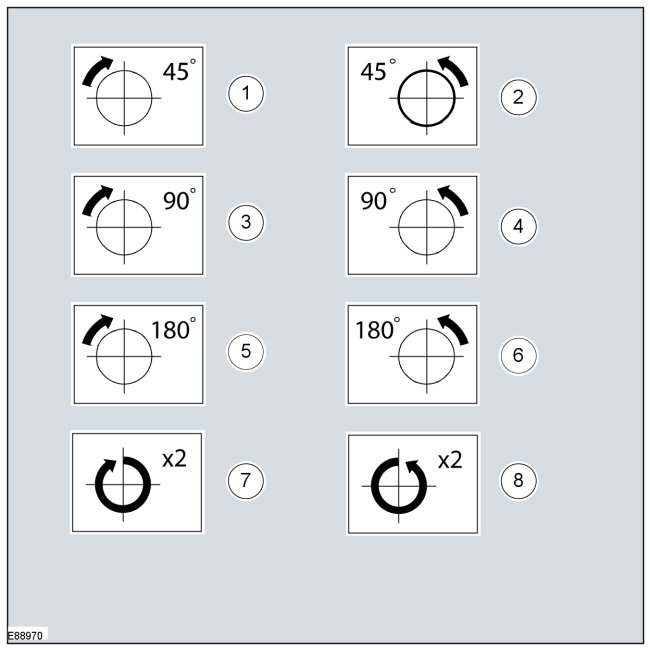

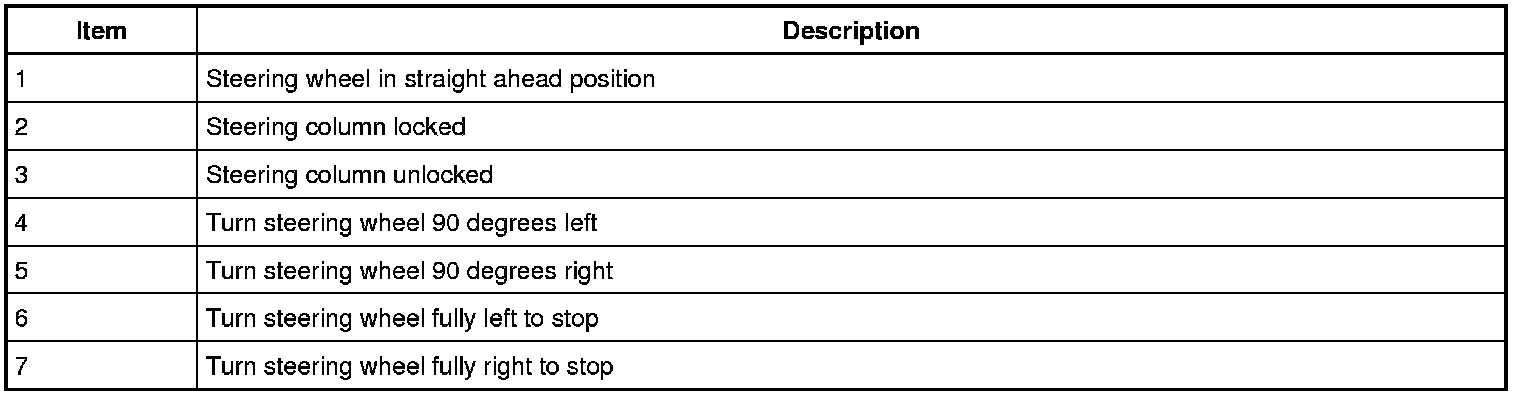

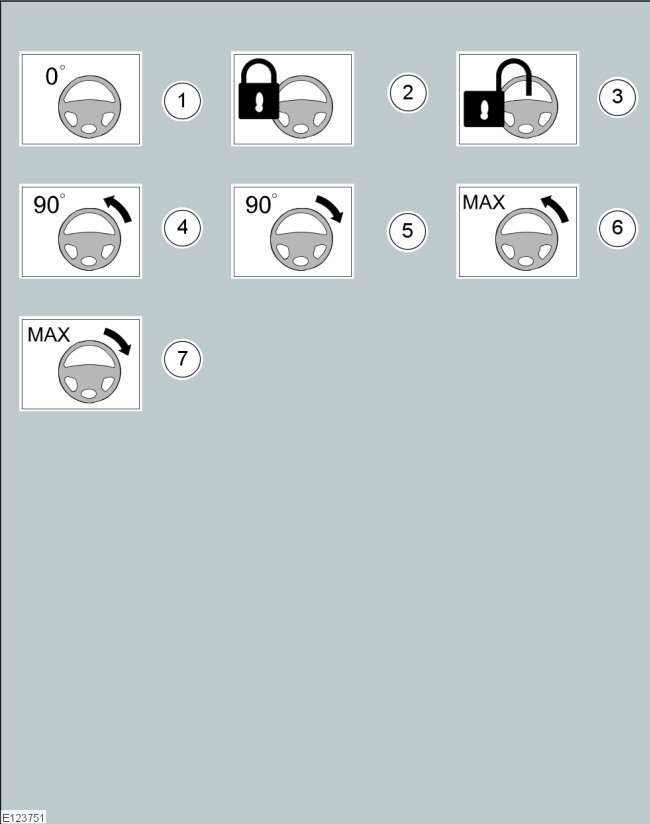

Movement Symbols

Movement symbols provide detailed information to a required component movement. These component movements can be rotational or 1 - 3 dimensional movements.

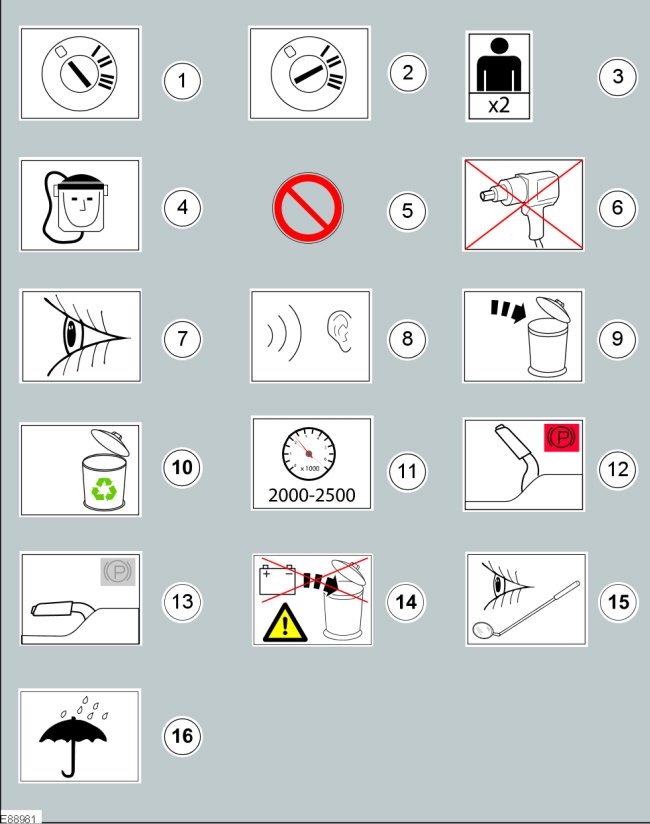

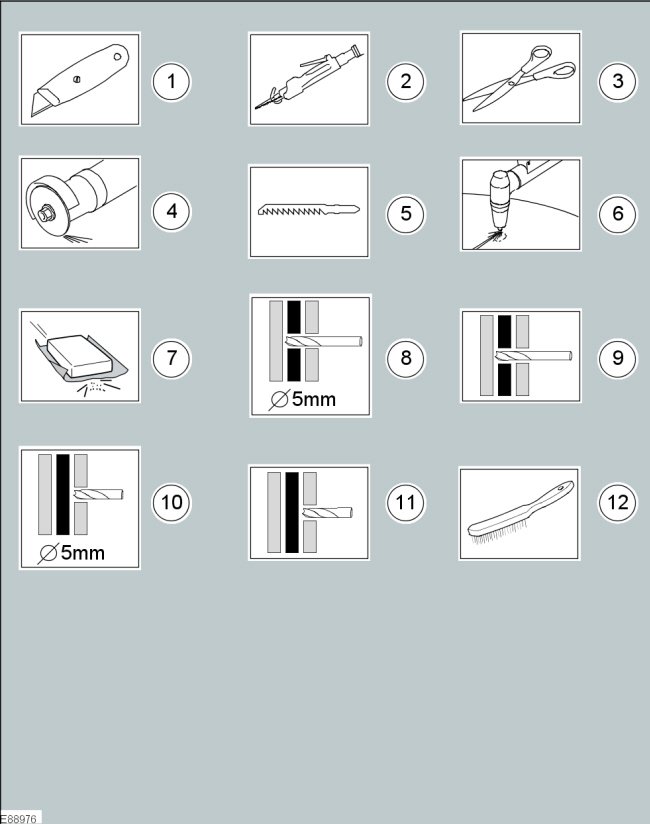

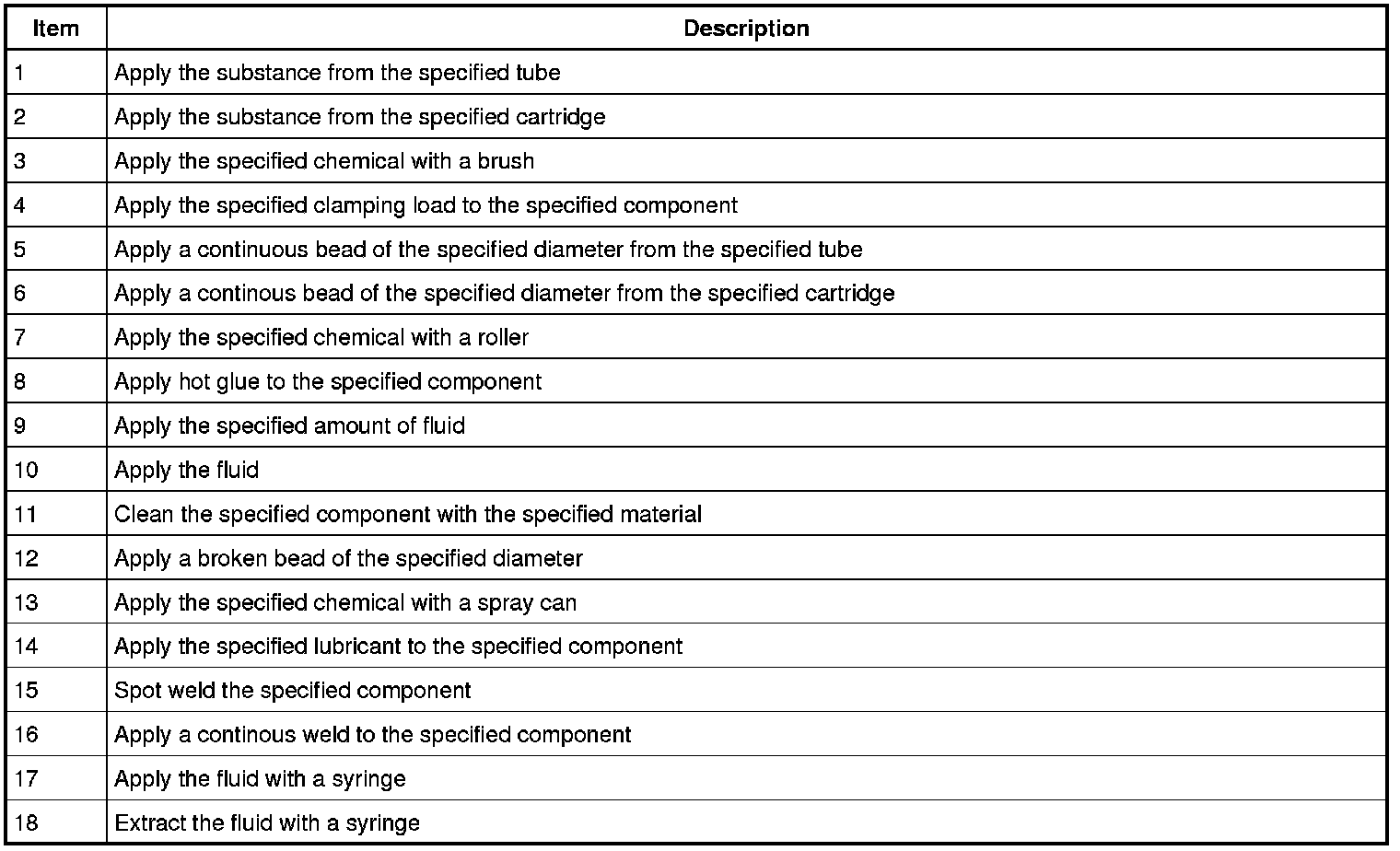

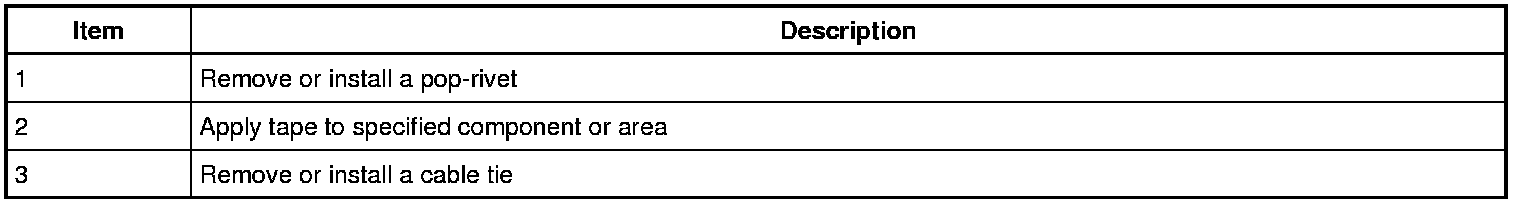

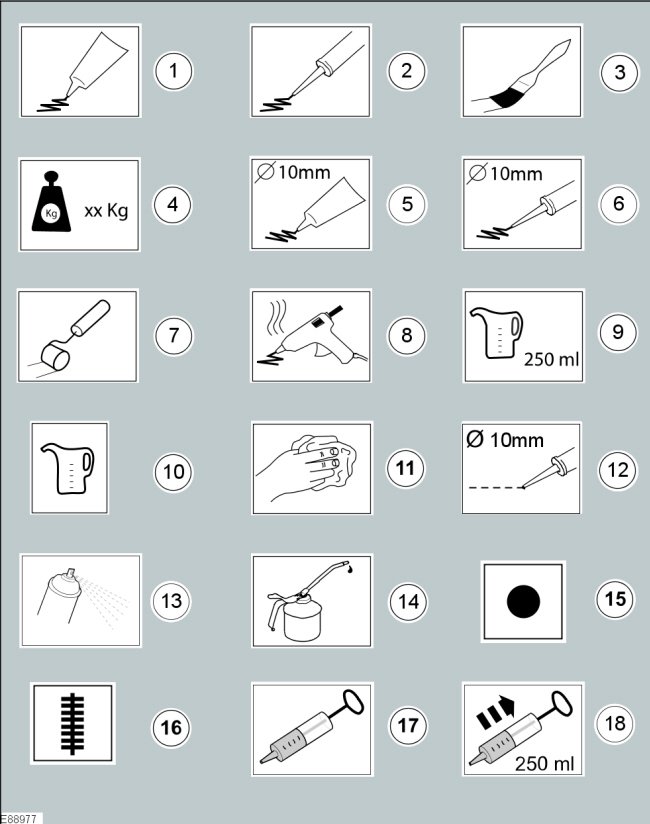

Service Action Icons

Service action icons communicate an additional action related to the step graphic (for example, discard the fastener removed in this step graphic or apply a 3 mm bead of sealer)
