Microphone

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

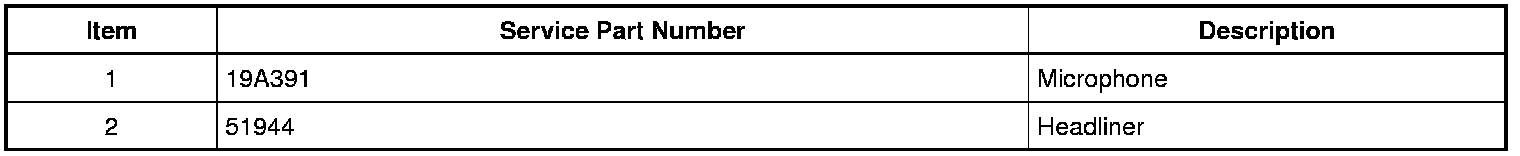

Exploded View










Removal

1. Remove the LH (Left Hand) and RH (Right Hand) A-pillar trim panel. REFER to A-Pillar Trim Panel.

2. Disconnect the headliner wiring harness pin-type retainers on the LH (Left Hand) A-pillar.



3. If equipped, remove the rain sensor cover.

4. Remove the LH (Left Hand) and RH (Right Hand) sun visor clips.

1. Remove retaining screws.

5. Remove the LH (Left Hand) and RH (Right Hand) sun visor assemblies.

1. Remove sun visor screw cover.

2. Remove sun visor screws.

3. NOTE: The sun visor electrical connector is glued to the top of the headliner. Position the front of the headliner down to access the sun visor electrical connector.
Disconnect sun visor electrical connector and remove the sun visor.



6. Position the front of the headliner down and remove the microphone.

1. NOTE: The microphone electrical connector is glued to the top of the headliner.
Disconnect the microphone electrical connector.





Installation

1. To install, reverse removal procedure.
