Diagnostic Routine AF

Diagnostic Routine AF

Diagnostic Overview

The SYNC(R) System Is Completely Inoperative

Normal Operation and Fault Conditions

REFER to Overview .

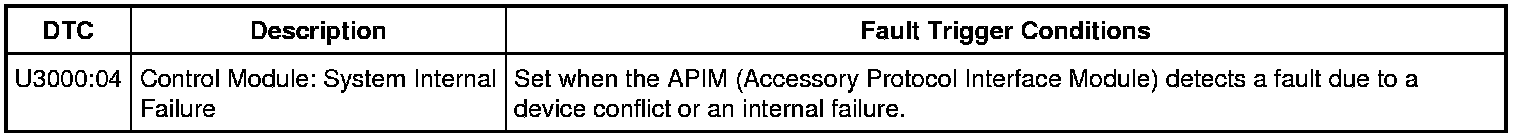

DTC Fault Trigger Conditions

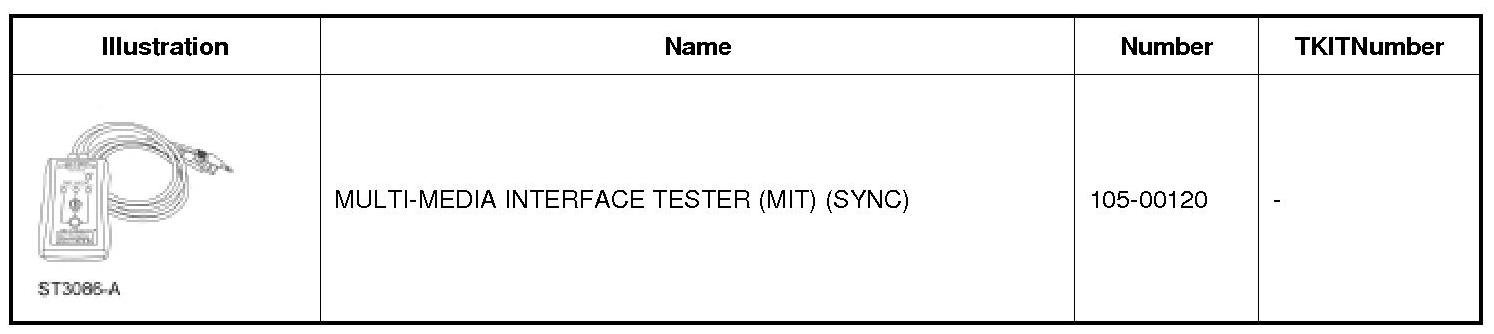

Special Tool(s)






Pinpoint Test

1. CHECK FOR SCAN TOOL COMMUNICATION WITH THE APIM (Accessory Protocol Interface Module)

1. Using a scan tool, preform the network test.

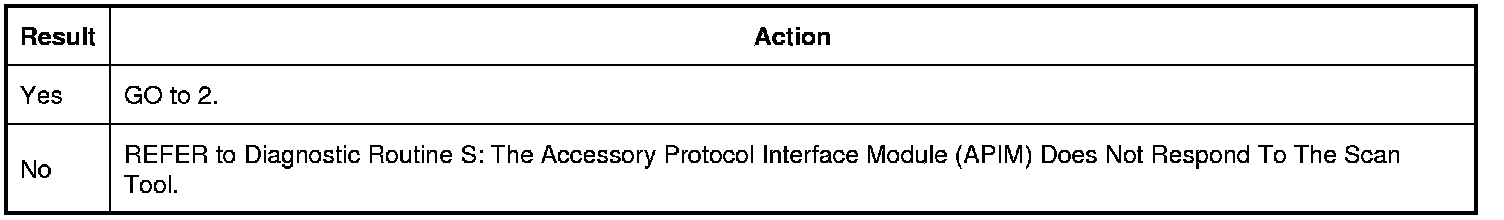

Does the APIM (Accessory Protocol Interface Module) pass the network test?








2. CHECK THE SYNC(R) SYSTEM OPERATION

1. NOTE: Carrying out a Master Reset returns all preference settings to the factory defaults, erases all the phone book and call histories, and deletes any devices paired with the SYNC(R) system.
Connect: 105-00120.

2. Using the 105-00120 , test the audio output for the audio input jack, USB (Universal Serial Bus) port, and Bluetooth connection using the VOICE switch on the steering wheel controls to enter each mode.

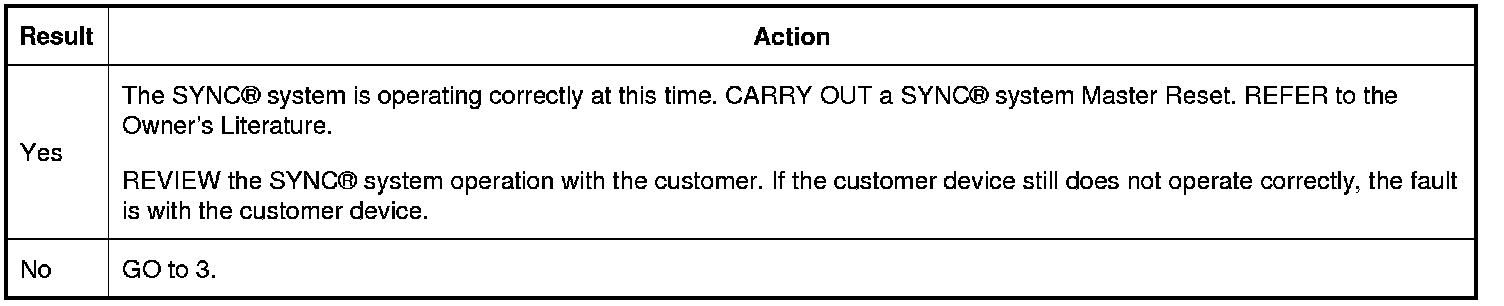

Do all of the SYNC(R) inputs function correctly?








3. RESET THE APIM (Accessory Protocol Interface Module) AND RECHECK SYNC(R) SYSTEM OPERATION

1. Carry out an APIM (Accessory Protocol Interface Module) power reset by disconnecting the battery for 5 minutes, then reconnecting it.

2. Connect: 105-00120.

3. Using the 105-00120 , test the audio output for the audio input jack, USB (Universal Serial Bus) port, and Bluetooth connection using the VOICE switch on the steering wheel controls to enter each mode.

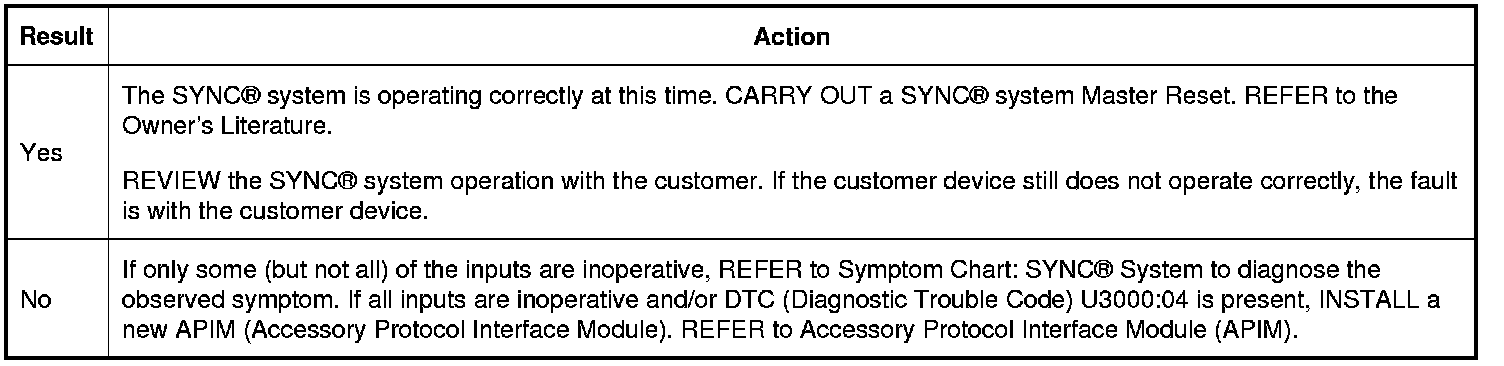

Do all of the SYNC(R) inputs function correctly?
