Speaker - Tweeter

Speaker - Tweeter

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

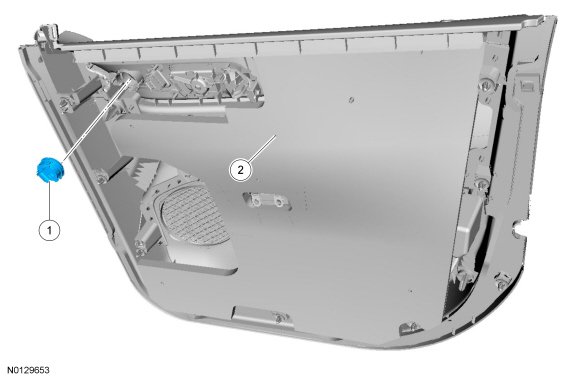

Exploded View











Removal

1. Remove the front door trim panel. REFER to Door Trim Panel - Front.

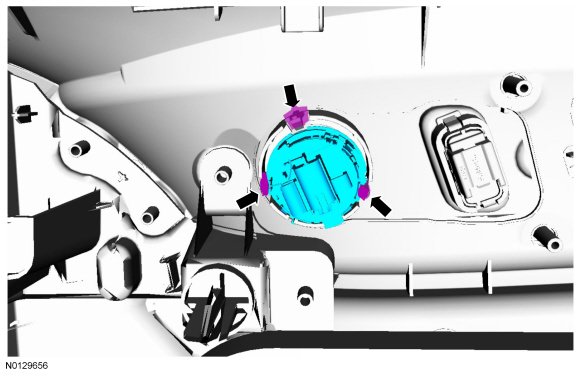

2. Release the 3 clips and remove the tweeter speaker.






Installation

1. To install, reverse the removal procedure.
