Speaker - Door

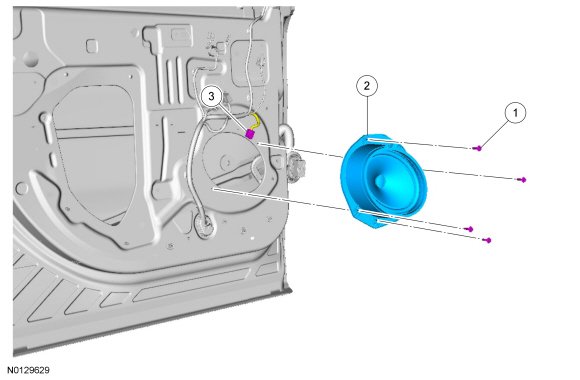

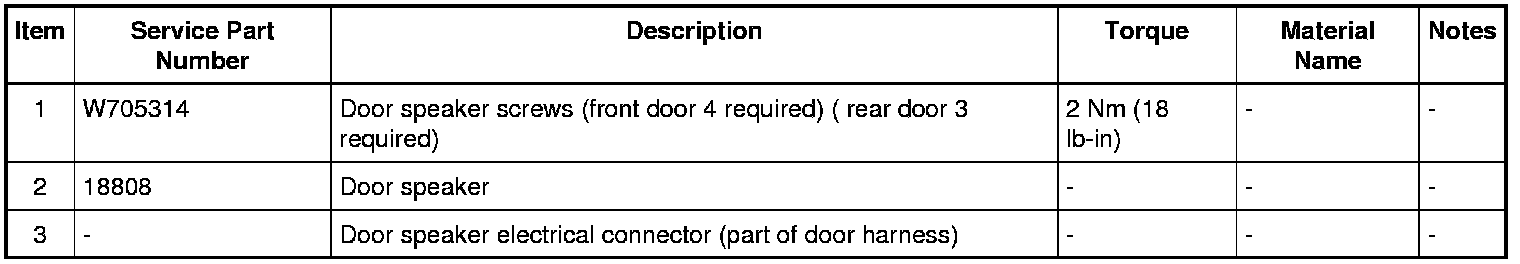

Exploded View

NOTE: Front door shown, rear door similar










Removal

1. Remove the door trim panel. REFER to Door Trim Panel - Front or REFER to Door Trim Panel - Rear.

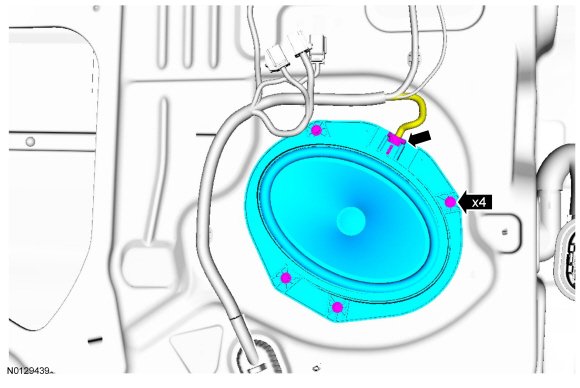

2. Remove the 4 screws (front door) or 3 screws (rear door) and the door speaker.
- To install, tighten to 2 Nm (18 lb-in).

1. Disconnect the electrical connector.






Installation

1. To install, reverse the removal procedure.
