Media Hub

Media Hub

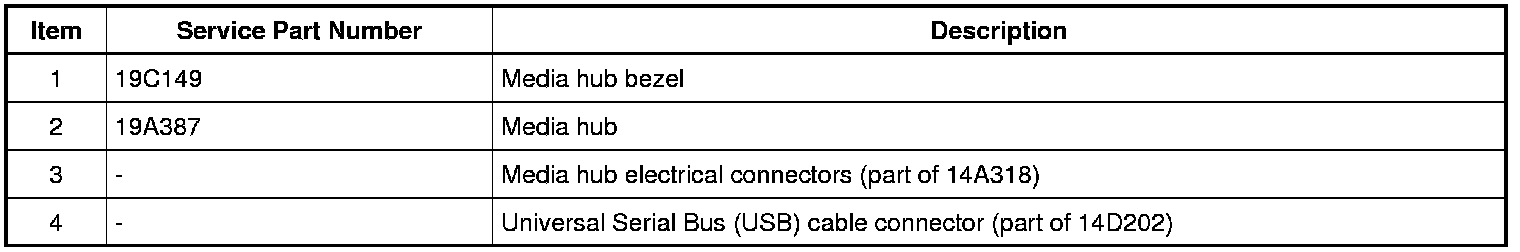

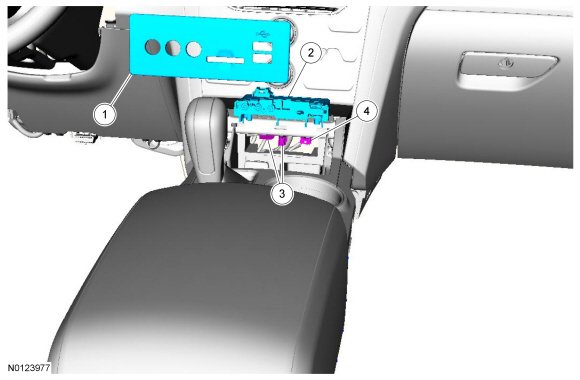

Exploded View










Removal

1. Open the floor console finish panel bin door.

2. Remove the media hub.

1. Using a suitable tool such as a flat-bladed trim remover, remove the media hub bezel and slide out the media hub.

2. Disconnect the media hub electrical connectors.

Installation

1. To install, reverse the removal procedure.
