Universal Serial Bus (USB) Cable - Upper

Universal Serial Bus (USB) Cable - Upper

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

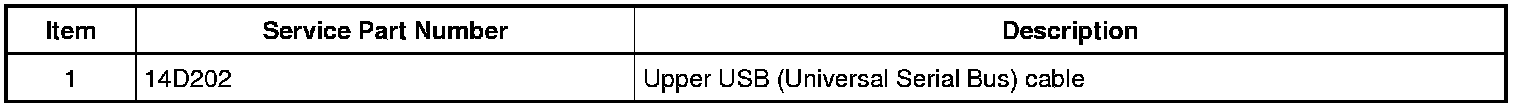

Exploded View










Removal

1. Remove the FDIM (Front Display Interface Module). REFER to Front Display Interface Module (FDIM).

2. Position the RF (Right Front) seat fully rearward and fully reclined.

3. Remove the RH (Right Hand) floor console side trim panel.

1. Pull outward to release the 12 clips.






4. Disconnect the upper USB (Universal Serial Bus) cable from the lower USB (Universal Serial Bus) cable.





5. Remove the upper USB (Universal Serial Bus) cable.

1. Disconnect the 3 pin-type retainers.





Installation

1. To install, reverse the removal procedure.
