Universal Serial Bus (USB) Cable - Lower

Universal Serial Bus (USB) Cable - Lower

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

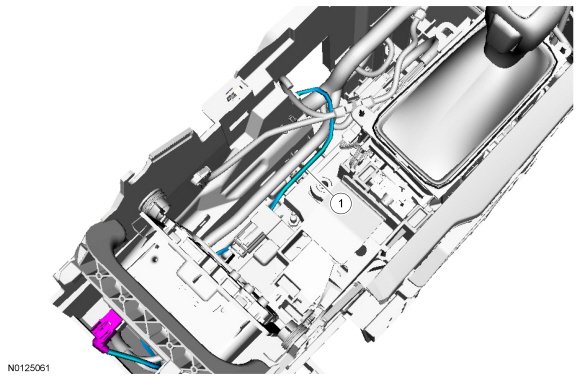

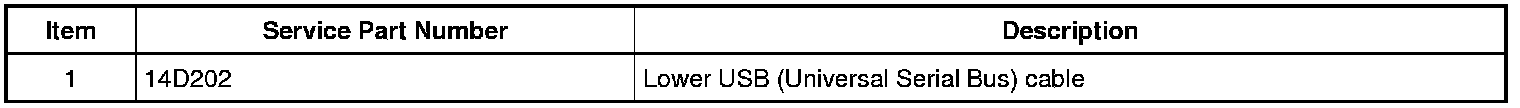

Exploded View










Removal

1. Position the RF (Right Front) seat fully rearward and fully reclined.

2. Remove the RH (Right Hand) floor console side trim panel.

1. Pull outward to release the 12 clips.






3. Remove the LH (Left Hand) and RH (Right Hand) finish panel. REFER to Instrument Panel - Exploded View.

4. Pull the LH (Left Hand) floor console side trim panels outward to release the top 3 retaining clips. REFER to Console - Front, Floor.

5. Position the arm rest latch trim panel aside.

1. Pull upward to release the 2 clips.





6. Remove the screw for the console upper finish panel.





7. Position the floor console selector lever to the full rearward position.

8. Position aside the console upper finish panel from the floor console.

1. Pull upward to release the clips starting at the rear and working forward.

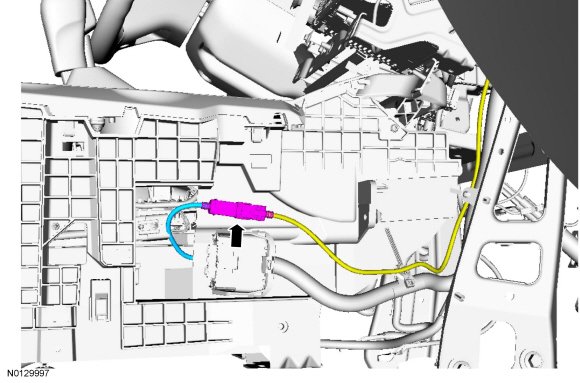

9. Disconnect the lower USB (Universal Serial Bus) cable from the upper USB (Universal Serial Bus) cable.

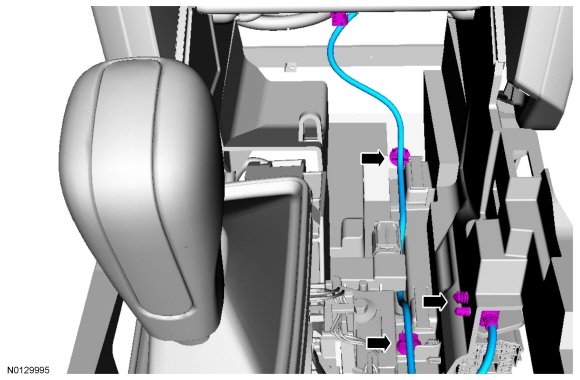

10. Remove the lower USB (Universal Serial Bus) cable.

1. Disconnect the lower USB (Universal Serial Bus) cable from the media hub.

2. Disconnect the 3 pin-type retainers.





Installation

1. To install, reverse the removal procedure.
