Information and Entertainment Systems - Premium

Audio Input Jack

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

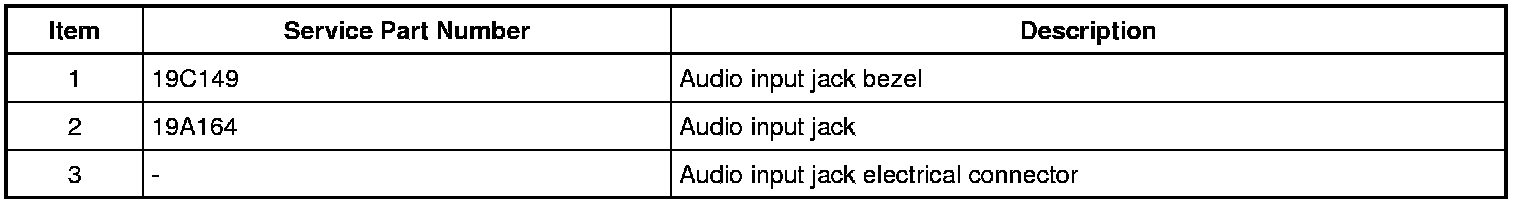

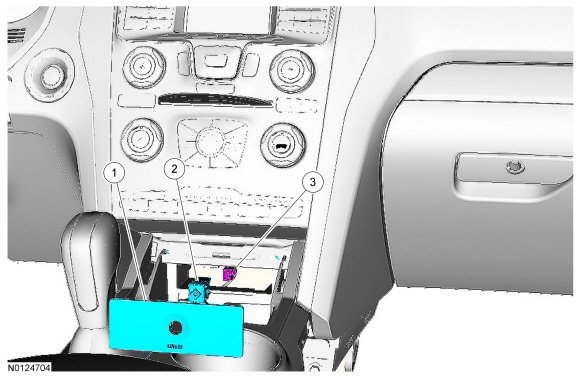

Exploded View










Removal

1. Remove the LH (Left Hand) and RH (Right Hand) finish panel. REFER to Instrument Panel - Exploded View.

2. Pull the LH (Left Hand) and RH (Right Hand) floor console side trim panels outward to release the top 3 retaining clips. REFER to Console - Front, Floor.

3. Position the arm rest latch trim panel aside.

1. pull upward to release the 2 clips.





4. Remove the 1 screw for the console upper finish panel.





5. Position the floor console selector lever to the full rearward position.

6. Position aside the console upper finish panel from the floor console.

1. Pull upward to release the clips starting at the rear and working forward.





7. Open the floor console finish panel bin door.

8. Remove the audio input jack.

1. Using a suitable tool such as a flat-bladed trim remover, remove the audio input jack bezel.

2. Disconnect the audio input jack electrical connector.

Installation

1. To install, reverse the removal procedure.
