FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Description and Operation
>>
Information and Entertainment Systems - Premium Plus
>>

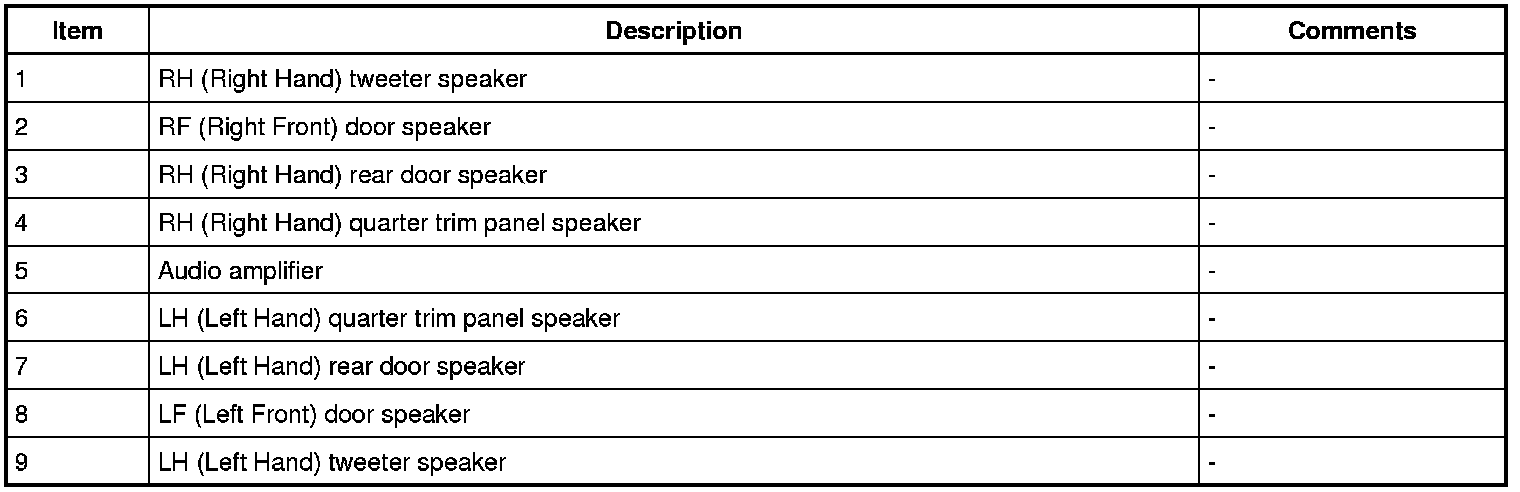

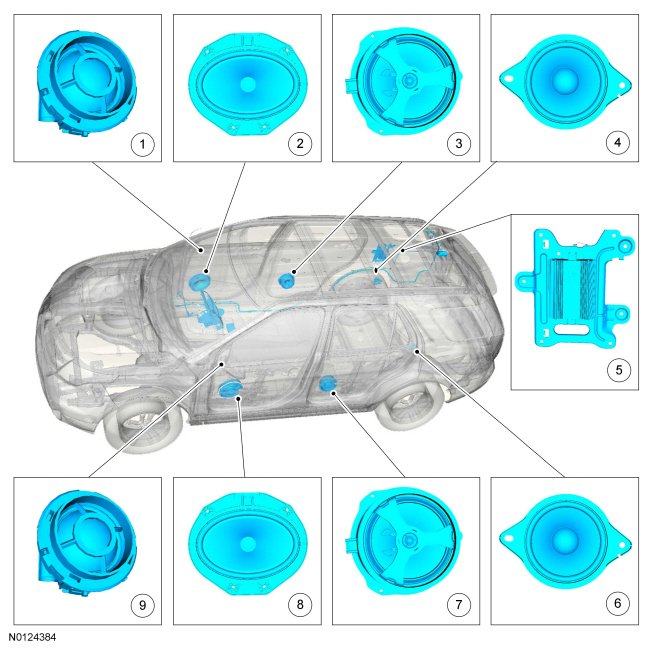

Component Location

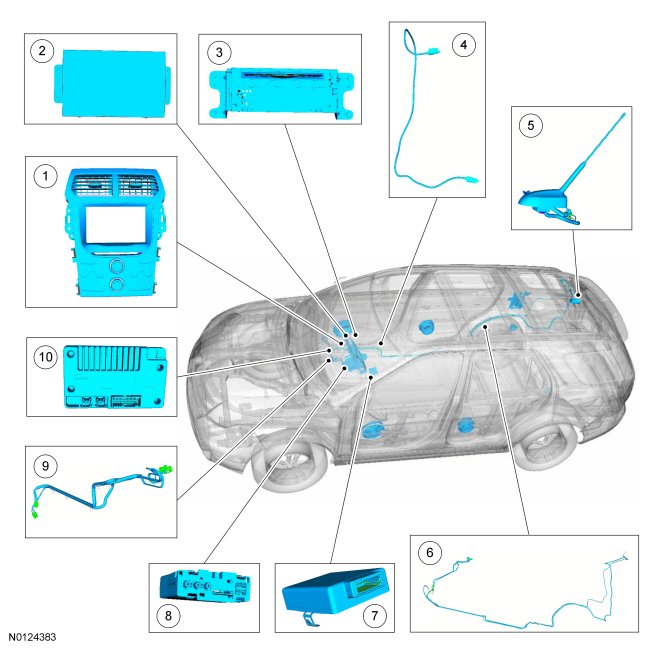

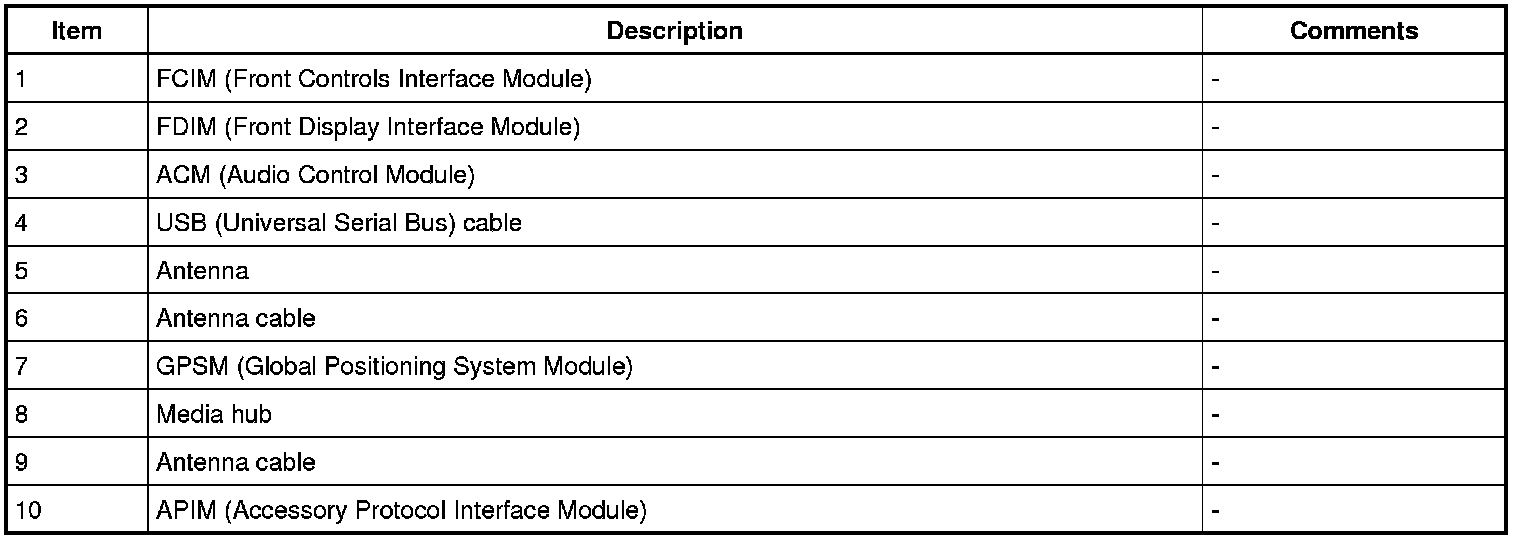

Component Location
Information and Entertainment Systems - Premium Plus
Component Location
