Parking Assist Warning Indicator: Service and Repair

Parking Aid Speaker

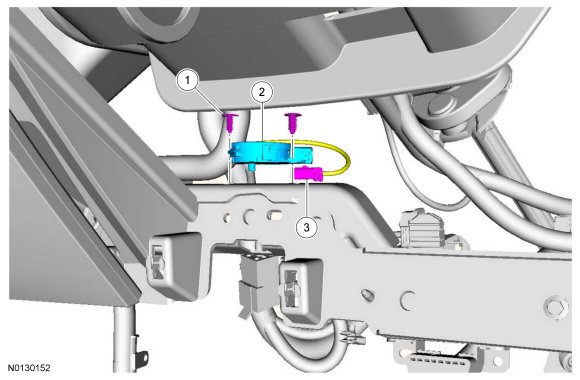

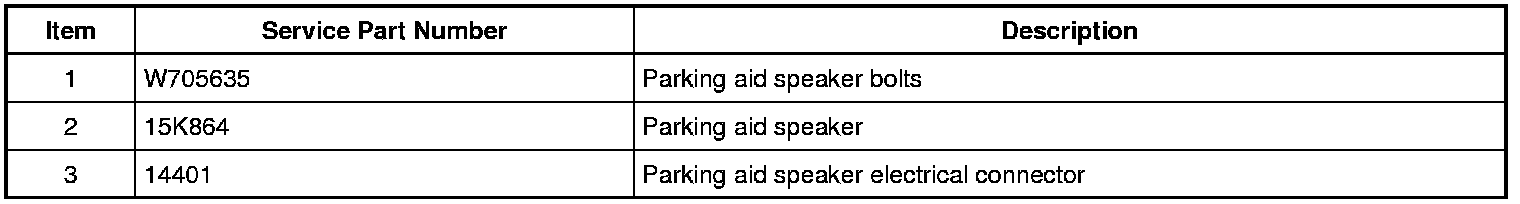

Exploded View










Removal

1. Remove the 2 bolts and remove the steering column cover trim panel.

- Pull outward to release the retainers.
- To install, tighten to 3 Nm (27 lb-in).





2. Remove the 4 bolts and remove steering column cover assembly.
- To install, tighten to 5 Nm (44 lb-in).

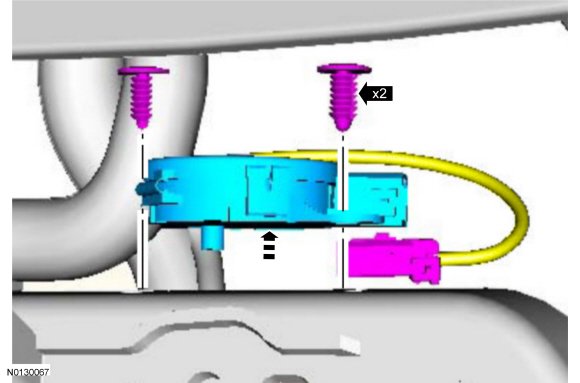

3. Remove the 2 bolts, disconnect the electrical connector and remove the parking aid speaker.





Installation

1. To install, reverse the removal procedure.
