Passive Start Antenna - Rear

Passive Start Antenna - Rear

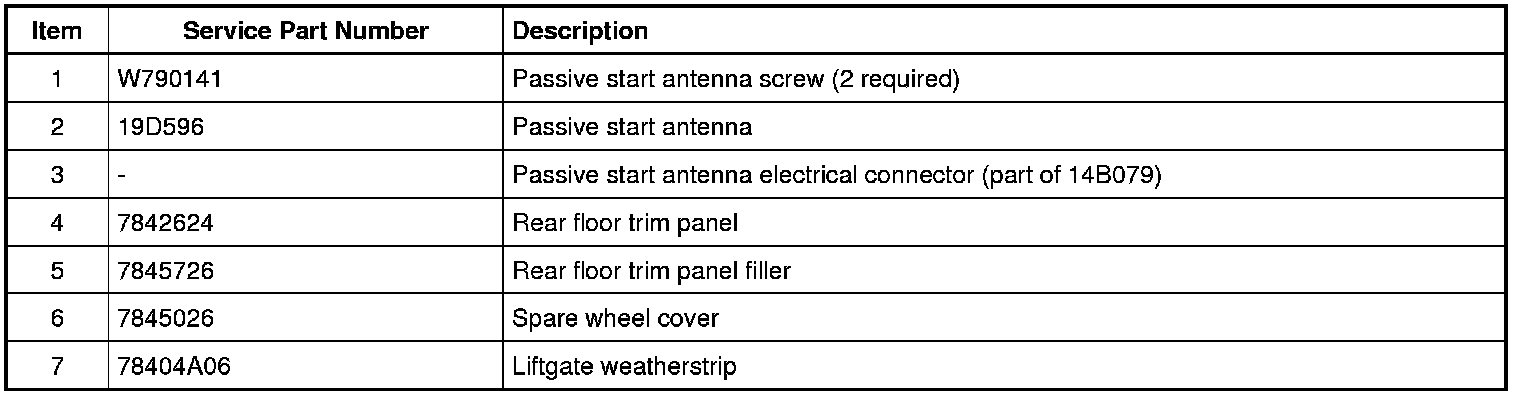

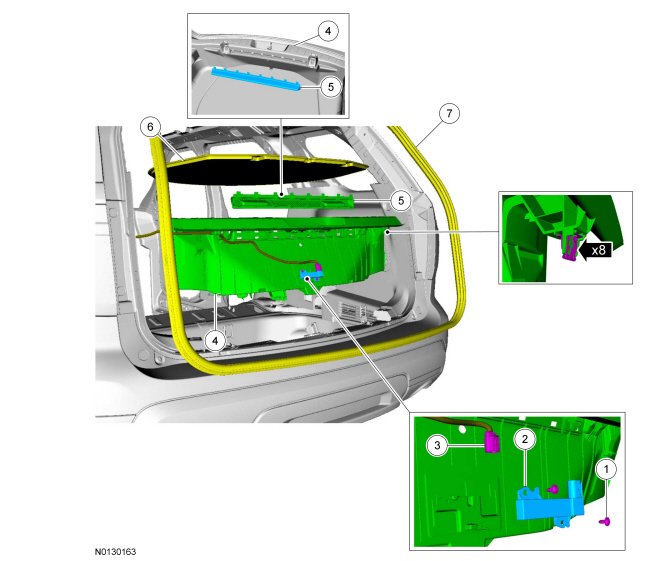

Exploded View











Removal

1. Position aside the liftgate weatherstrip.

2. NOTICE: To avoid damage to the liftgate scuff plate trim panel, remove any retaining clips from the body and attach them to the liftgate scuff plate trim panel before installing.

Remove the liftgate scuff plate trim panel.

1. Pull upward to release the retaining clips.

2. Disconnect the rear passive start antenna electrical connector and remove the liftgate trim panel.






3. Remove the 2 rear passive start antenna screws and remove the rear passive start antenna.

Installation

1. To install, reverse the removal procedure.
