Passive Start Antenna - Front

Passive Start Antenna - Front

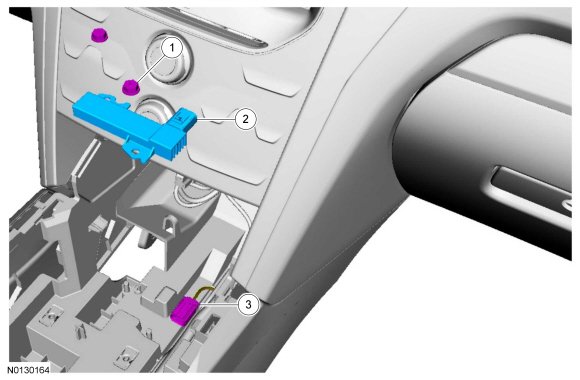

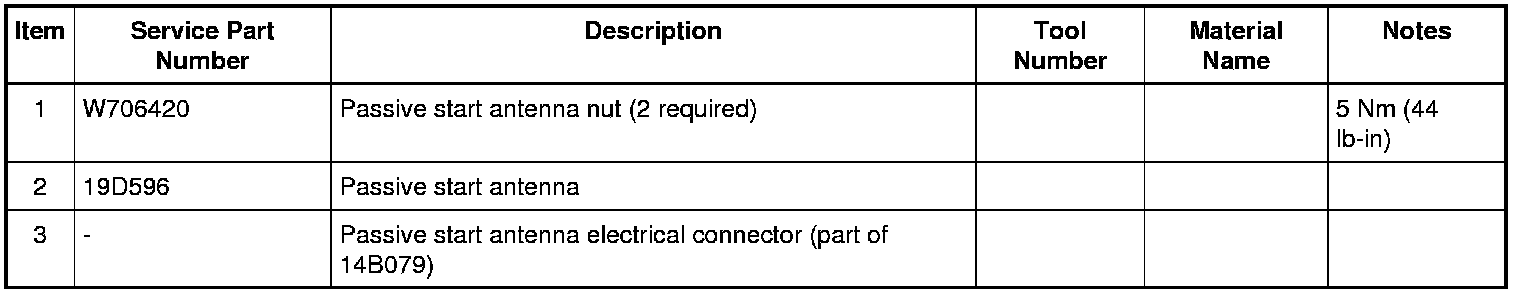

Exploded View










Removal

1. Remove the selector lever. REFER to Selector Lever .

2. Remove the 2 front passive start antenna nuts.
- To install, tighten to 5 Nm (44 lb-in).

3. Disconnect the front passive start antenna electrical connector and remove the front passive start antenna.

Installation

1. To install, reverse the removal procedure.
