Passive Start Antenna - Center

Passive Start Antenna - Center

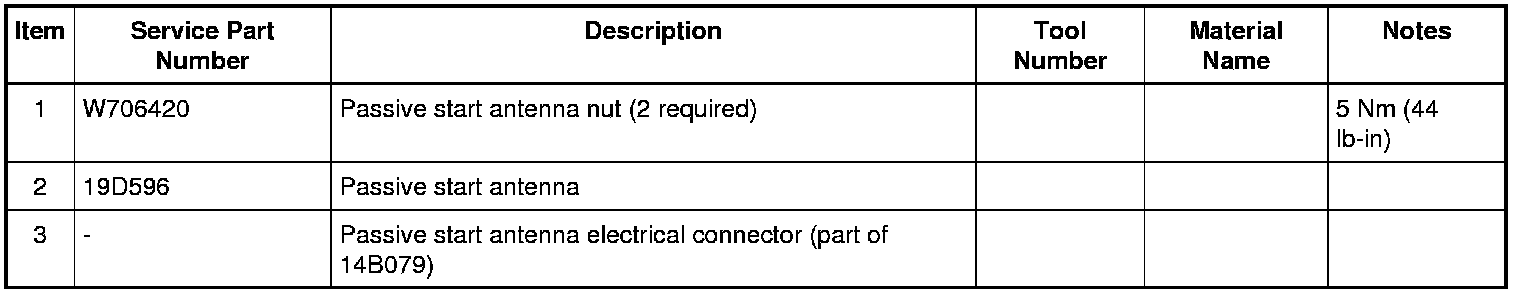

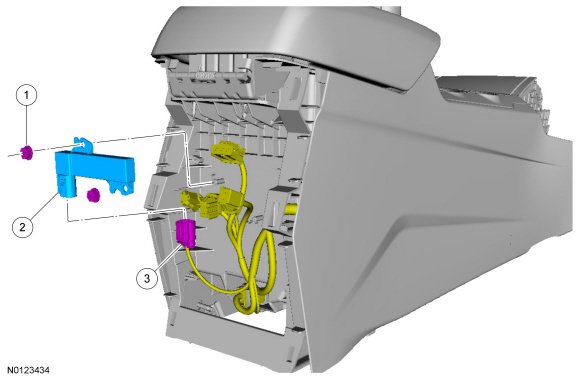

Exploded View










Removal

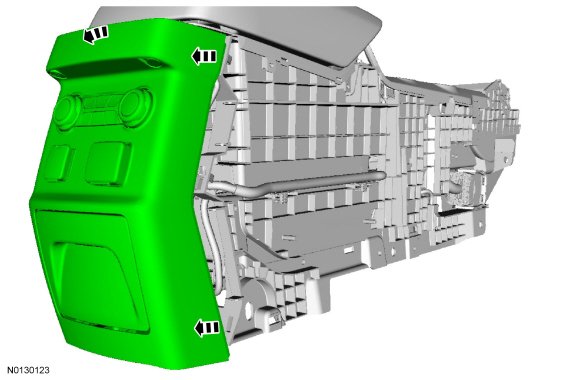

1. Release the clips and position the floor counsel rear trim panel aside.





2. Remove 2 center passive start antenna nuts.
- To install, tighten to 5 Nm (44 lb-in).

3. Disconnect the center passive start antenna electrical connector and remove the center passive start antenna.

Installation

1. To install, reverse the removal procedure.
