Passive Anti-Theft System (PATS) - without Intelligent Access (IA)

Passive Anti-Theft System (PATS) Transceiver

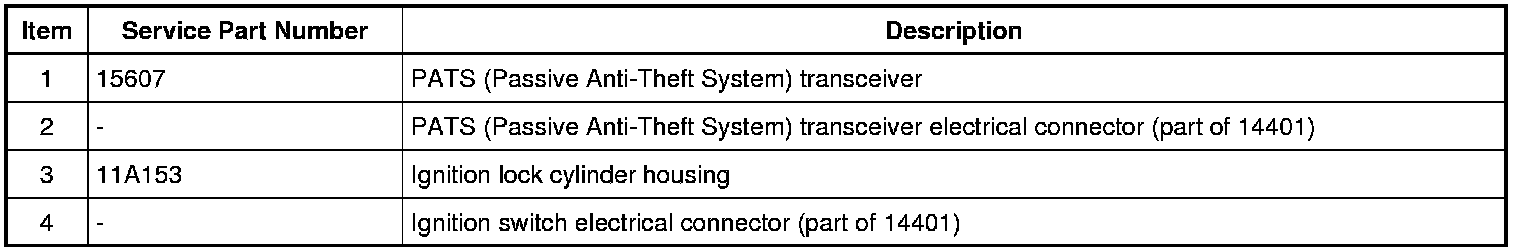

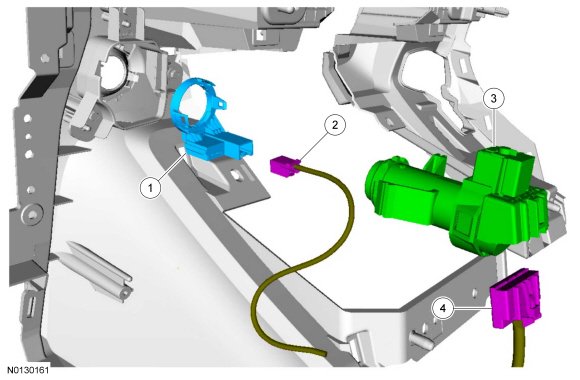

Exploded View










Removal

1. Remove the FDIM (Front Display Interface Module). REFER to Front Display Interface Module (FDIM) .

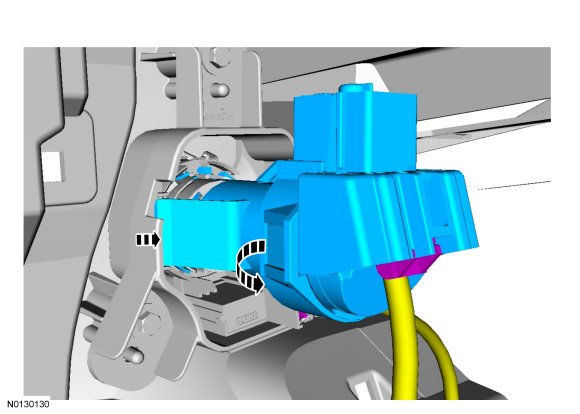

2. Release the retainer and remove the ignition lock cylinder housing.

- Rotate the ignition lock cylinder housing to the LH (Left Hand) side to remove.

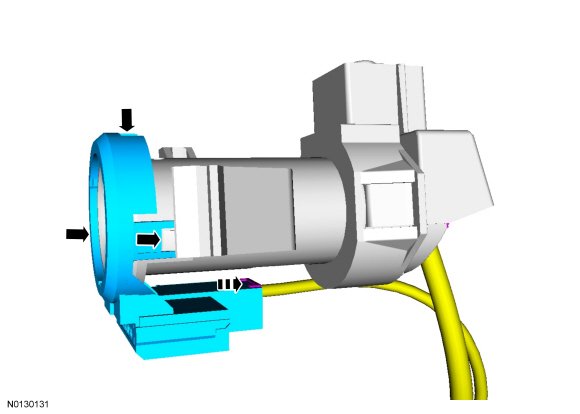

3. Release the 3 retainers and remove the PATS (Passive Anti-Theft System) transceiver from the ignition lock cylinder housing.

- Disconnect the electrical connector.






Installation

1. To install, reverse the removal procedure.
