Information and Entertainment Systems - Premium Plus

Antenna

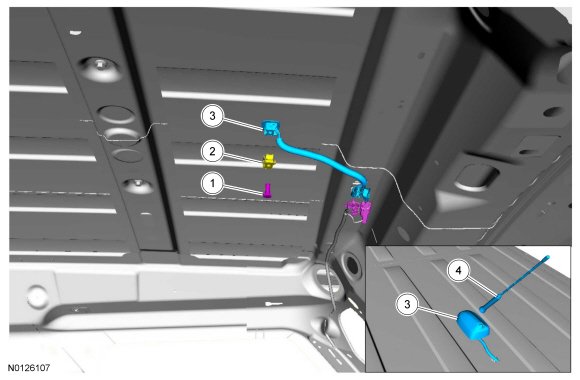

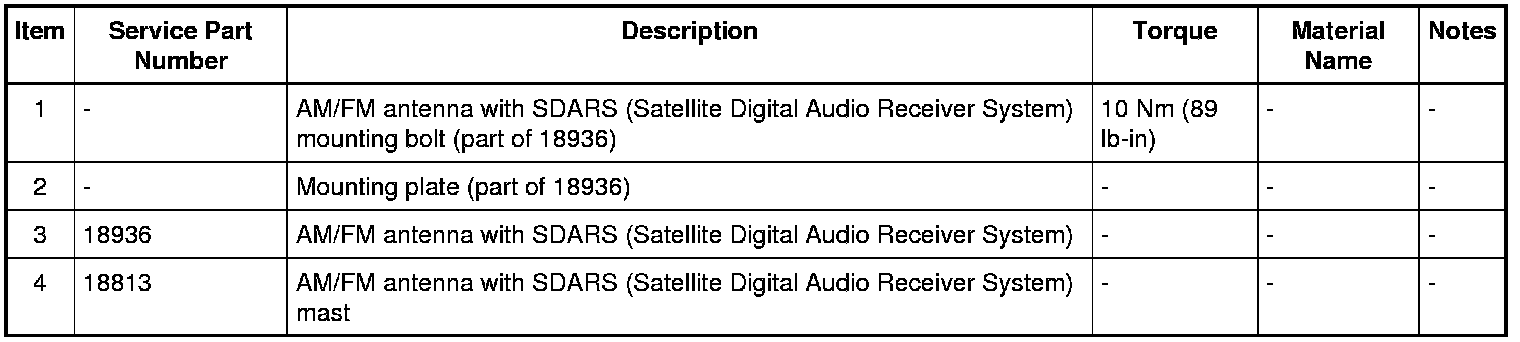

Exploded View










Removal

1. Remove the LH (Left Hand) and RH (Right Hand) D-pillar trim panel. REFER to D-Pillar Trim Panel.

2. Remove the LH (Left Hand) and RH (Right Hand) C-pillar trim panel. REFER to Quarter Trim Panel - With Inflatable Safety Belts or REFER to Quarter Trim Panel - Without Inflatable Safety Belts .



3. Carefully lower the rear of the headliner.

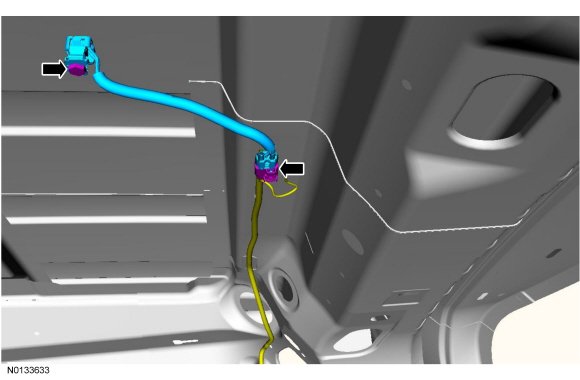

4. Remove the AM/FM antenna with SDARS (Satellite Digital Audio Receiver System) mounting bolt and disconnect the rear antenna cable connectors.
- To install, tighten to 10 Nm (89 lb-in).





5. Remove the AM/FM antenna with SDARS (Satellite Digital Audio Receiver System).

Installation

1. To install, reverse the removal procedure.
