Instrument Panel, Gauges and Warning Indicators

Diagnostic Routine BY

Diagnostic Overview

U0138:00

Normal Operation and Fault Conditions

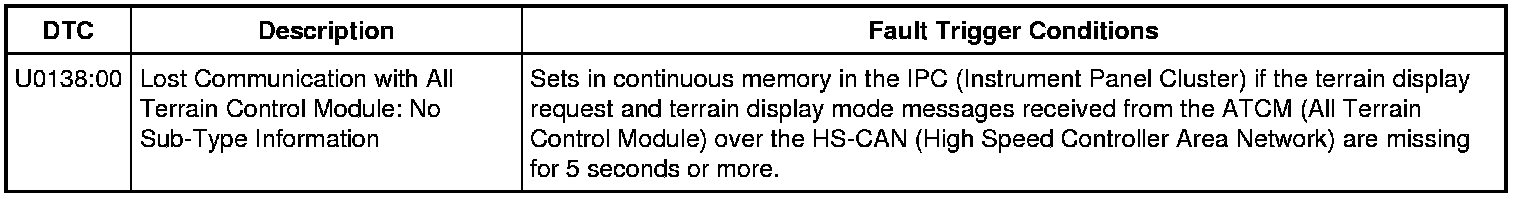

IPC (Instrument Panel Cluster) DTC Fault Trigger Conditions







Pinpoint Test

1. VERIFY THE CUSTOMER CONCERN

1. Ignition ON.

2. Verify there is an observable symptom present.

Is an observable symptom present?








2. CHECK THE COMMUNICATION NETWORK

1. Ignition ON.

2. Using a scan tool, perform a network test.

3. Carry out the network test.

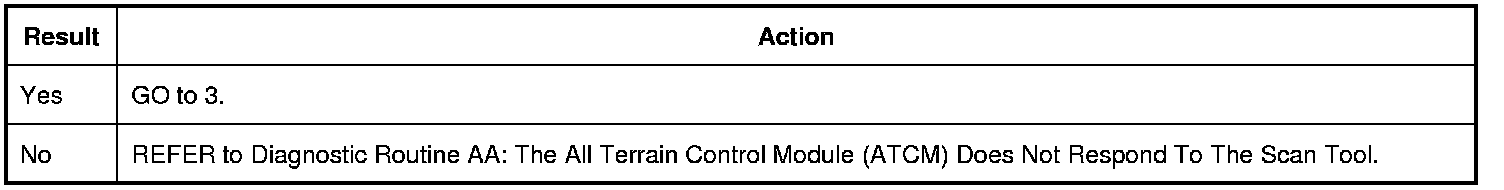

Does the ATCM (All Terrain Control Module) module pass the network test?








3. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE IPC (Instrument Panel Cluster) SELF-TEST

1. Using a scan tool, perform the IPC (Instrument Panel Cluster) self-test.

Is DTC (Diagnostic Trouble Code) U3003:16 or DTC (Diagnostic Trouble Code) U3003:17 recorded?








4. RECHECK THE IPC (Instrument Panel Cluster) DTCs (Diagnostic Trouble Codes)

NOTE: If new modules were installed prior to the DTC (Diagnostic Trouble Code) being set, the module configuration can be incorrectly set during the PMI (Programmable Module Installation) or the PMI (Programmable Module Installation) may not have been carried out.

1. Clear the DTCs (Diagnostic Trouble Codes).

2. Wait 10 seconds.

3. Repeat the IPC (Instrument Panel Cluster) self-test.

Is DTC (Diagnostic Trouble Code) U0138:00 still present?








5. CHECK FOR DTC (Diagnostic Trouble Code) U0138:00 SET IN OTHER MODULES

1. Clear all DTCs (Diagnostic Trouble Codes).

2. Ignition OFF.

3. Ignition ON.

4. Wait 10 seconds.

5. Using the scan tool, perform self-test.

6. Retrieve the continuous memory DTCs (Diagnostic Trouble Codes) from all modules.

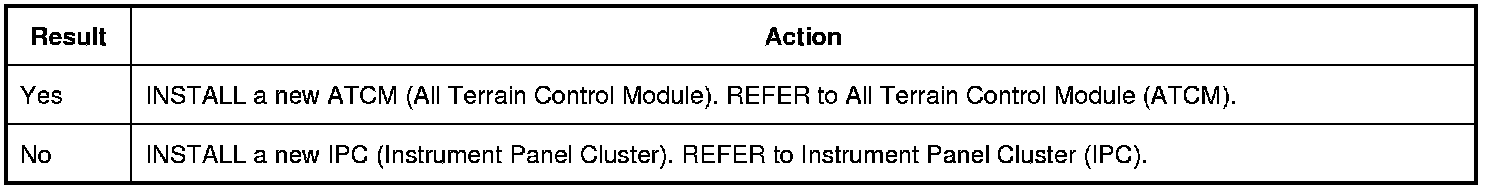

Is DTC (Diagnostic Trouble Code) U0138:00 set in the ABS (Anti-Lock Brake System) module?
