Trunk / Liftgate

DTC Chart: Liftgate Or Trunk Module (LTM)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

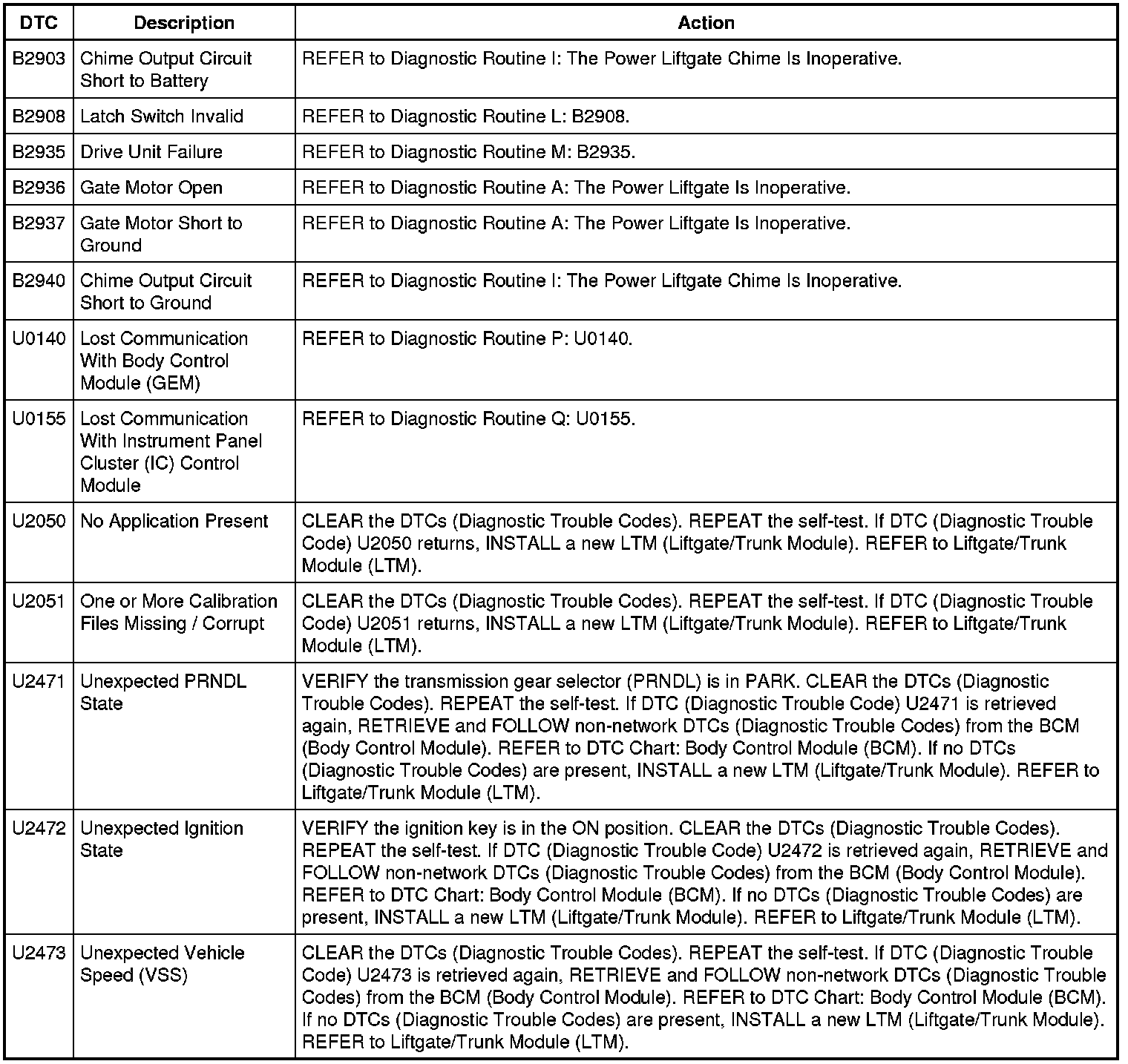

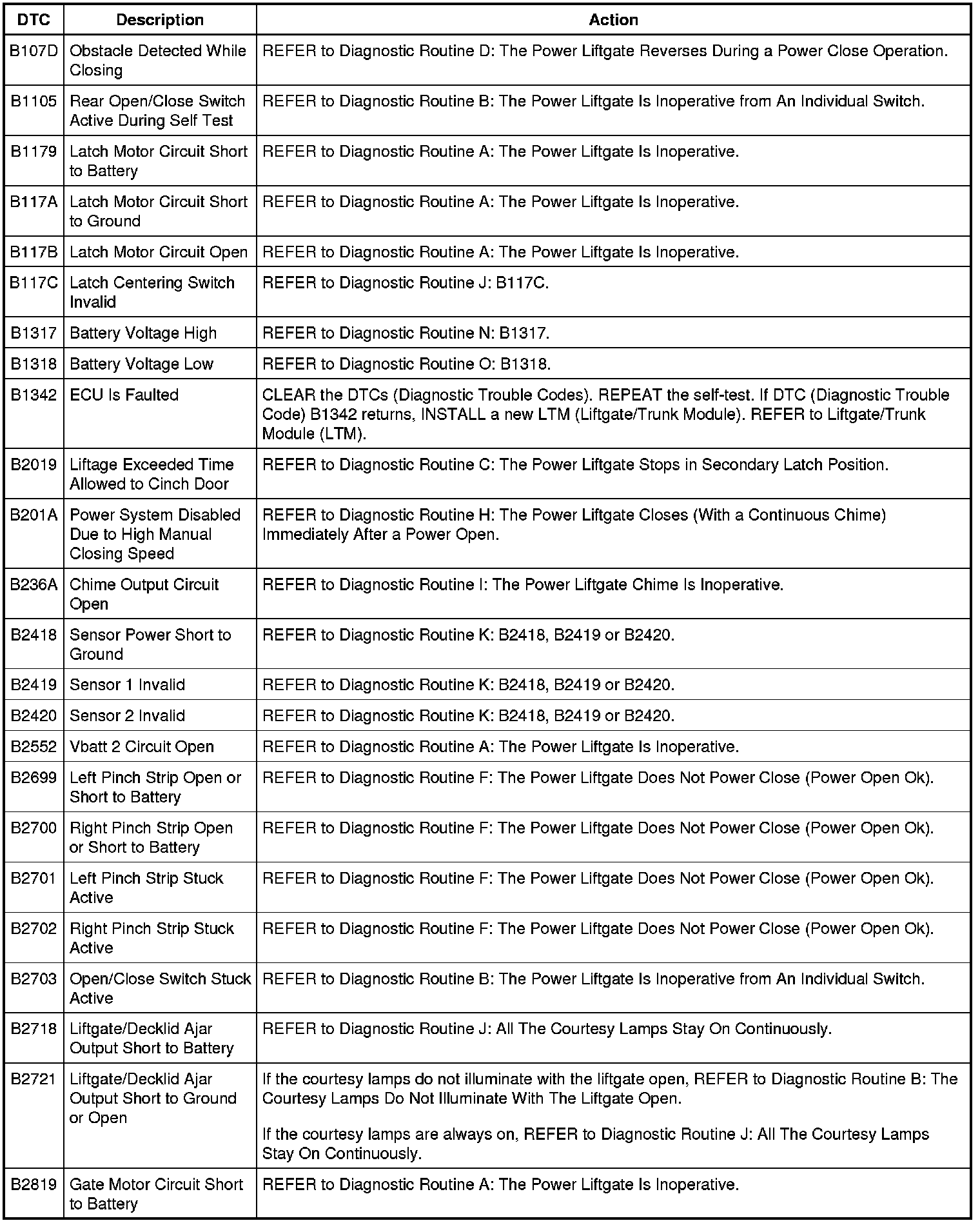

LTM (Liftgate/Trunk Module) DTC Chart
