DTC Chart: Front Lighting Control Module (FLM)

DTC Chart: Front Lighting Control Module (FLM)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

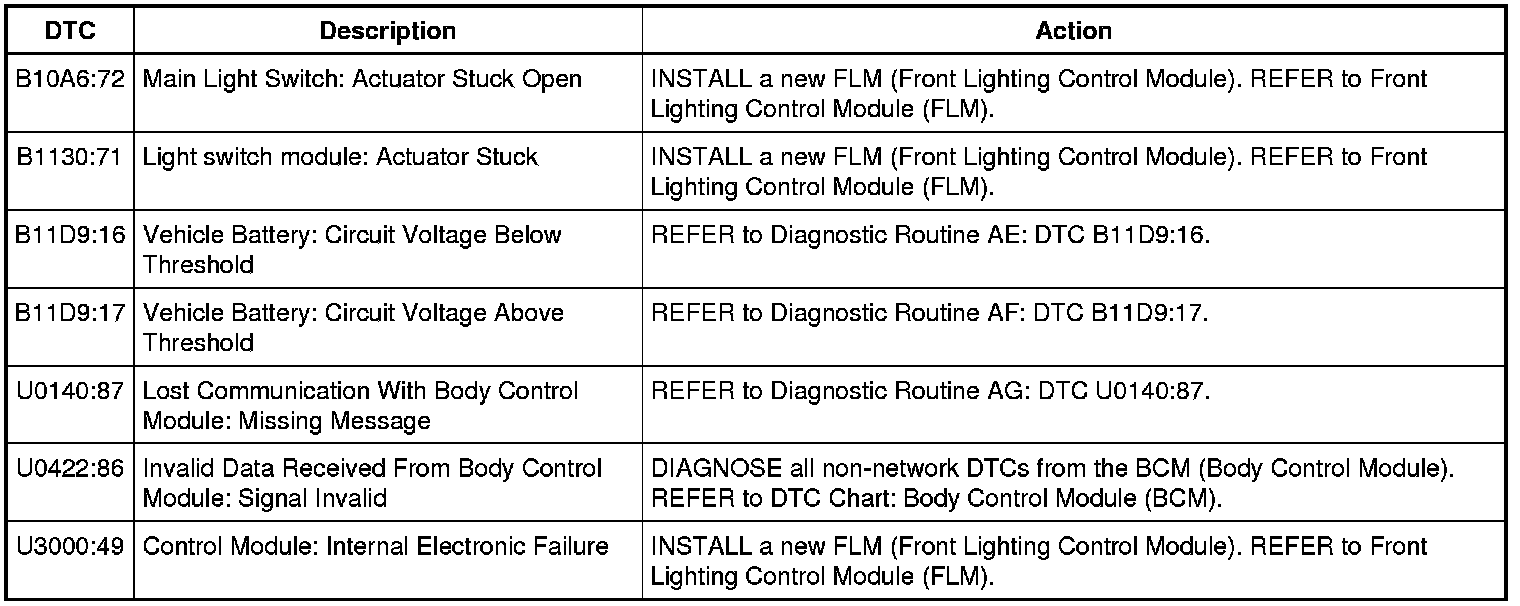

FLM (Front Lighting Control Module) DTC Chart
