DTC Chart: Head Up Display (HUD) Module

DTC Chart: Head Up Display (HUD) Module

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

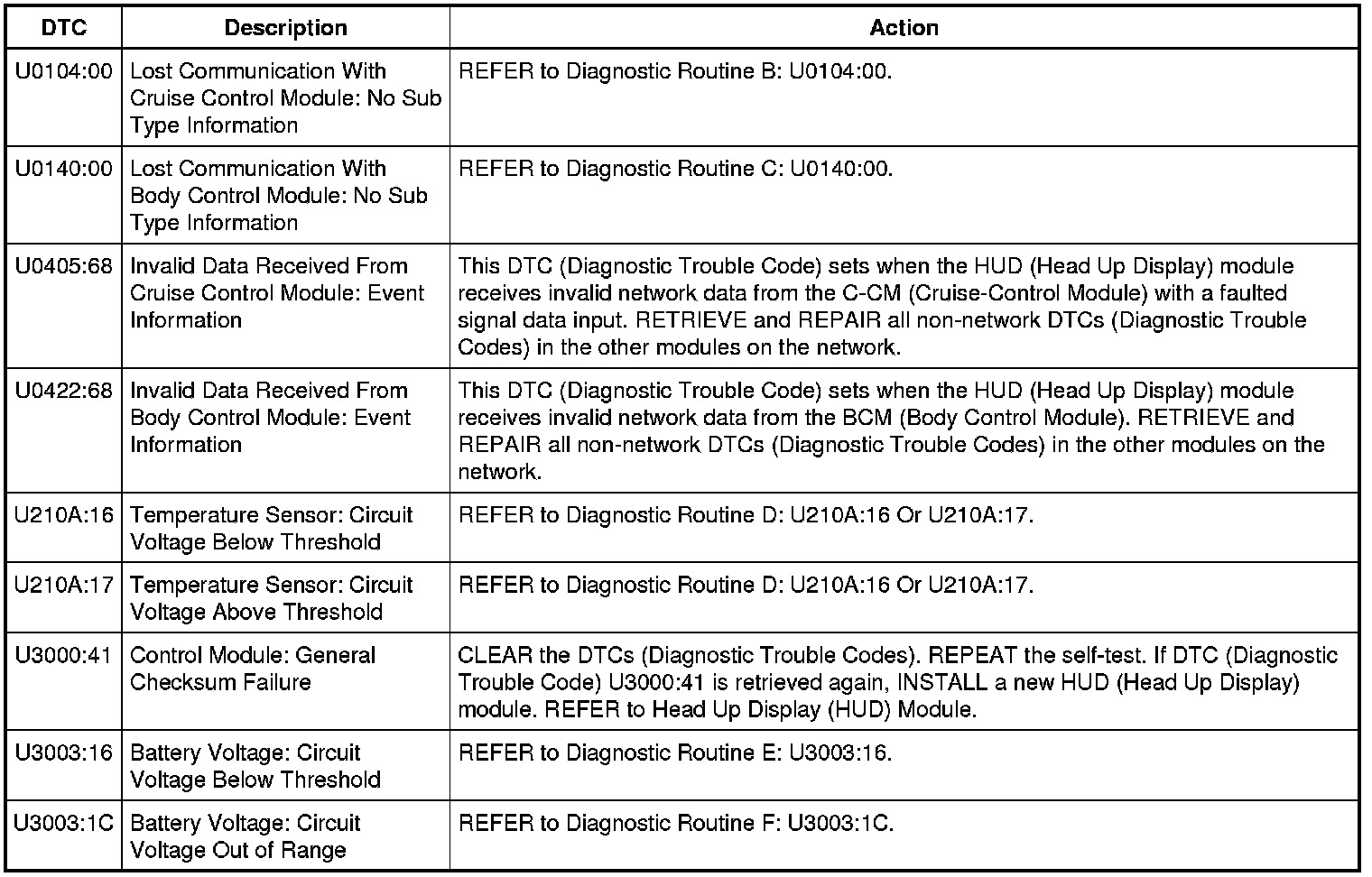

DTC Chart
