DTC Chart: Front Control Display Interface Module (FCDIM) - Premium

DTC Chart: Front Control Display Interface Module (FCDIM) - Premium

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

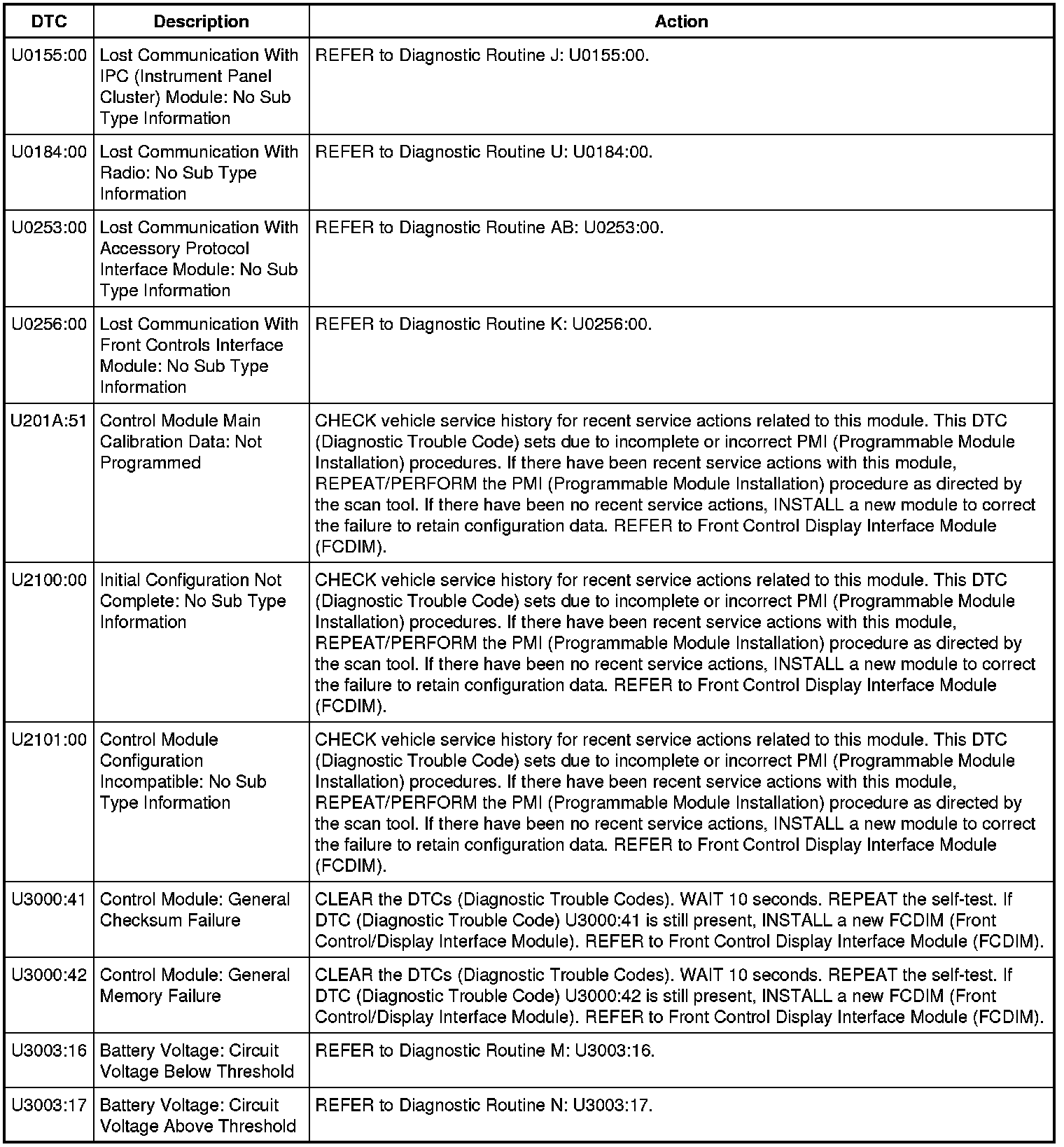

FCDIM (Front Control/Display Interface Module) DTC Chart
