DTC Chart: Audio Control Module (ACM) - Premium




DTC Chart: Audio Control Module (ACM) - Premium

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

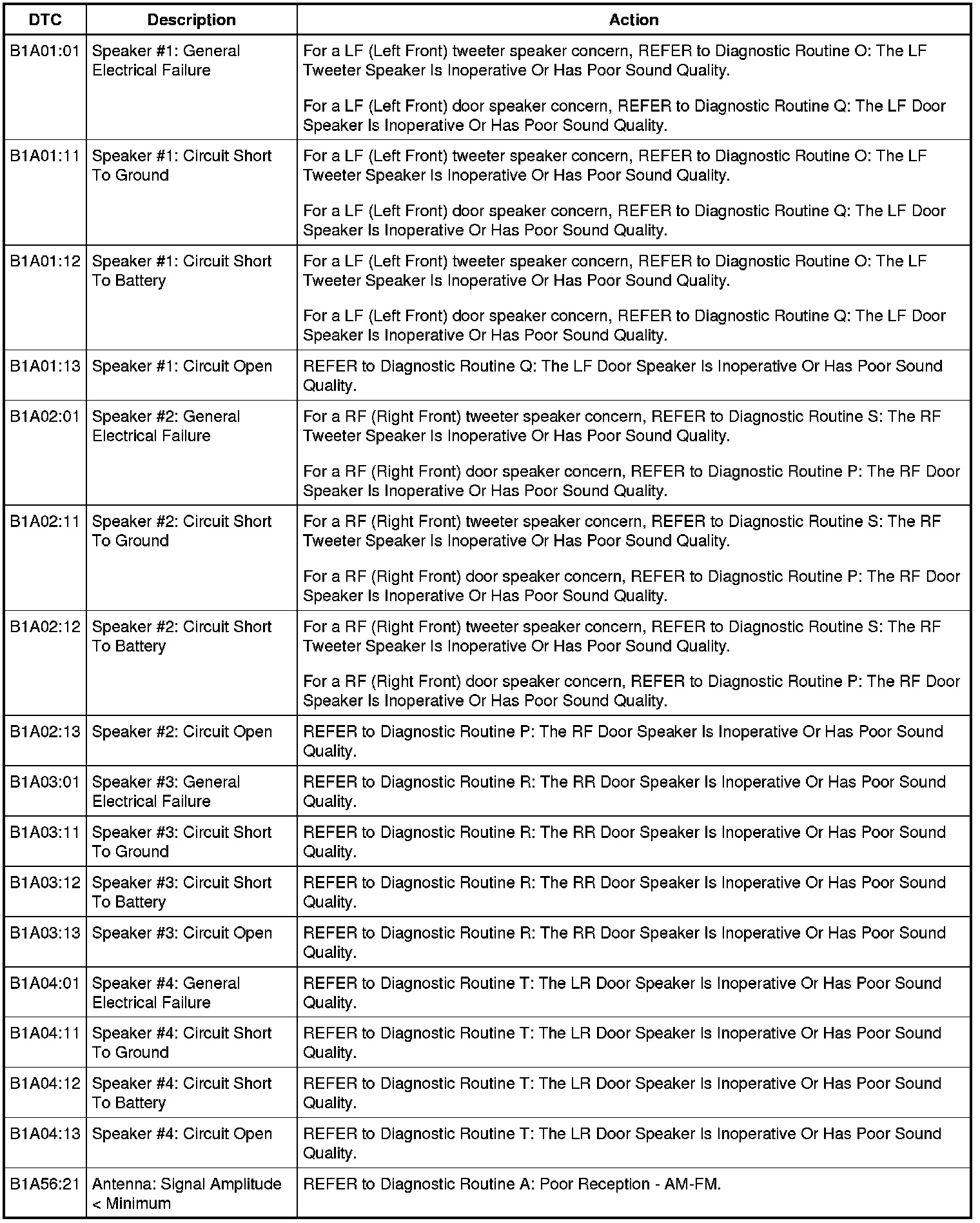

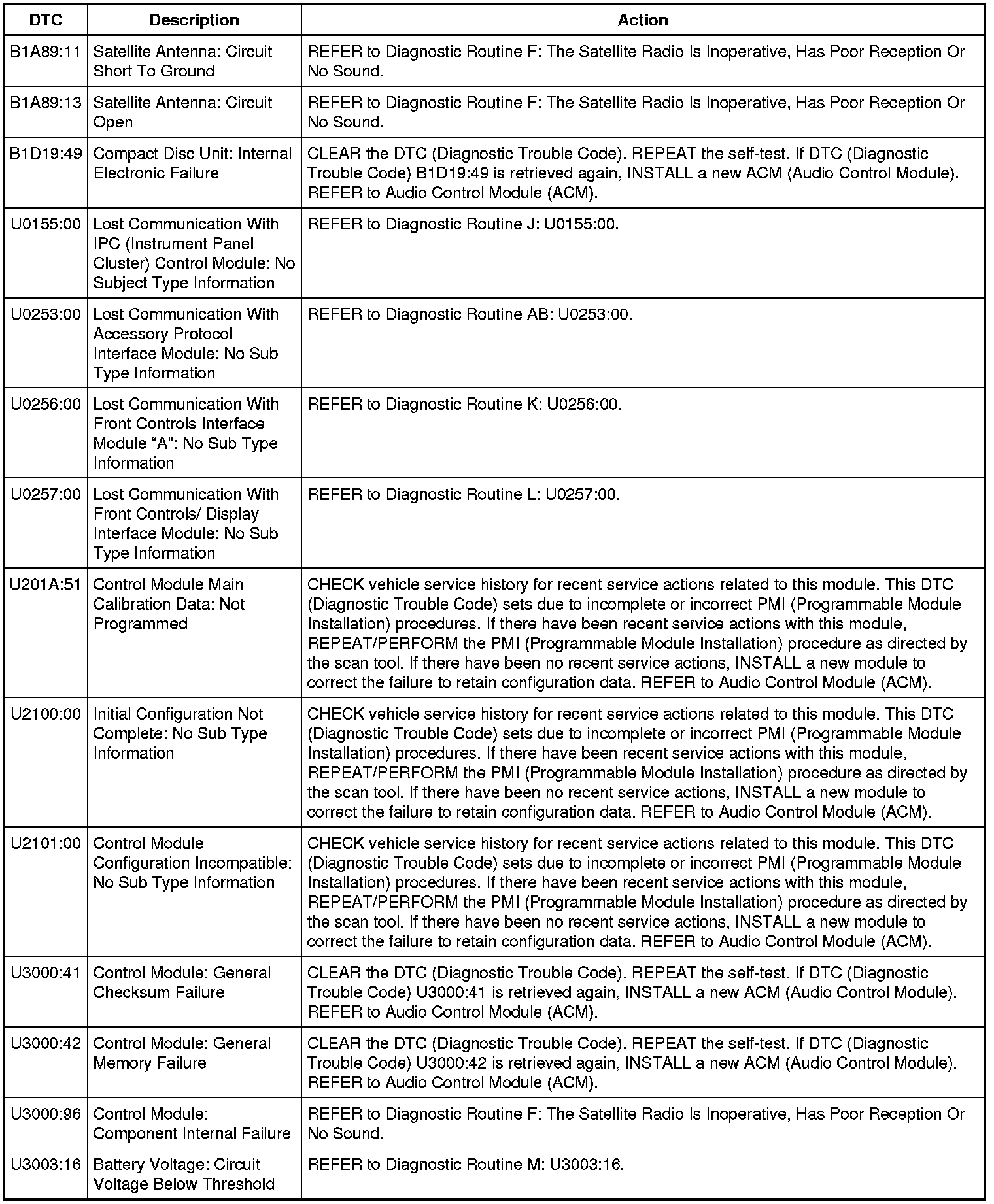

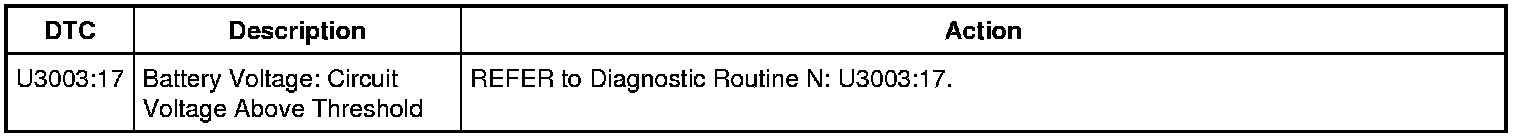

ACM (Audio Control Module) DTC Chart
