FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Specifications
>>
Capacity Specifications
>>
Engine
>>
System Specifications
System Specifications

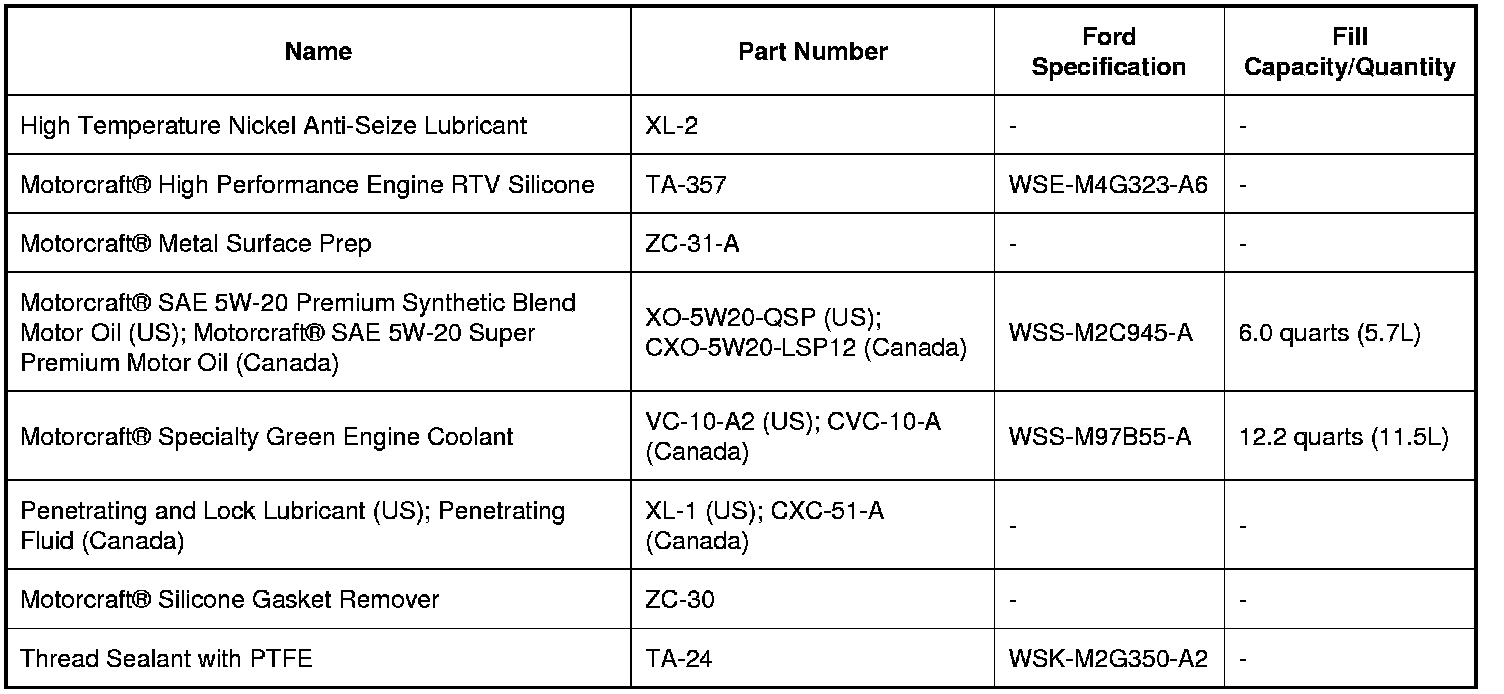

Engine - 3.5L Ti-VCT
Material(s)
