Timing Cover: Service and Repair

Engine Front Cover

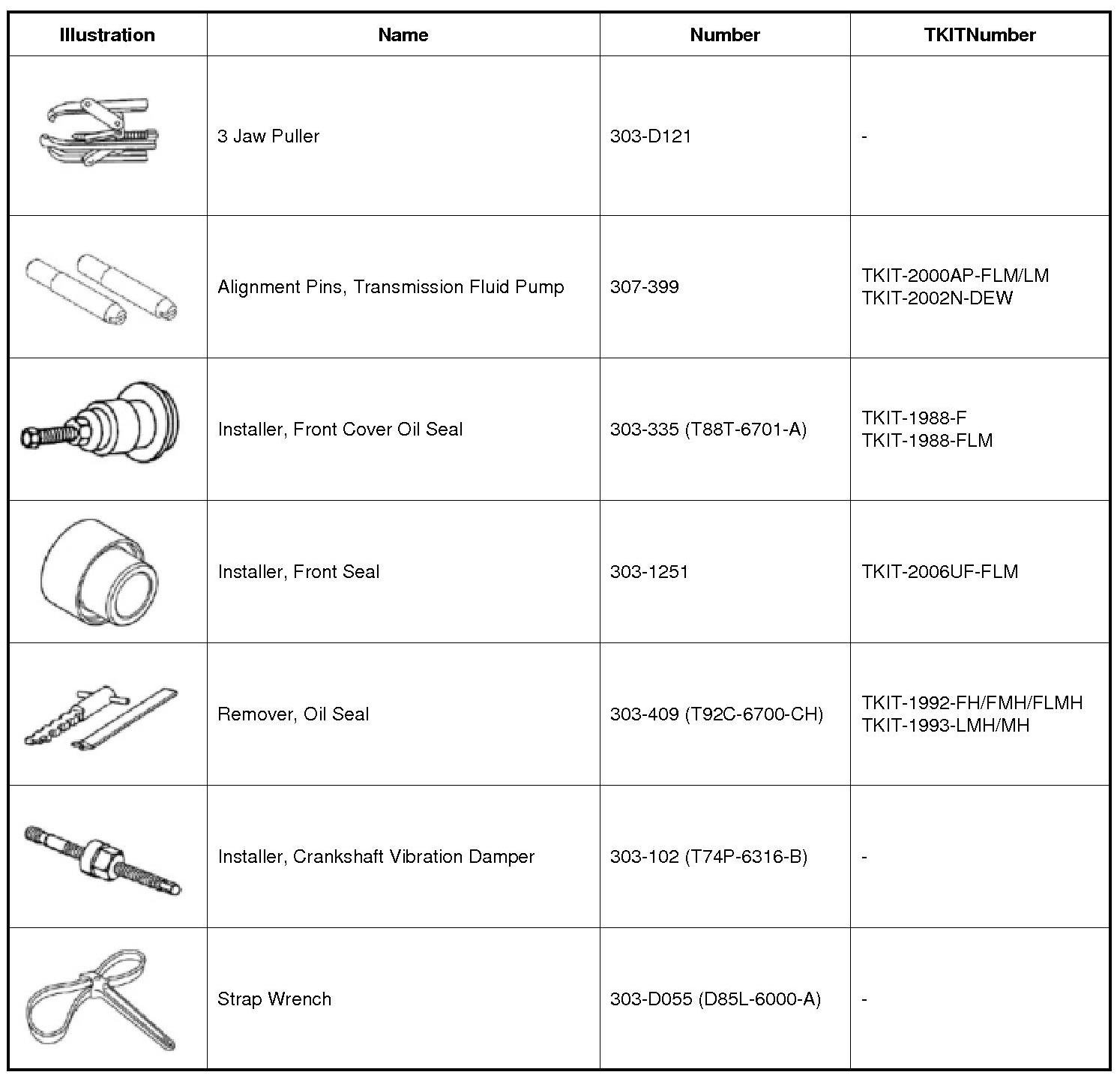

Special Tool(s)

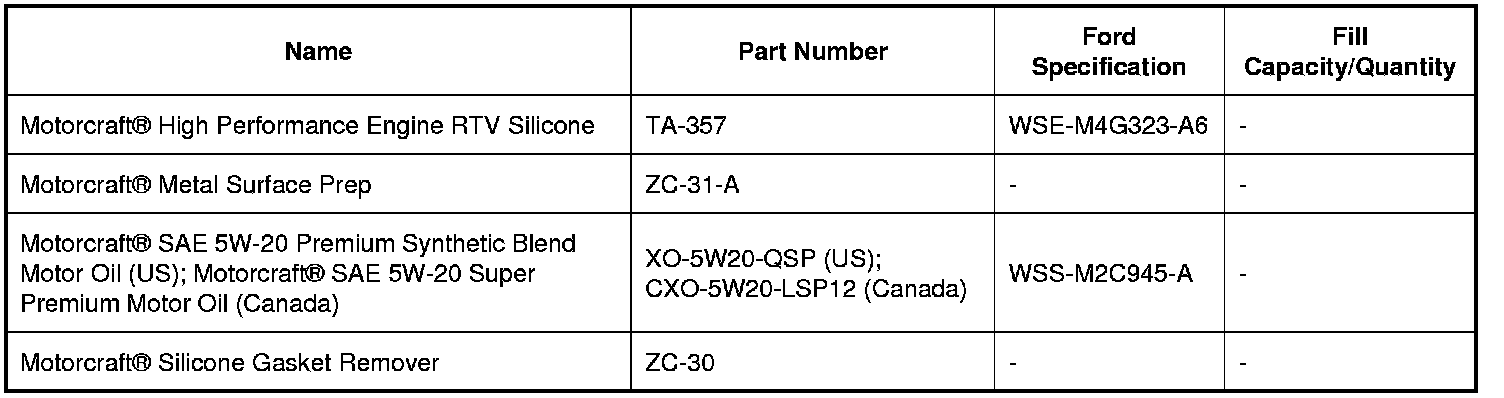

Material(s)

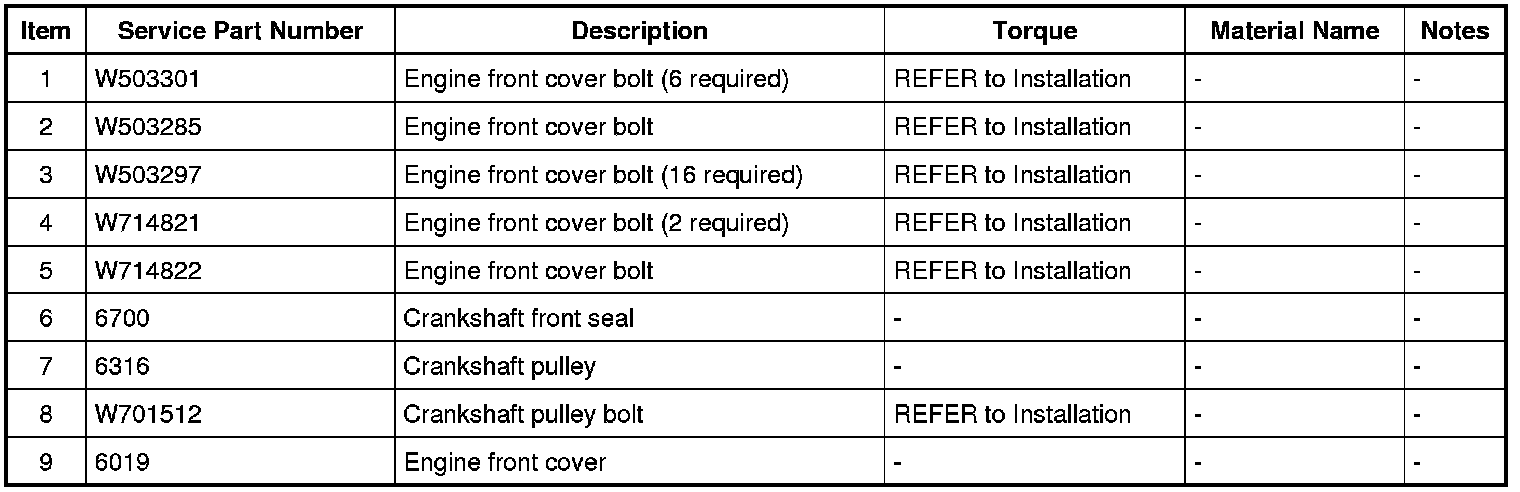

Exploded View










Removal

NOTICE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting .

2. Recover the A/C system. REFER to Air Conditioning (AC) System Recovery, Evacuation and Charging .

3. Remove the engine appearance cover.

4. Release the fuel system pressure. REFER to Fuel System Pressure Release .

5. Disconnect the battery ground cable. REFER to Battery Disconnect .

6. Remove the RH (Right Hand) fender splash shield. REFER to Fender Splash Shield .

7. Remove the 3 twist lock retainers and the underbody air duct.






8. Remove the crankshaft pulley and seal. REFER to Crankshaft Front Seal .

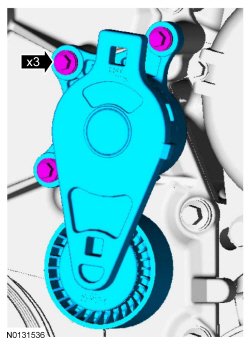

9. Remove the 3 bolts and the accessory drive belt tensioner.





10. Remove the drain plug and drain the engine oil.

11. Install the oil drain plug.
- Tighten to 27 Nm (20 lb-ft).

12. If equipped, detach the engine block heater harness from the radiator support, the A/C (Air Conditioning) suction tube and the engine wiring harness.

13. Remove the LH (Left Hand) and RH (Right Hand) valve covers. REFER to Valve Cover - LH and REFER to Valve Cover - RH .

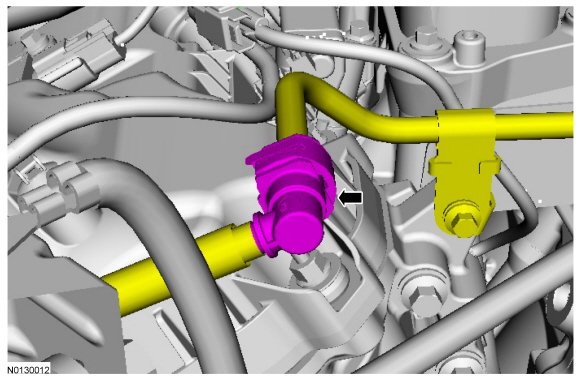

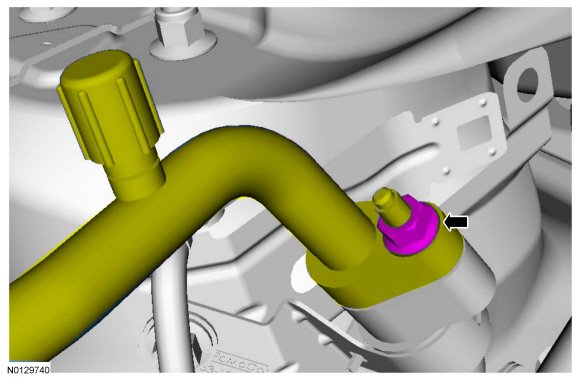

14. Remove the nut and disconnect the A/C (Air Conditioning) suction hose and position the hose aside. Discard the O-ring seal.

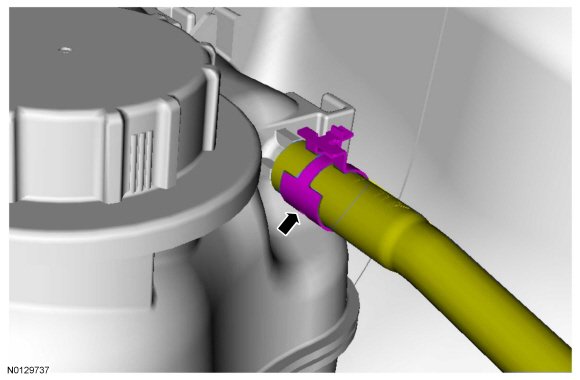

15. Remove the vent hose from the degas bottle and position hose aside.





16. If equipped, disconnect the degas bottle coolant hose from the engine coolant tube.





17. Disconnect the fuel supply tube from the fuel rail. REFER to Quick Connect Coupling .

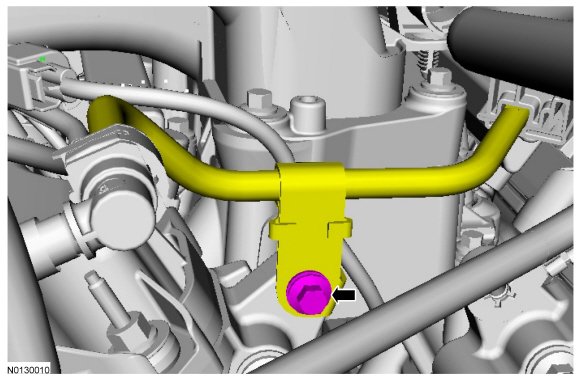

18. Remove the bolt from the fuel supply tube to the engine front cover. Position fuel supply tube aside.





19. Position a floor jack with a block of wood under the front of the oil pan.





20. Remove the 4 engine mount nuts and the 3 engine mount bolts and remove the mount.





21. NOTE: It may be necessary to use the floor jack and lower the engine slightly to gain enough access to remove the bolt.
Remove the lower M10 engine front cover bolt.






22. NOTE: It may be necessary to use the floor jack and raise the engine slightly to gain enough access to remove the bolts.
Remove the 2 M10 engine front cover bolts.

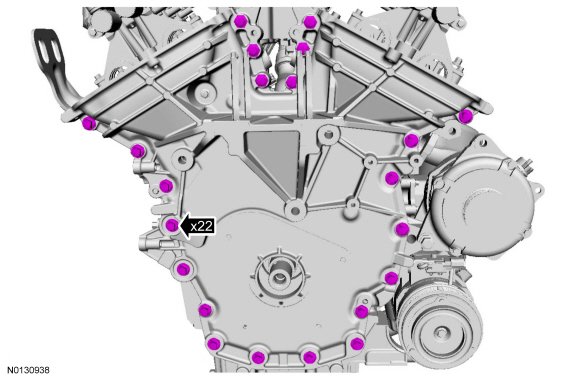

23. Remove the 22 M8 engine front cover bolts.





24. Remove the M6 engine front cover bolt.





25. Using a suitable pry tool, locate the 7 pry pads shown and pry the engine front cover loose and remove.





Installation

1. NOTICE: Only use a 3M Roloc(R) Bristle Disk (2-in white, part number 07528) to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.

Clean the engine front cover using a 3M Roloc(R) Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15,000 rpm. Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

2. NOTICE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.

NOTICE: Do not use wire brushes, power abrasive discs or 3M Roloc(R) Bristle Disk (2-in white part number 07528) to clean the sealing surfaces of engine block, cylinder heads, and oil pan. These tools can cause contamination that will cause premature engine failure. Remove all traces of the gasket.

Clean the sealing surfaces of the cylinder heads, the cylinder block and the oil pan in the following sequence.

1. Remove any large deposits of silicone or gasket material.

2. Apply Motorcraft(R) Silicone Gasket Remover and allow to set for several minutes.

3. Remove the Motorcraft(R) Silicone Gasket Remover. A second application of Motorcraft(R) Silicone Gasket Remover may be required if residual traces of silicone or gasket material remain.

4. Apply Motorcraft(R) Metal Surface Prep to remove any remaining traces of oil or coolant and to prepare the surfaces to bond. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.

3. NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.
Install 307-399.





4. NOTICE: Failure to use Motorcraft(R) High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The engine front cover and bolts 7, 8, 15, 17, 18, 21 and 22 must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use Motorcraft(R) Silicone Gasket Remover and Motorcraft(R) Metal Surface Prep. Failure to follow this procedure can cause future oil leakage.

Apply a 3 mm (0.1181 in) bead of Motorcraft(R) High Performance Engine RTV Silicone to the sealing surface of the front cover.

- Apply a 5.5 mm (0.22 in) bead of Motorcraft(R) High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in 5 places as indicated.






5. NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.
Install the engine front cover and bolts 7, 8, 15, 17, 18, 21 and 22.
- Tighten in sequence shown to 3 Nm (27 lb-in).





6. Remove 307-399.





7. Install the M6 engine front cover bolt. Do not tighten at this time.





8. Install the 2 upper M10 engine front cover bolts. Do not tighten the bolts at this time.





9. NOTE: It may be necessary to use the floor jack and lower the engine slightly to gain enough access to install the bolt.
Install the lower M10 bolt. Do not tighten at this time.





10. Install the remaining engine front cover bolts. Tighten all of the engine front cover bolts in the sequence shown in 7 stages.
- Stage 1: Tighten bolts 1 thru 22 to 10 Nm (89 lb-in).
- Stage 2: Tighten bolts 23 thru 25 to 15 Nm (133 lb-in).
- Stage 3: Tighten bolt 26 to 10 Nm (89 lb-in).
- Stage 4: Loosen bolt 26 one full turn.
- Stage 5: Tighten bolts 23 thru 25 to 30 Nm (22 lb-ft) plus an additional 90 degrees.
- Stage 6: Tighten bolts 1 thru 22 to 20 Nm (177 lb-in) plus an additional 45 degrees.
- Stage 7: Tighten bolt 26 to 10 Nm (89 lb-in) plus an additional 45 degrees.





11. Install the engine mount, 4 engine mount nuts and 3 engine mount bolts hand tight.





12. Tighten the 3 engine mount bolts.
- Tighten to 90 Nm (66 lb-ft).

13. Tighten the 4 engine mount nuts.
- Tighten to 63 Nm (46 lb-ft).

14. Connect the fuel supply tube to the fuel rail. REFER to Quick Connect Coupling .





15. Install the bolt from the fuel supply tube to the engine front cover.
- Tighten to 10 Nm (89 lb-in).





16. If equipped, connect the degas bottle coolant hose to the engine coolant tube.





17. Install the vent hose to the degas bottle.





18. Using a new O-ring seal, connect the A/C (Air Conditioning) pressure tube fitting and install the nut.
- Tighten to 8 Nm (71 lb-in).





19. Install the LH (Left Hand) and RH (Right Hand) valve covers. REFER to Valve Cover - LH and REFER to Valve Cover - RH .

20. If equipped, attach the engine block heater harness to the radiator support, the A/C (Air Conditioning) suction tube and the engine wiring harness.

21. Install the accessory drive belt tensioner and the 3 bolts.
- Tighten to 11 Nm (97 lb-in).





22. Install the crankshaft pulley and seal. REFER to Crankshaft Front Seal .

23. Install the underbody air duct and the 3 twist lock retainers.





24. Install the RH (Right Hand) fender splash shield. REFER to Fender Splash Shield .

25. Connect the battery ground cable. REFER to Battery Disconnect .

26. Install the engine appearance cover.

27. Evacuate and recharge the A/C system. REFER to Air Conditioning (AC) System Recovery, Evacuation and Charging .
