Radiator Cooling Fan Motor: Service and Repair

Cooling Fan Motor and Shroud - 3.5L Ti-VCT

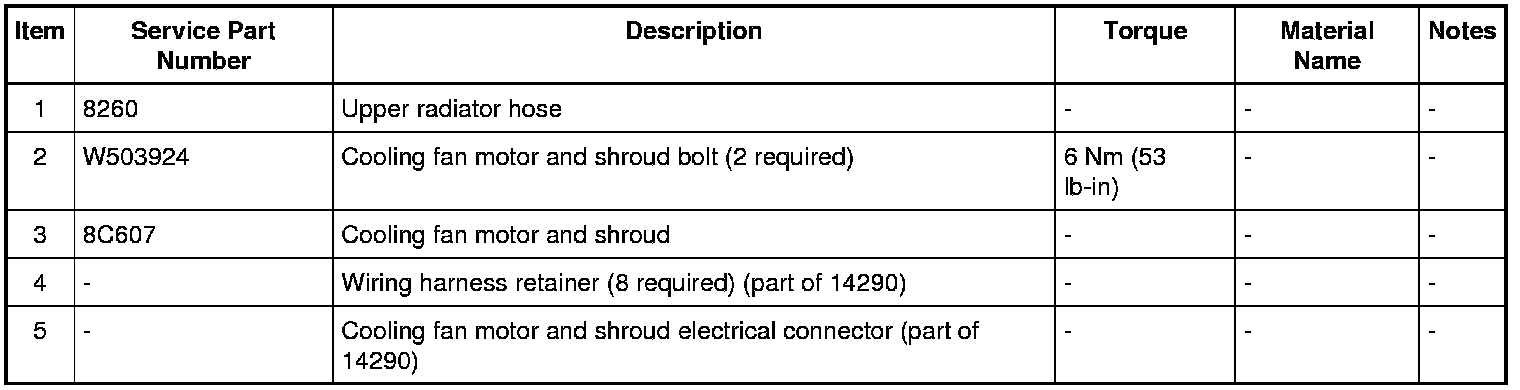

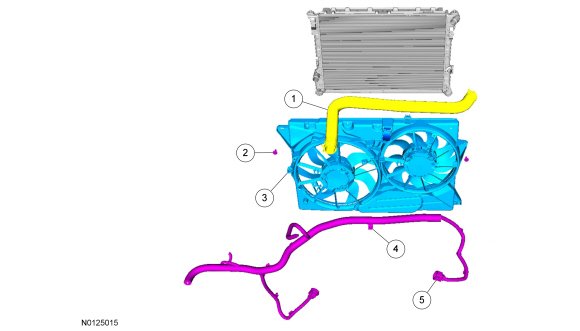

Exploded View










Removal

1. Remove the ACL (Air Cleaner). REFER to Intake Air System Components - Exploded View .

2. If equipped, detach the block heater wiring harness from the engine wiring harness.

3. Disconnect the cooling fan electrical connector.

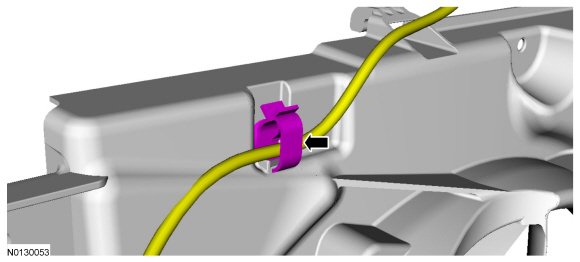

4. Detach the 8 wiring harness retainers.

5. Detach the hood latch cable from the clip on the cooling fan motor and shroud.





6. Detach the upper radiator hose from the upper radiator hose support.

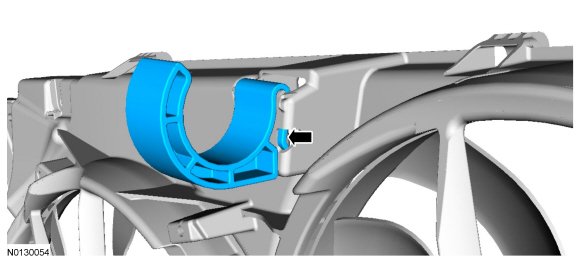

7. Release the tab through the access hole and remove the upper radiator hose support.





8. Remove the 2 bolts and the cooling fan motor and shroud.

Installation

1. Position the cooling fan motor and shroud and install the 2 bolts.
- Tighten to 6 Nm (53 lb-in).

2. Install the upper radiator hose support.





3. Attach the upper radiator hose to the support.

4. Attach the hood release cable to the clip on the cooling fan motor and shroud.





5. Attach the 8 wiring harness retainers.

6. Connect the cooling fan electrical connector.

7. If equipped, attach the block heater wiring harness to the engine wiring harness.

8. Install the ACL (Air Cleaner). REFER to Intake Air System Components - Exploded View .
