Fender

Fender

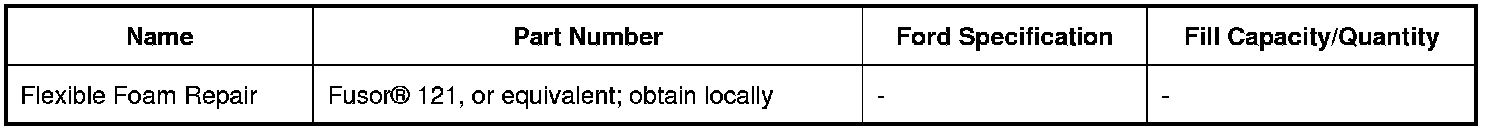

Material(s)






Removal

1. Remove the headlamp assembly. REFER to Headlamp Assembly .

2. Remove the cowl panel grille. REFER to Cowl Panel Grille .

3. NOTE: RH (Right Hand) shown, LH (Left Hand) similar.

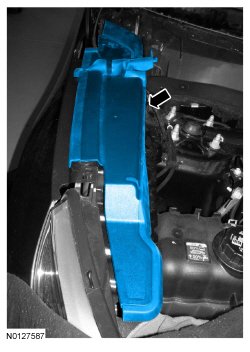

Using a plastic trim removal tool, carefully remove the cowl panel grille filler panel beginning at the rear and working forward.





4. Remove the fender splash shield. REFER to Fender Splash Shield .

5. NOTE: LH (Left Hand) shown, RH (Right Hand) similar.
Remove the 2 fender-to-rocker panel bolts.





6. NOTE: LH (Left Hand) shown, RH (Right Hand) similar.
Remove the fender-to-A-pillar bolt.





7. Remove the windshield applique. REFER to Applique - Windshield .

8. NOTE: LH (Left Hand) shown, RH (Right Hand) similar.
Remove the fender-to-cowl panel bolt.





9. NOTE: LH (Left Hand) shown, RH (Right Hand) similar.
Remove the 2 front fender-to-apron bolts.





10. NOTE: LH (Left Hand) shown, RH (Right Hand) similar.

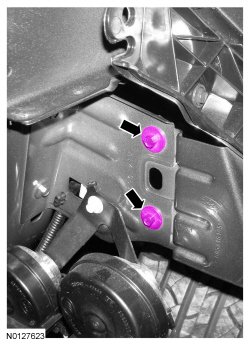

Remove the 2 top fender-to-apron bolts.





11. NOTE: LH (Left Hand) shown, RH (Right Hand) similar.

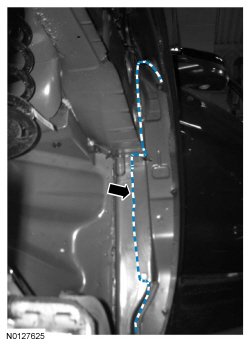

Carefully cut the foam sealer between the fender, fender baffle and the A-pillar.





12. Remove the fender.

Installation

1. Position the fender and A-pillar baffle to the vehicle.

2. NOTE: LH (Left Hand) shown, RH (Right Hand) similar.
Loosely install the 2 top fender-to-apron bolts.





3. NOTE: LH (Left Hand) shown, RH (Right Hand) similar.
Loosely install the 2 front fender-to-apron bolts.





4. NOTE: LH (Left Hand) shown, RH (Right Hand) similar.
Loosely install the fender-to-cowl bolt.





5. NOTE: LH (Left Hand) shown, RH (Right Hand) similar.
Loosely install the 2 fender-to-rocker panel bolts.





6. Adjust the fender to specification. REFER to Component Description .

7. NOTE: LH (Left Hand) shown, RH (Right Hand) similar.

Apply flexible foam repair material to the fender, fender baffle and A-pillar seam.





8. Tighten all fender fasteners.
- Tighten all to 12 Nm (106 lb-in).

9. Install the fender splash shield. REFER to Fender Splash Shield .

10. Install the windshield applique. REFER to Applique - Windshield .

11. NOTE: RH (Right Hand) shown, LH (Left Hand) similar.
Install the cowl panel grille filler panel.





12. Install the cowl panel grille. REFER to Cowl Panel Grille .
