DTC Chart: All Terrain Control Module (ATCM)

DTC Chart: All Terrain Control Module (ATCM)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

NOTE: Network DTCs (Diagnostic Trouble Codes) (U-codes) are often a result of intermittent concerns such as damaged wiring or low battery voltage occurrences. Lost Communication DTCs (Diagnostic Trouble Codes) set in a module that is reporting a communication fault from another module on the data bus. The module that reports the fault is not the problem module.

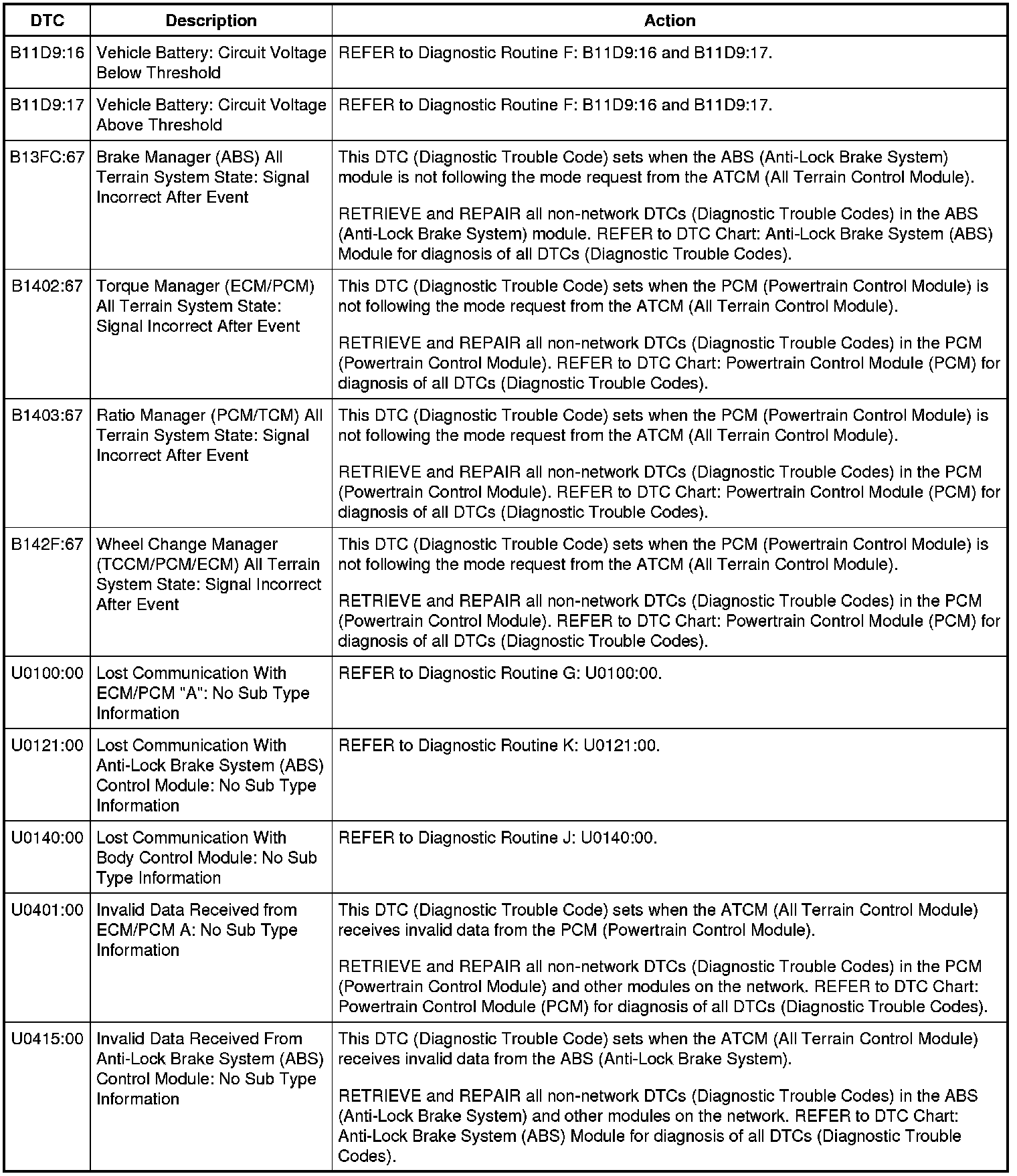

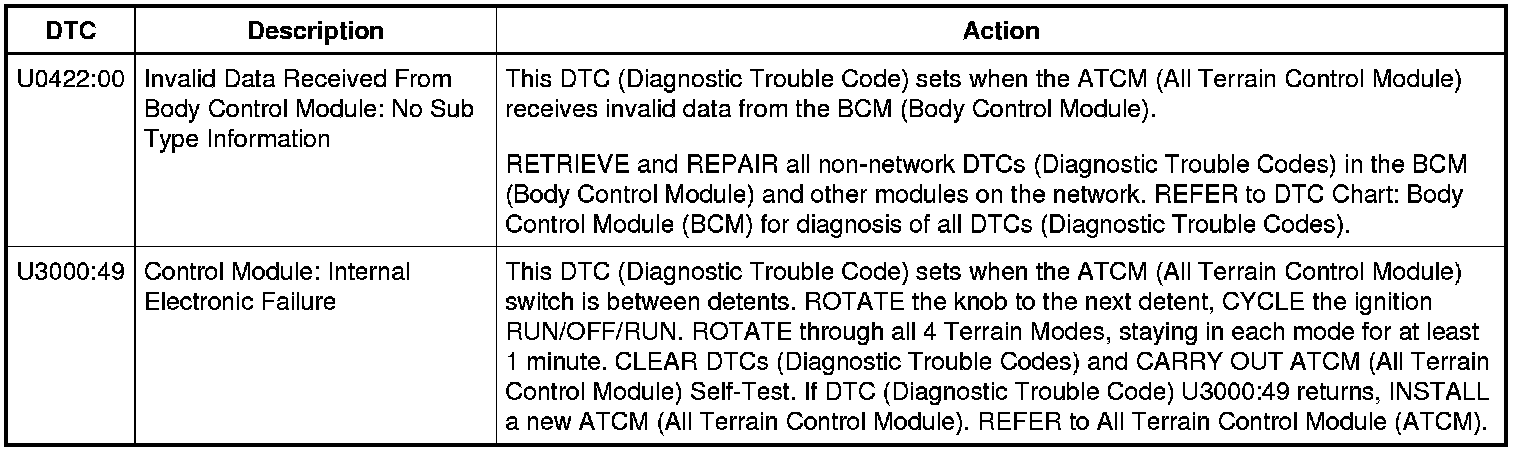

ATCM (All Terrain Control Module) DTC Chart
