Home >> Ford Truck >> 2012 >> Escape 2WD L4-2.5L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test TF: Generator Shutdown

Test TF: Generator Shutdown

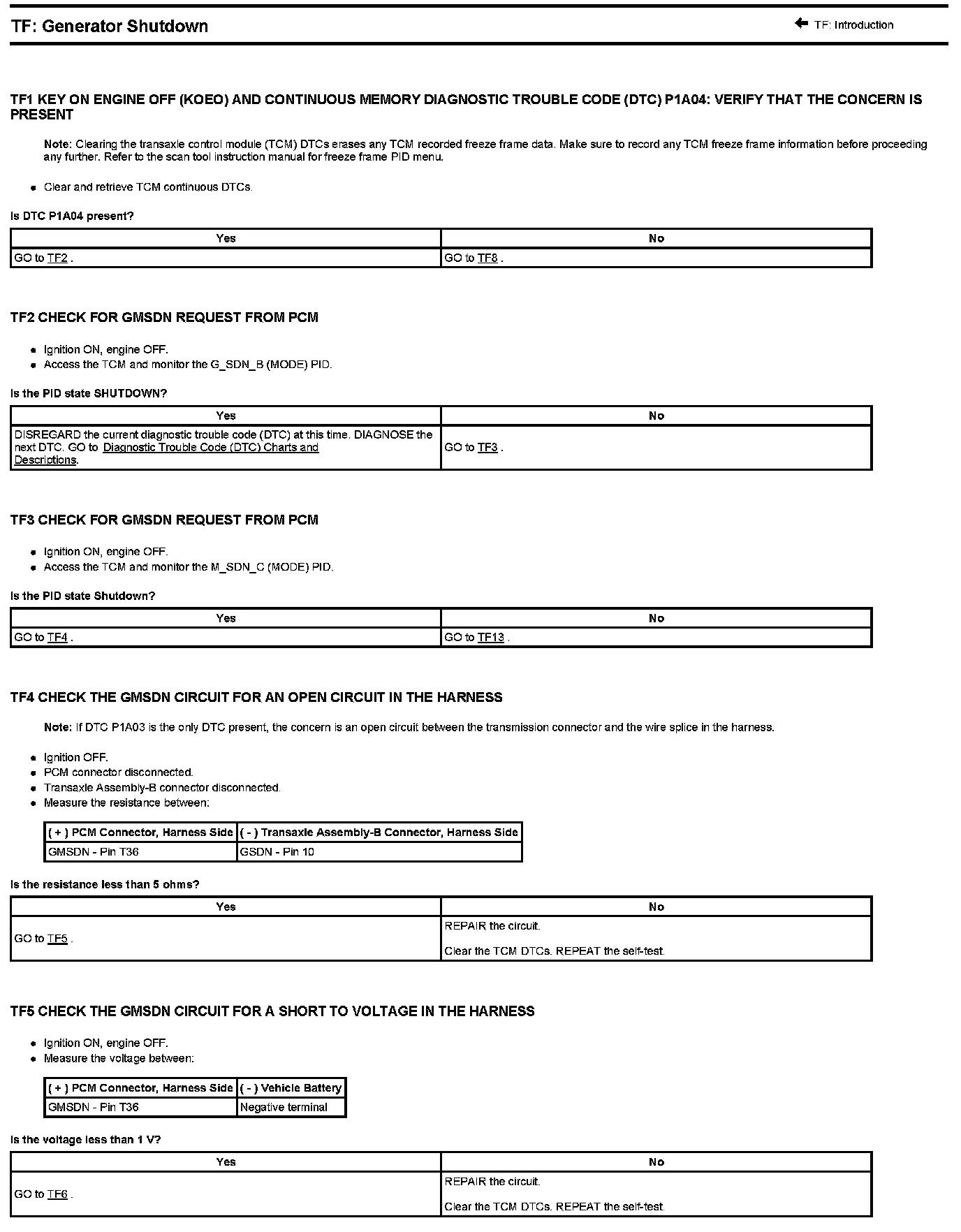

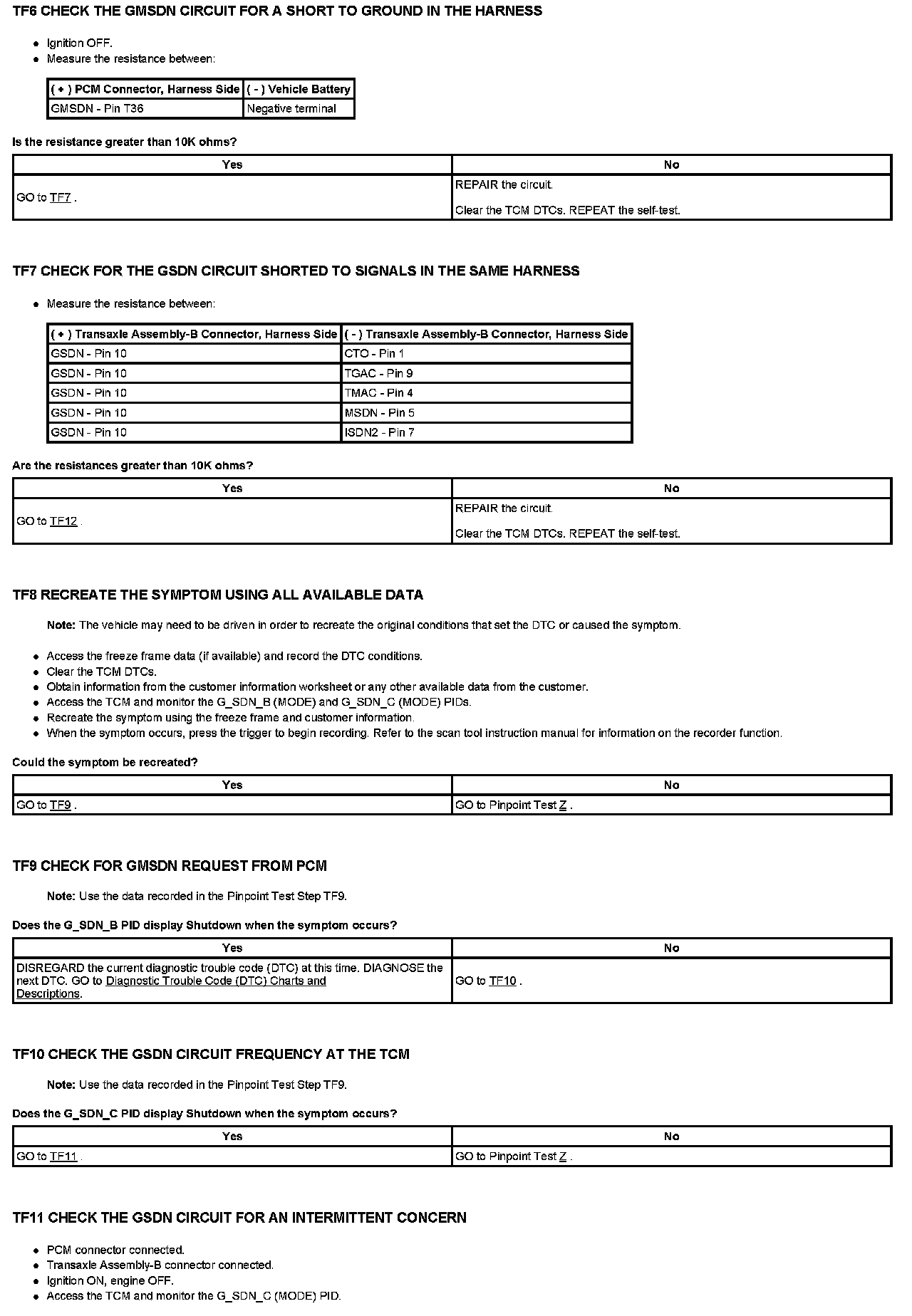

TF: GENERATOR SHUTDOWN

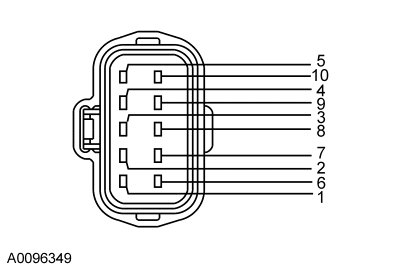

Transaxle Assembly-B Connector

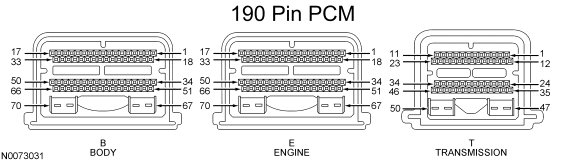

Powertrain Control Module (PCM) Connector
