Home >> Ford Truck >> 2012 >> Escape 2WD L4-2.5L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DA: Intake Air Temperature (IAT) Sensor >> Intake Air Temperature Sensor

Intake Air Temperature Sensor

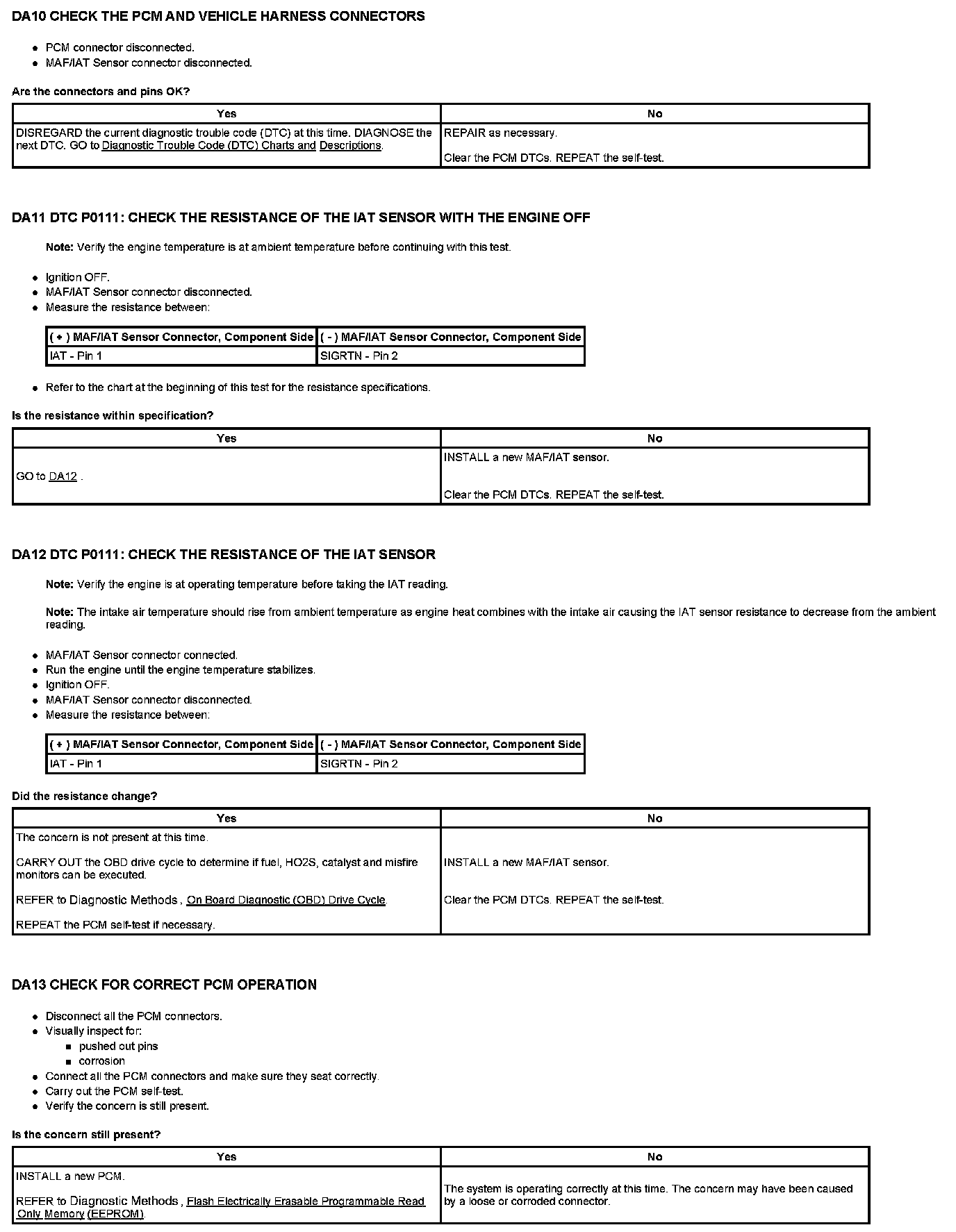

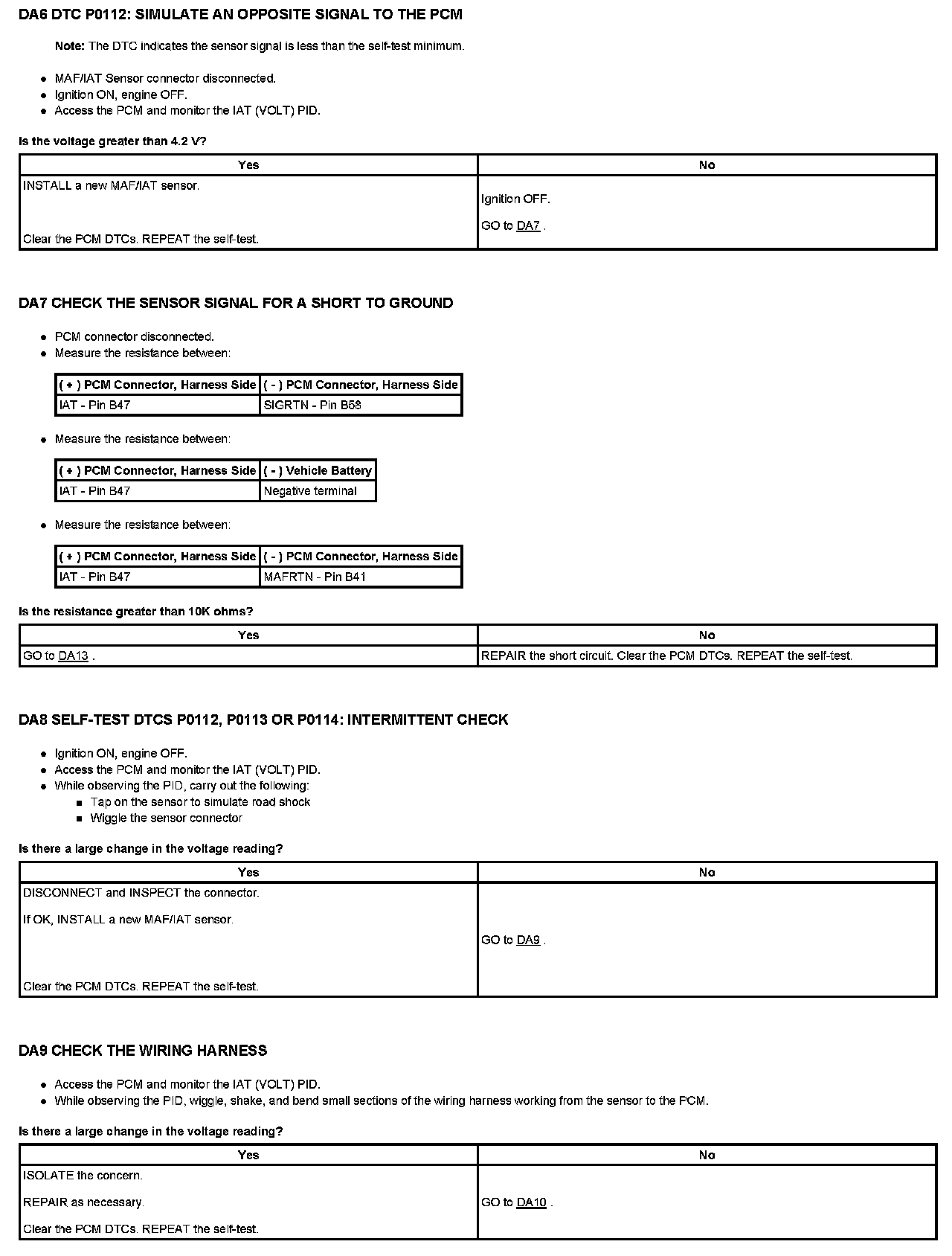

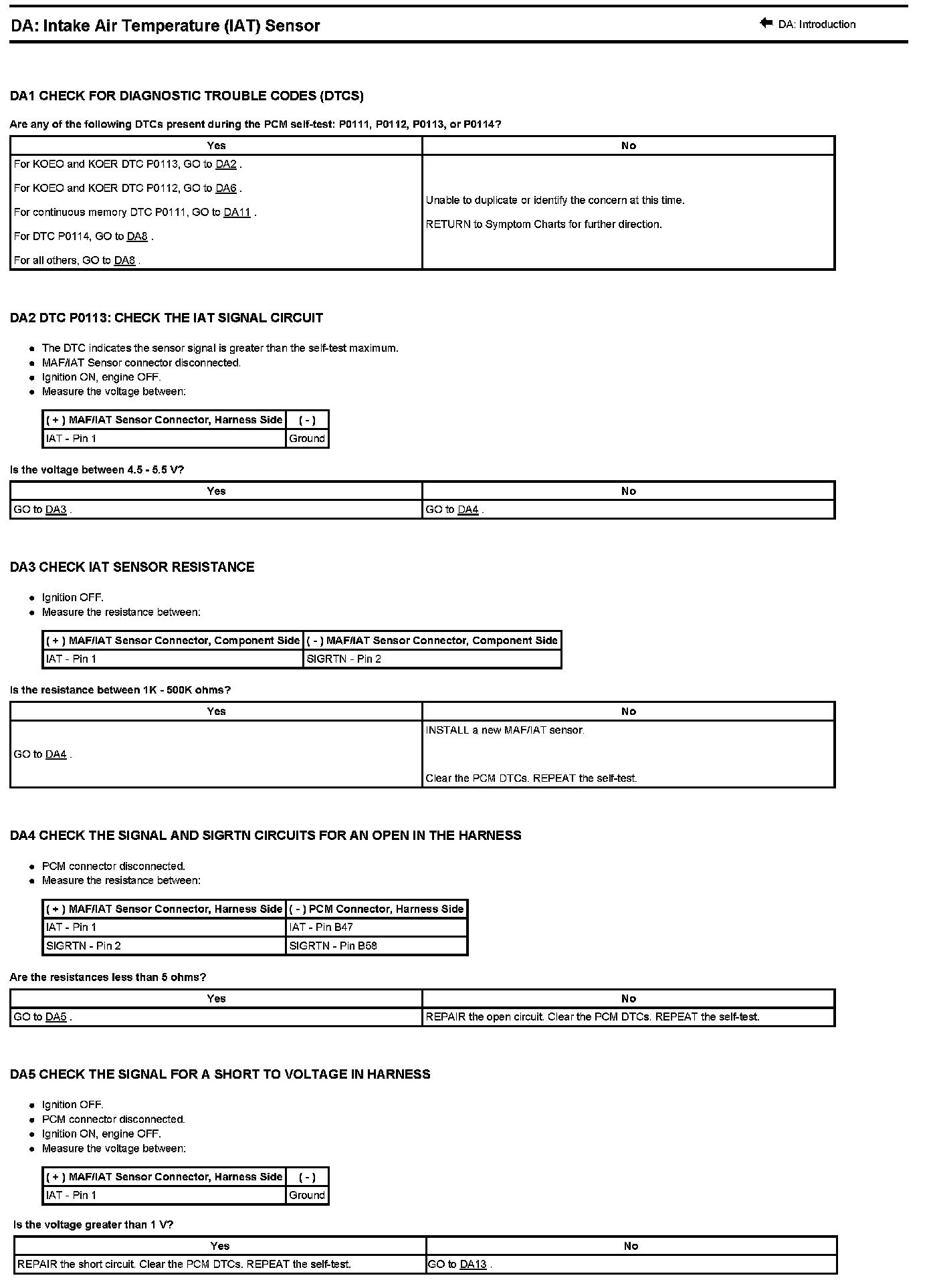

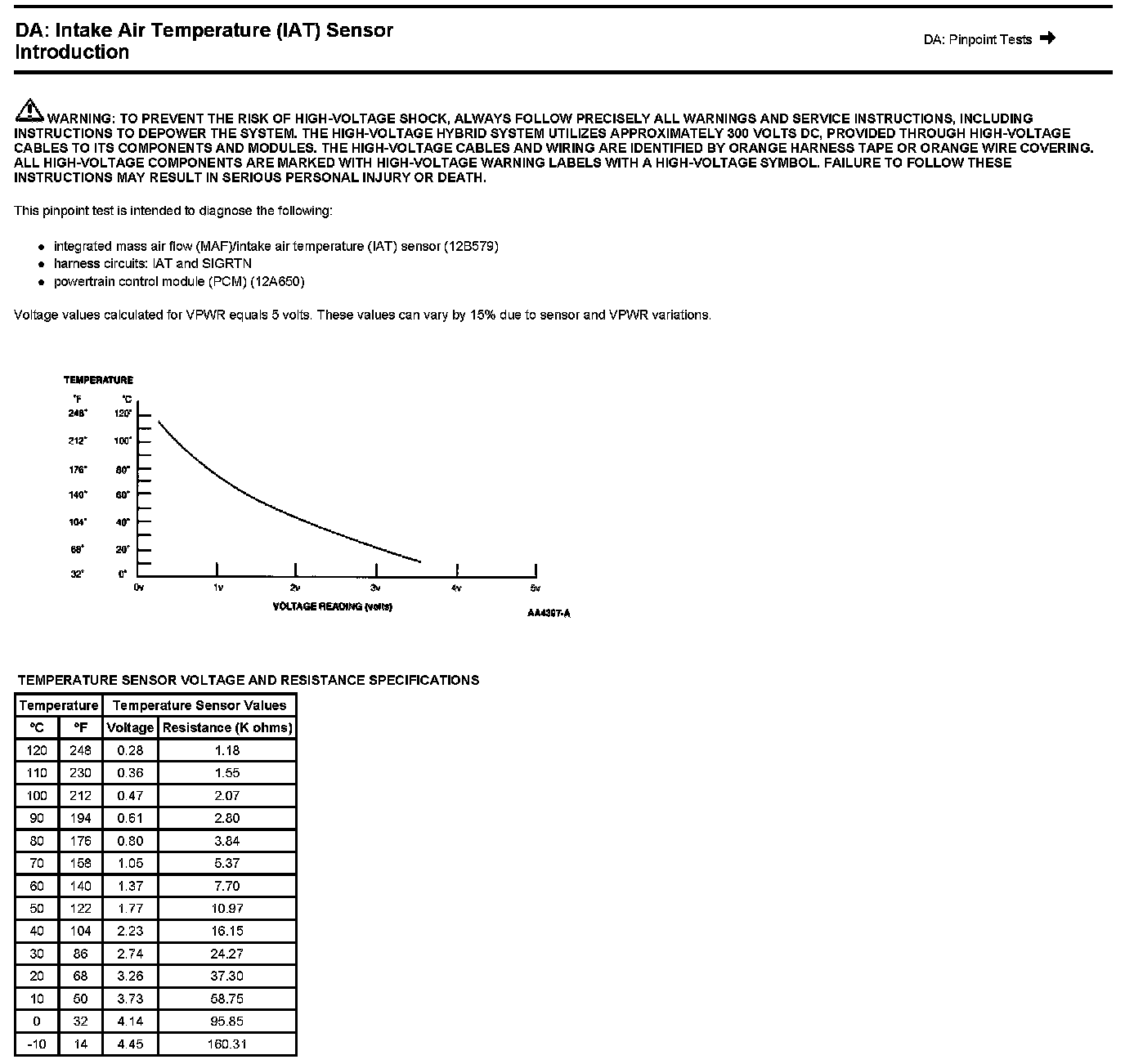

DA: INTAKE AIR TEMPERATURE (IAT) SENSOR

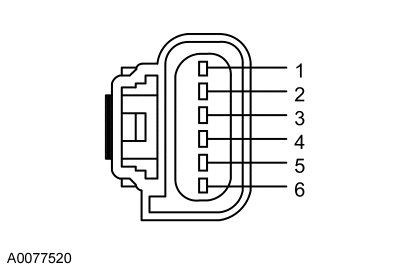

Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor Connector

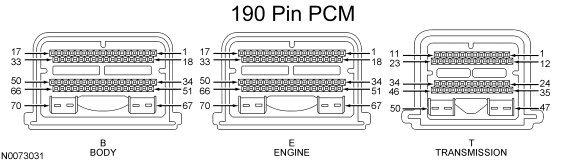

Powertrain Control Module (PCM) Connector
