Test HU: Intake Air System
Test HU: Intake Air System

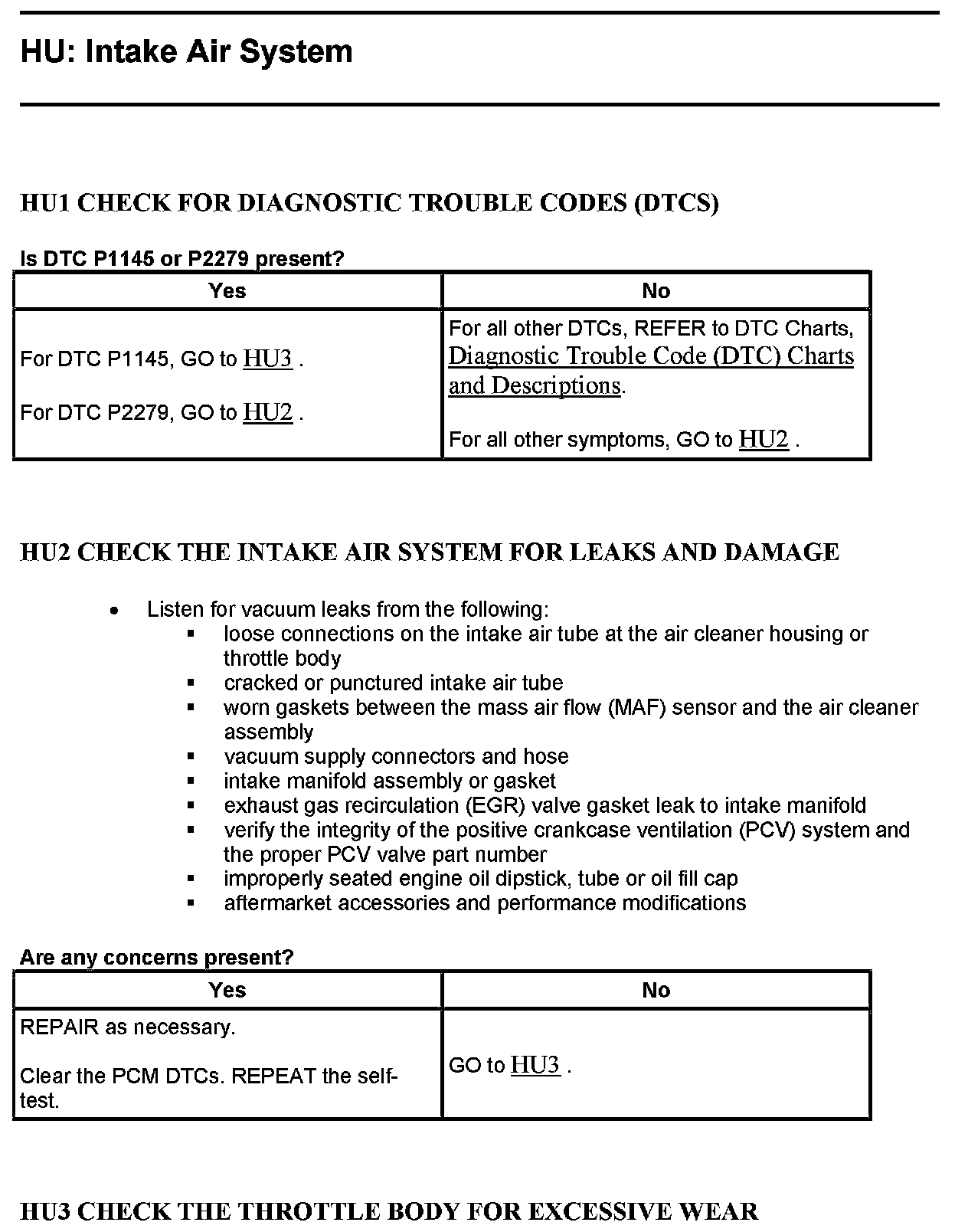

PINPOINT TEST HU: INTAKE AIR SYSTEM
Warning:
HU1-HU3:
HU3 Continued:
