Firing Order
>>
Specifications
>>

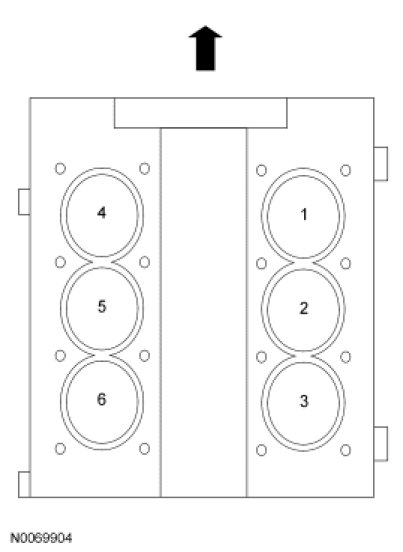

Engine Cylinder Identification
Engine Cylinder Identification
Engine Cylinder Identification
Firing Order
1-4-2-5-3-6
