Four Wheel Drive (4WD) Systems - 2-Speed Torque-On-Demand
>>

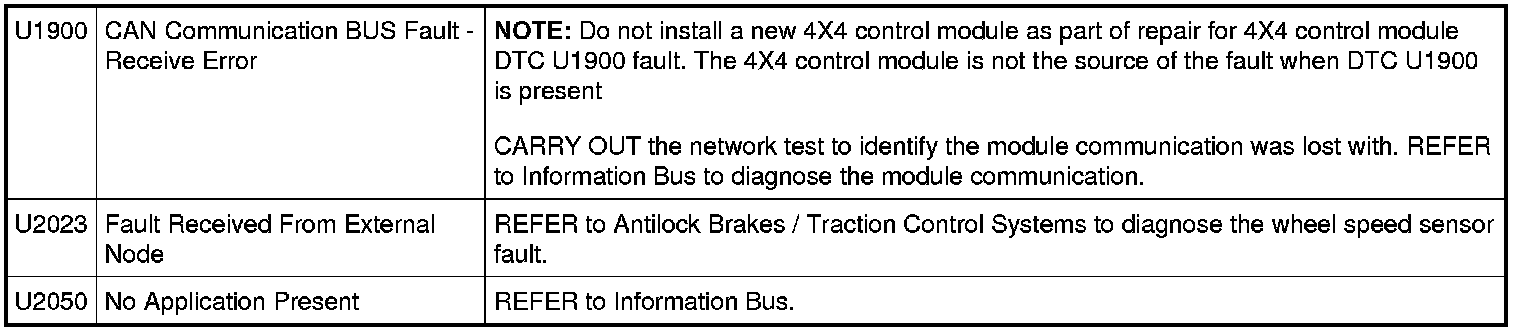

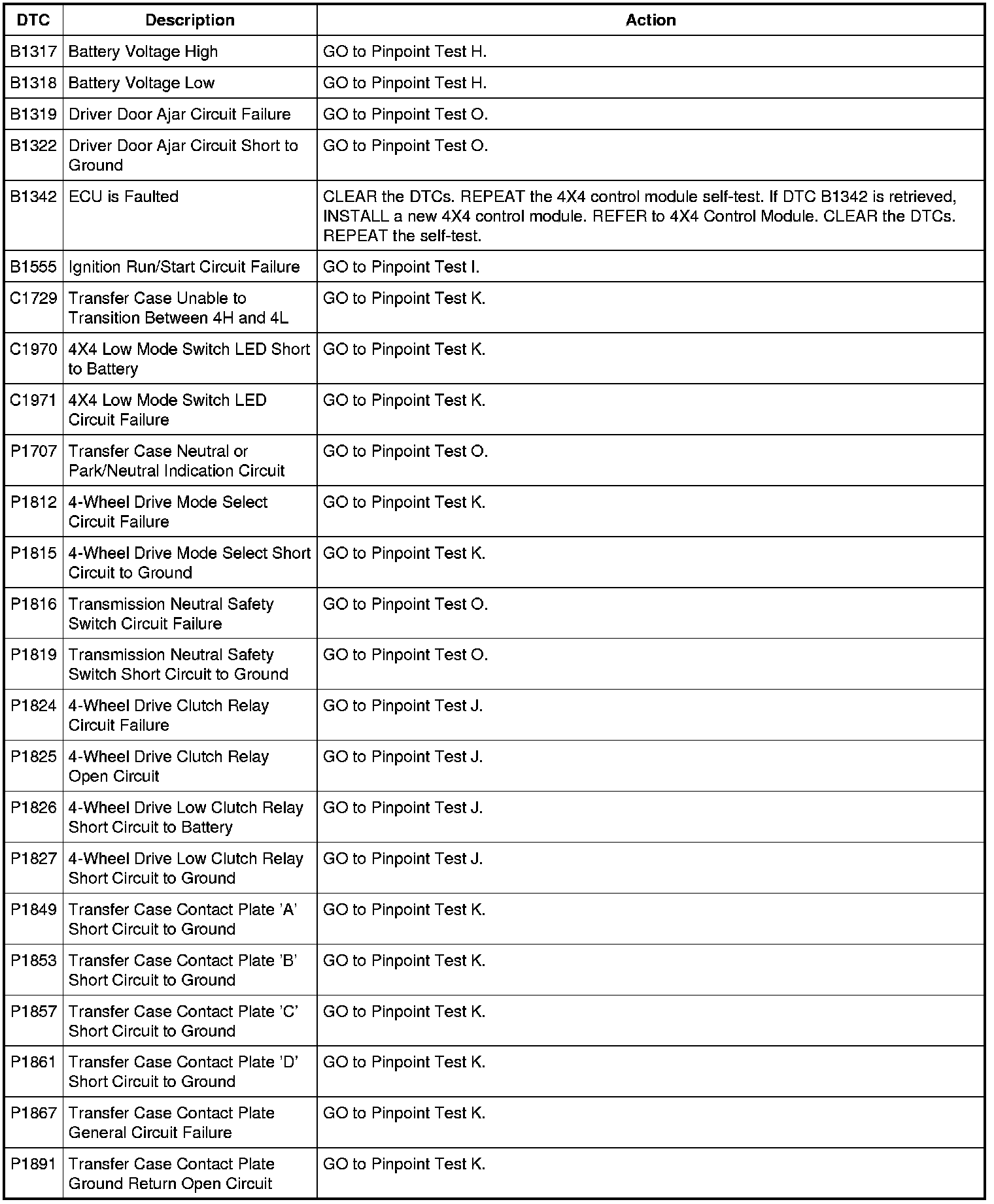

4X4 Control Module DTC Chart
4X4 Control Module DTC Chart
Four Wheel Drive (4WD) Systems - 2-Speed Torque-On-Demand
4X4 Control Module DTC Chart
