Home >> Ford Truck >> 2010 >> Explorer AWD V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 6R80 >> Diagnostic Routines >> Shift Concerns: 210 - 273 >> 272, No 5-6 Shift

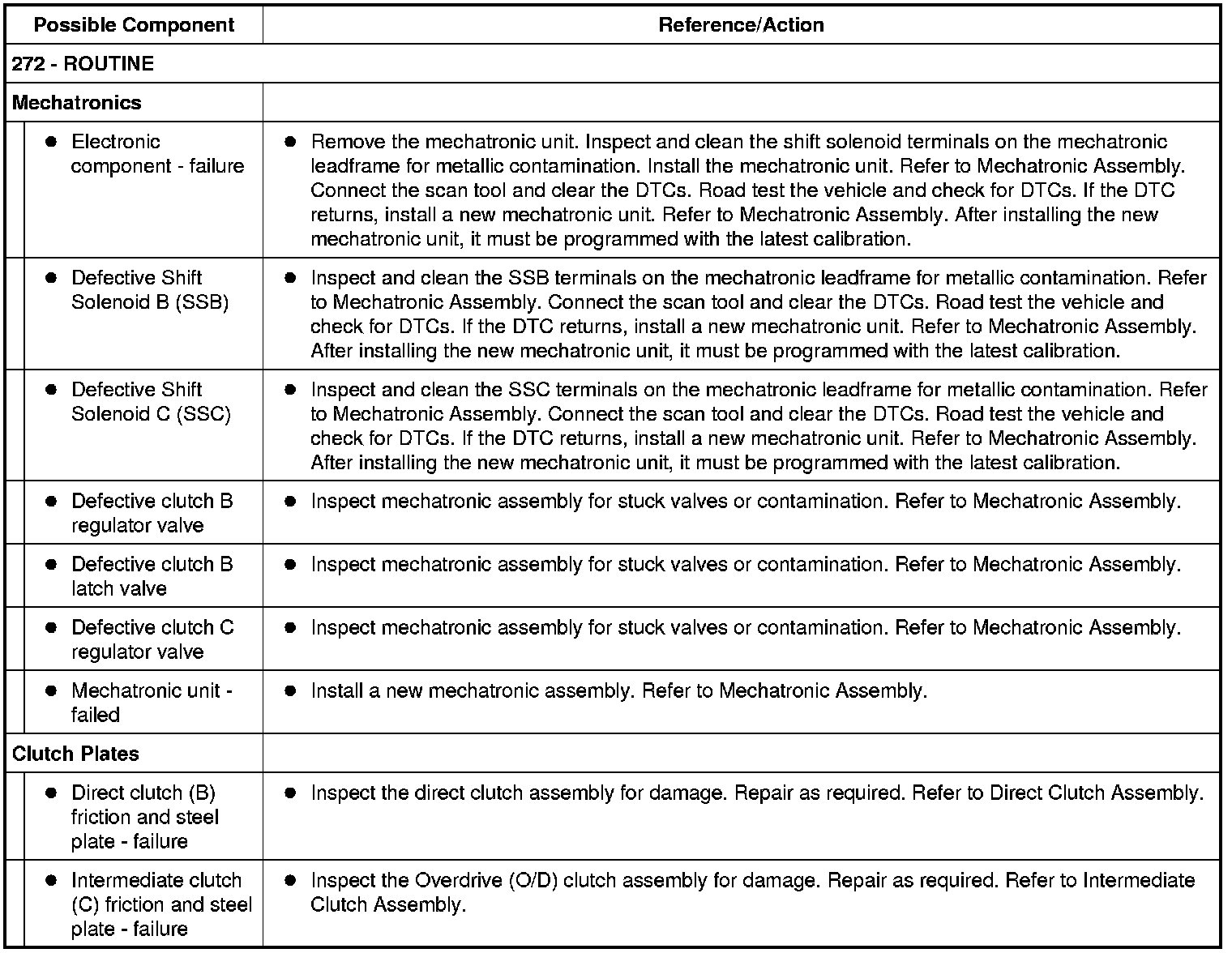

272, No 5-6 Shift




Diagnostic Routines

Shift Concerns: No 5-6 Shift
