Ford Truck
>>
2010
>>
Explorer AWD V6-4.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
6R80
>>
Diagnostic Routines
>>
Shift Concerns: 210 - 273
>>

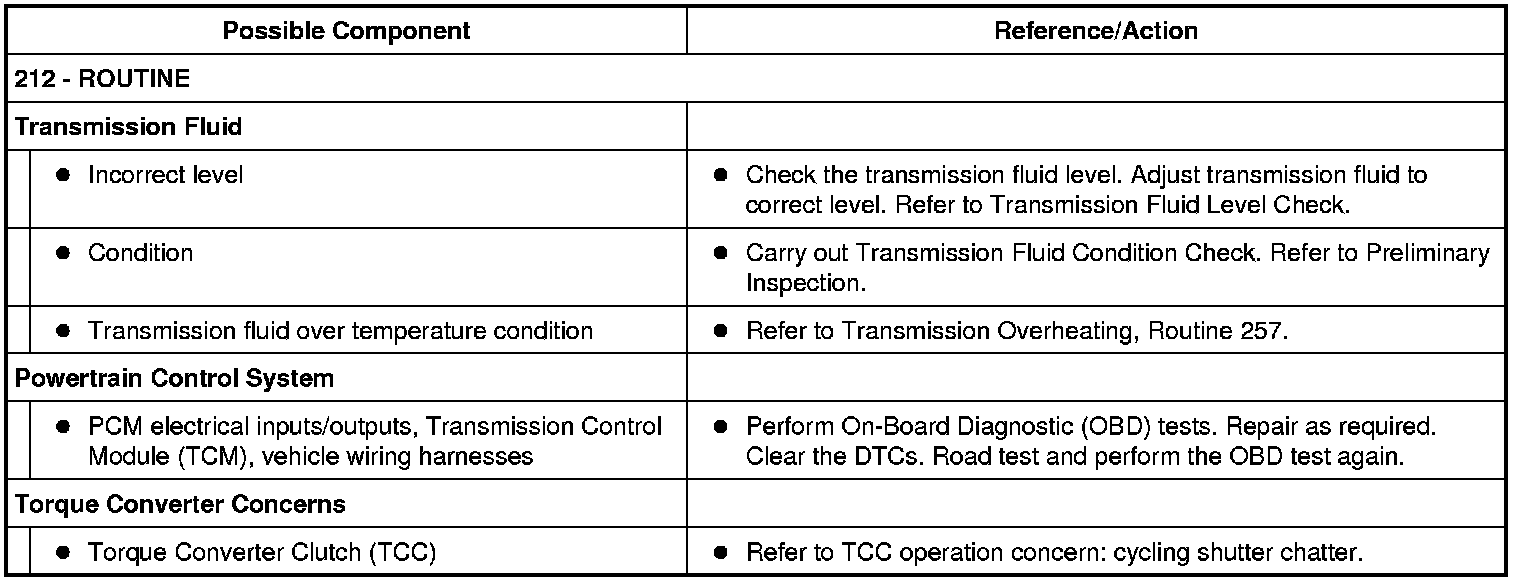

212, Timing - Erratic/Hunting (Some/All)
212, Timing - Erratic/Hunting (Some/All)
Diagnostic Routines
Shift Concerns: Timing - Erratic/Hunting (Some/All)
