Home >> Ford Truck >> 2010 >> Explorer AWD V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 6R80 >> Diagnostic Routines >> Other Concerns: 252 - 261 >> 255, Engine Will Not Crank

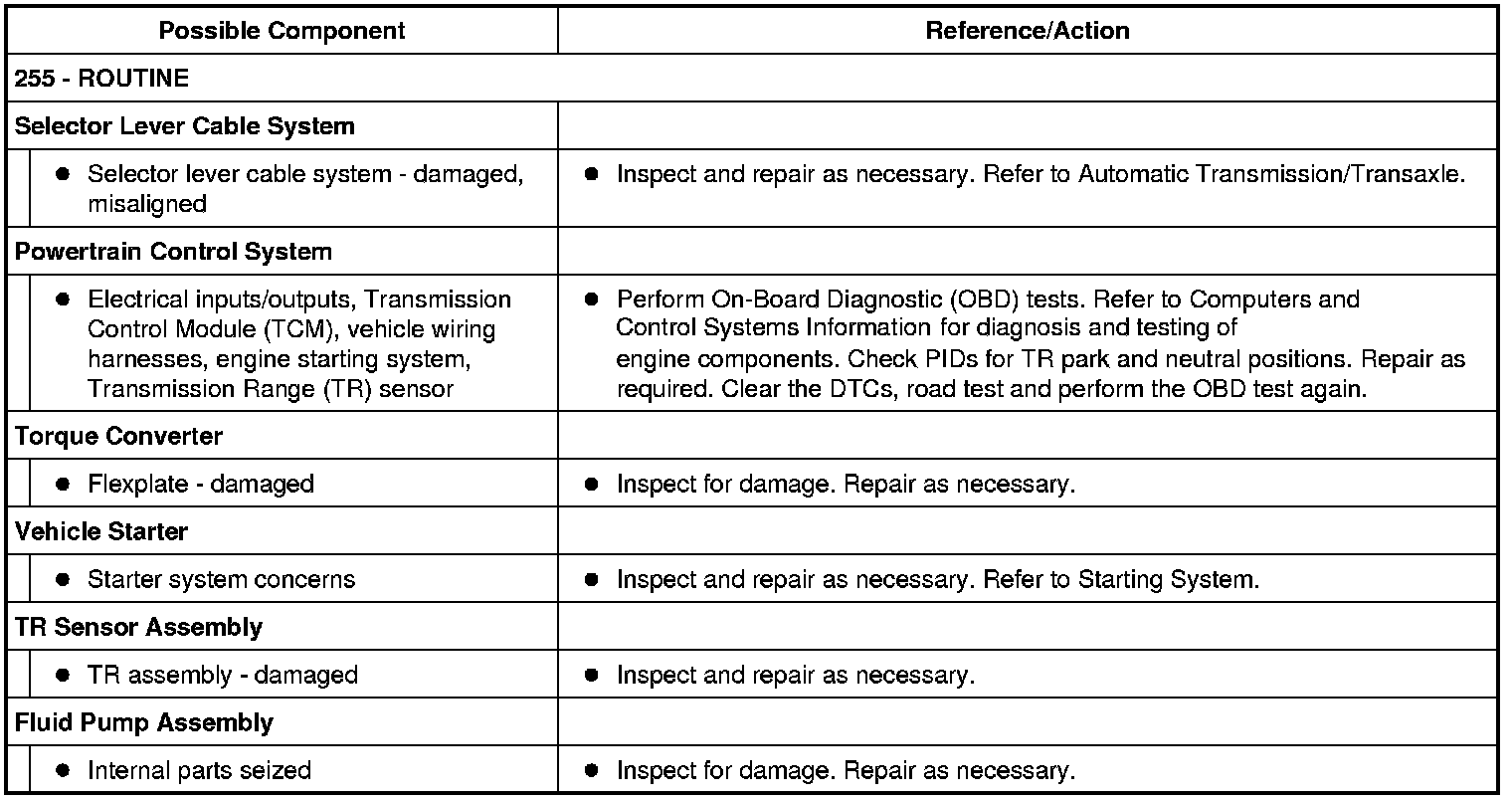

255, Engine Will Not Crank




Diagnostic Routines

Engine Will Not Crank
