Home >> Ford Truck >> 2010 >> Explorer AWD V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 6R80 >> Diagnostic Routines >> Engagement Concerns: 201 - 209 >> 205, Delayed/Soft Reverse Only

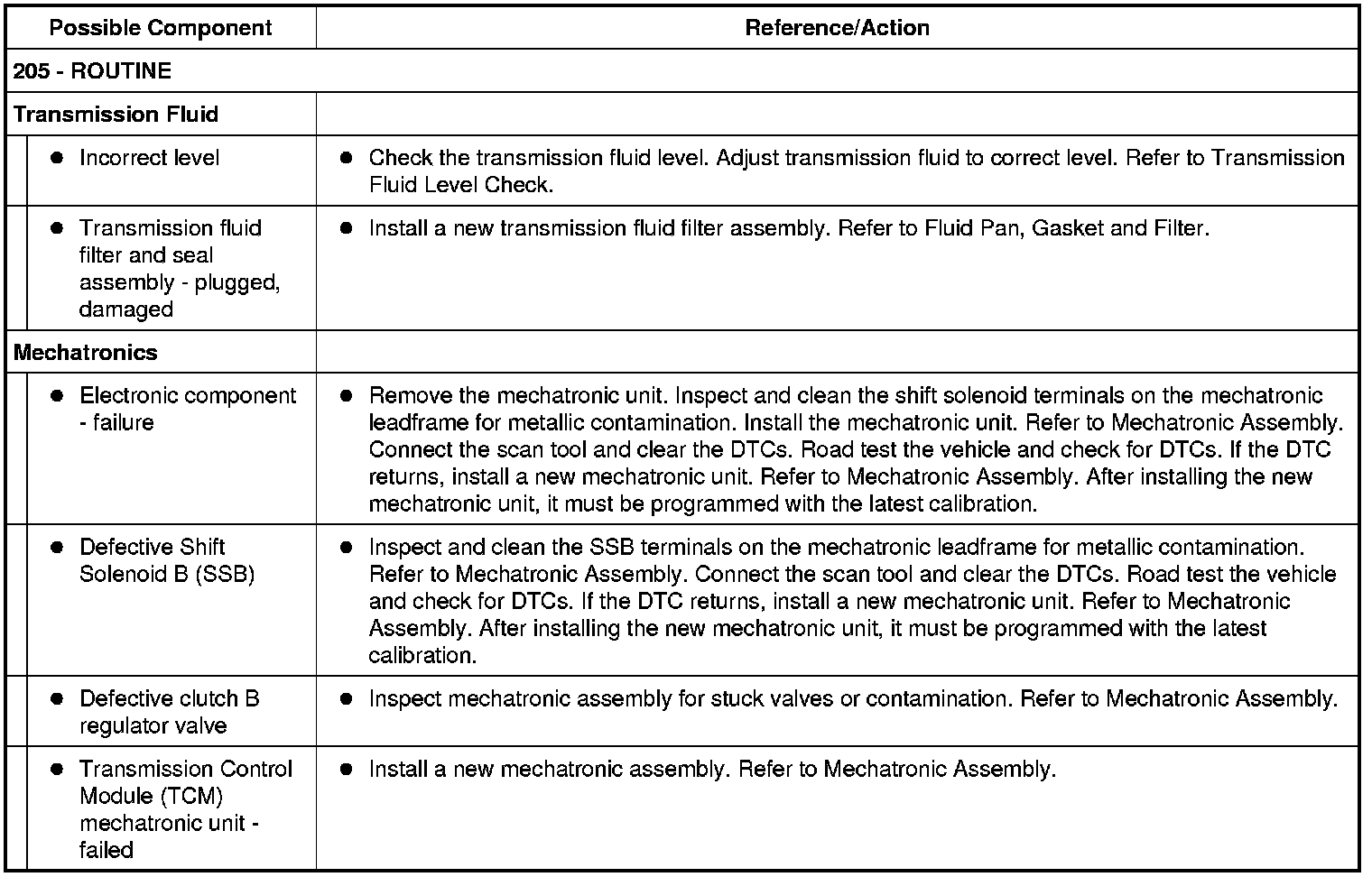

205, Delayed/Soft Reverse Only




Diagnostic Routines

Engagement Concerns: Delayed/Soft Reverse Only
