Home >> Ford Truck >> 2010 >> Explorer AWD V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 5R55S >> Diagnostic Routines >> Shift Concerns: 210 - 275 >> 237, Harsh 2-1 Shift

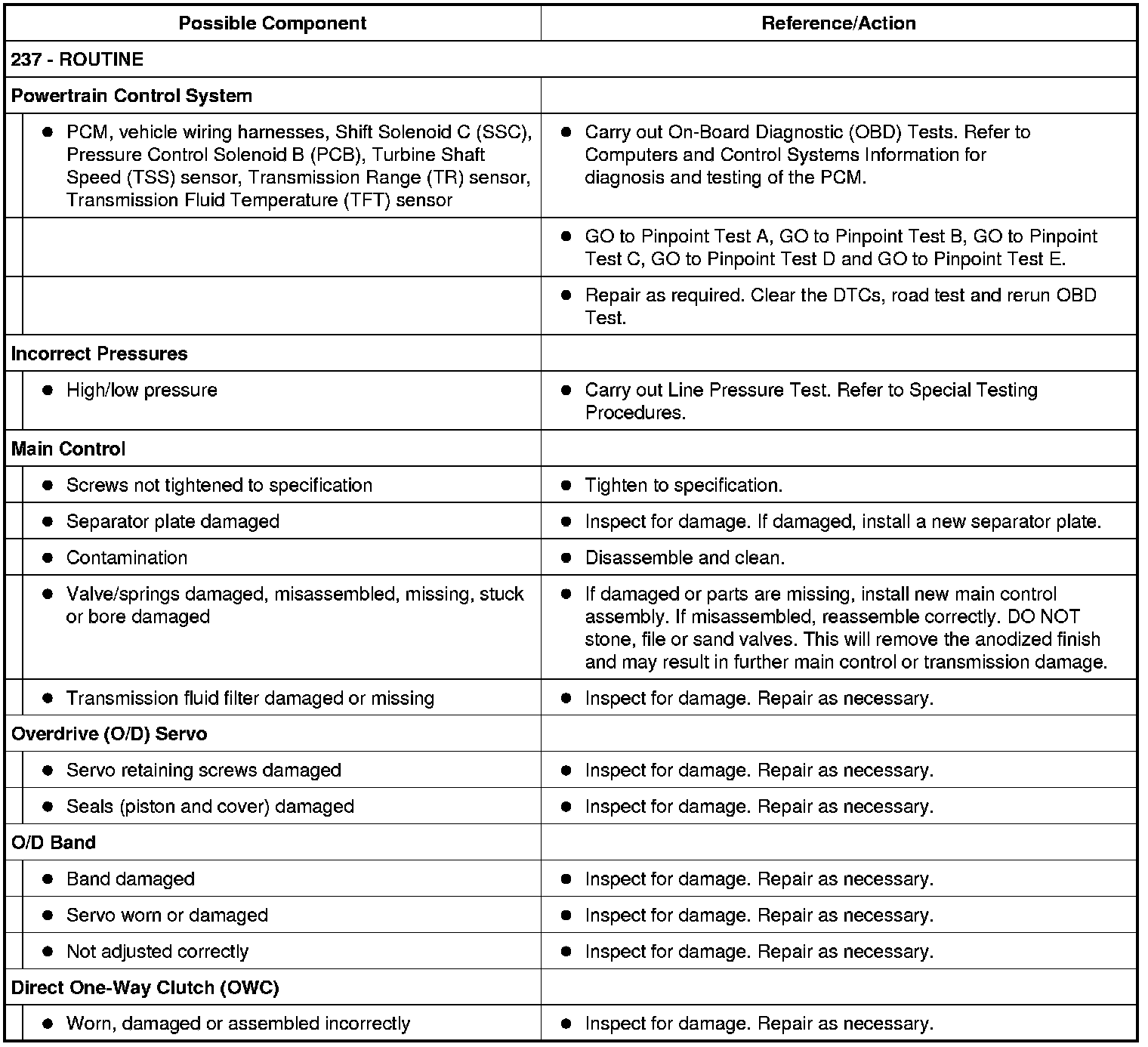

237, Harsh 2-1 Shift




Diagnostic Routines

Shift Concern: Harsh 2-1 Shift
