Home >> Ford Truck >> 2010 >> Explorer AWD V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 5R55S >> Diagnostic Routines >> Shift Concerns: 210 - 275 >> 234, Harsh 3-4 Shift

234, Harsh 3-4 Shift




Diagnostic Routines

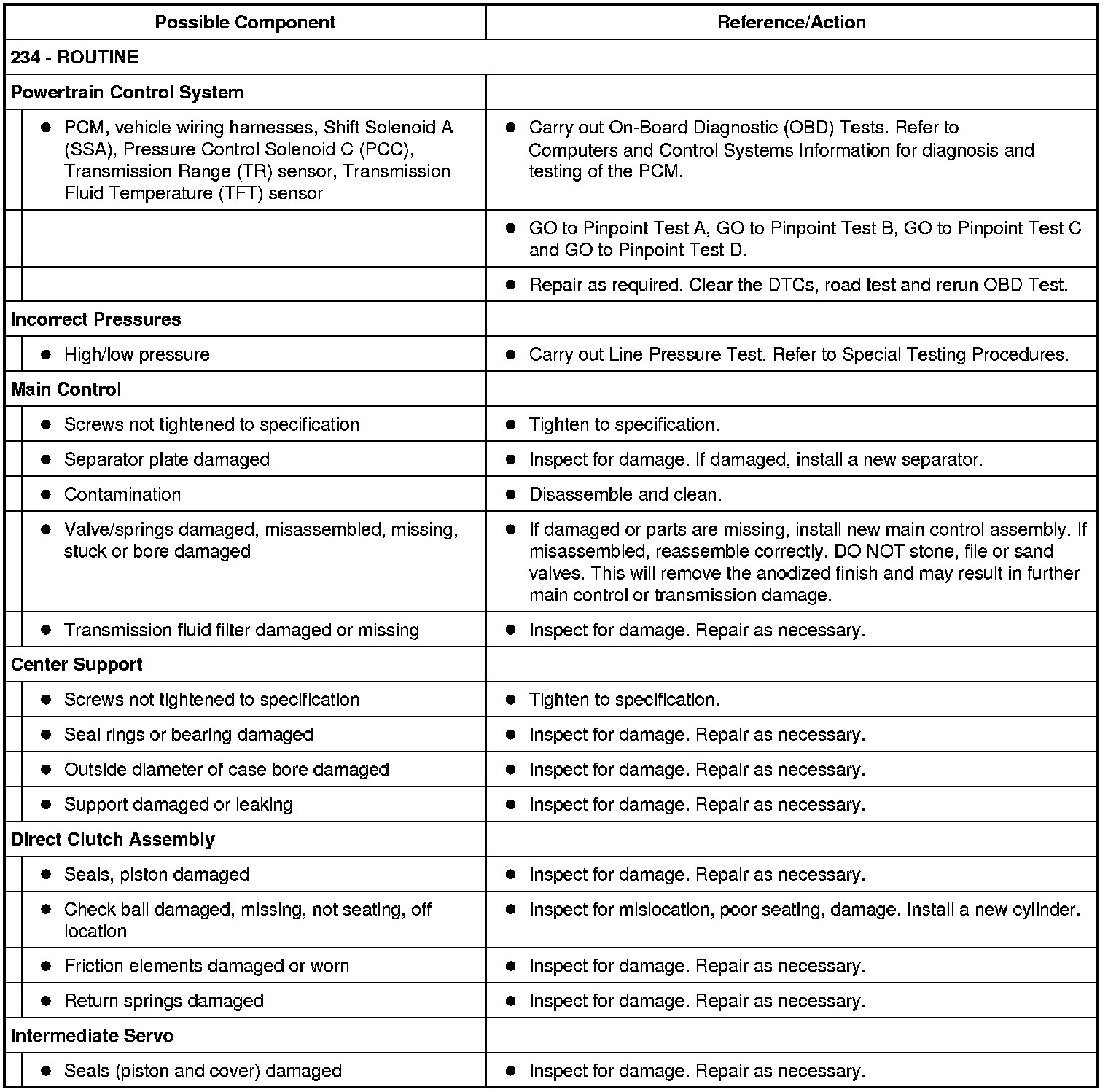

Shift Concern: Harsh 3-4 Shift
