Home >> Ford Truck >> 2010 >> Explorer AWD V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 5R55S >> Diagnostic Routines >> Shift Concerns: 210 - 275 >> 217, No 2nd Gear In Manual 2 Position

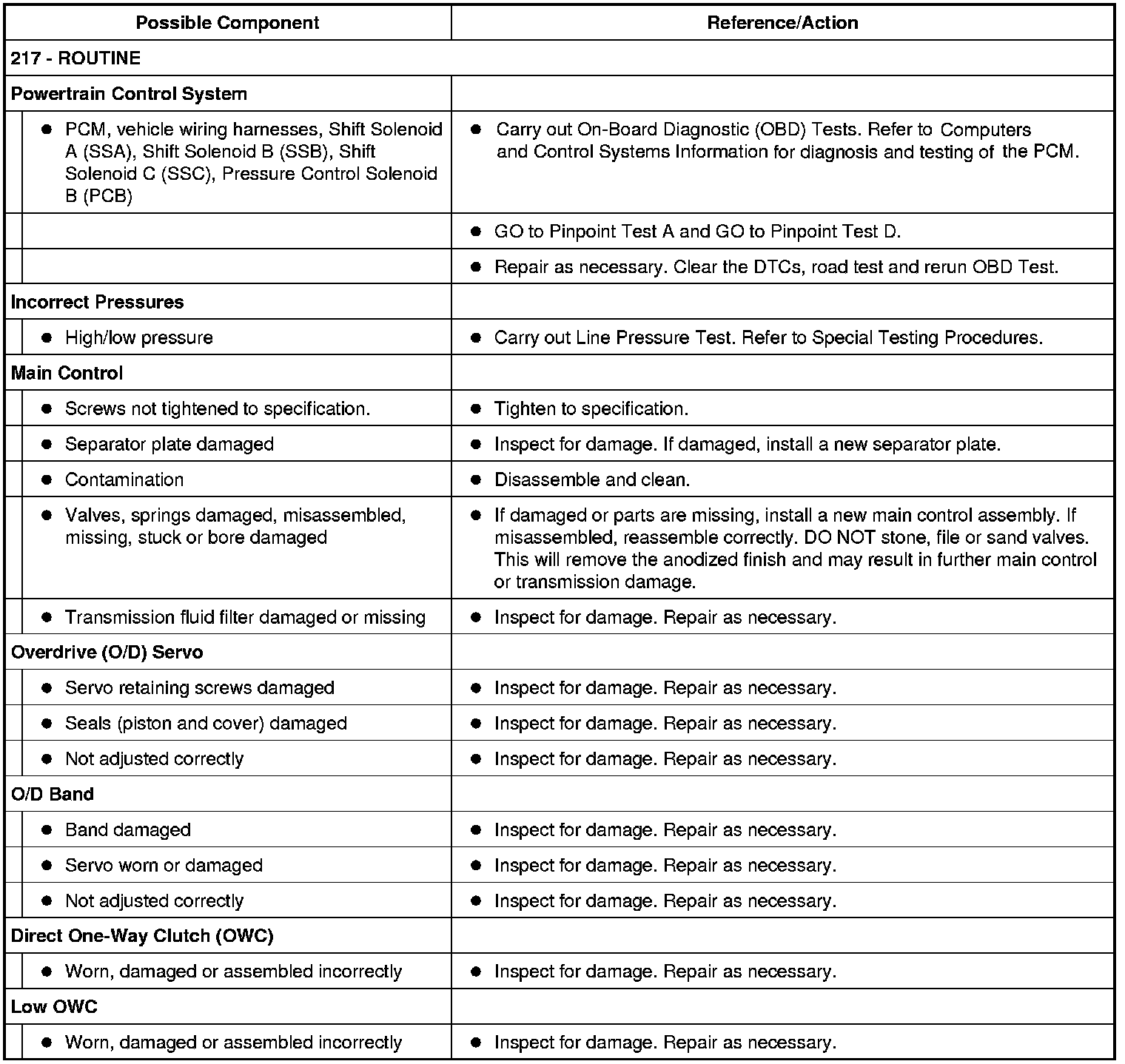

217, No 2nd Gear In Manual 2 Position




Diagnostic Routines

Shift Concern: No 2nd Gear in Manual 2 Position
