Ford Truck
>>
2010
>>
Explorer AWD V6-4.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
5R55S
>>
Diagnostic Routines
>>
Shift Concerns: 210 - 275
>>

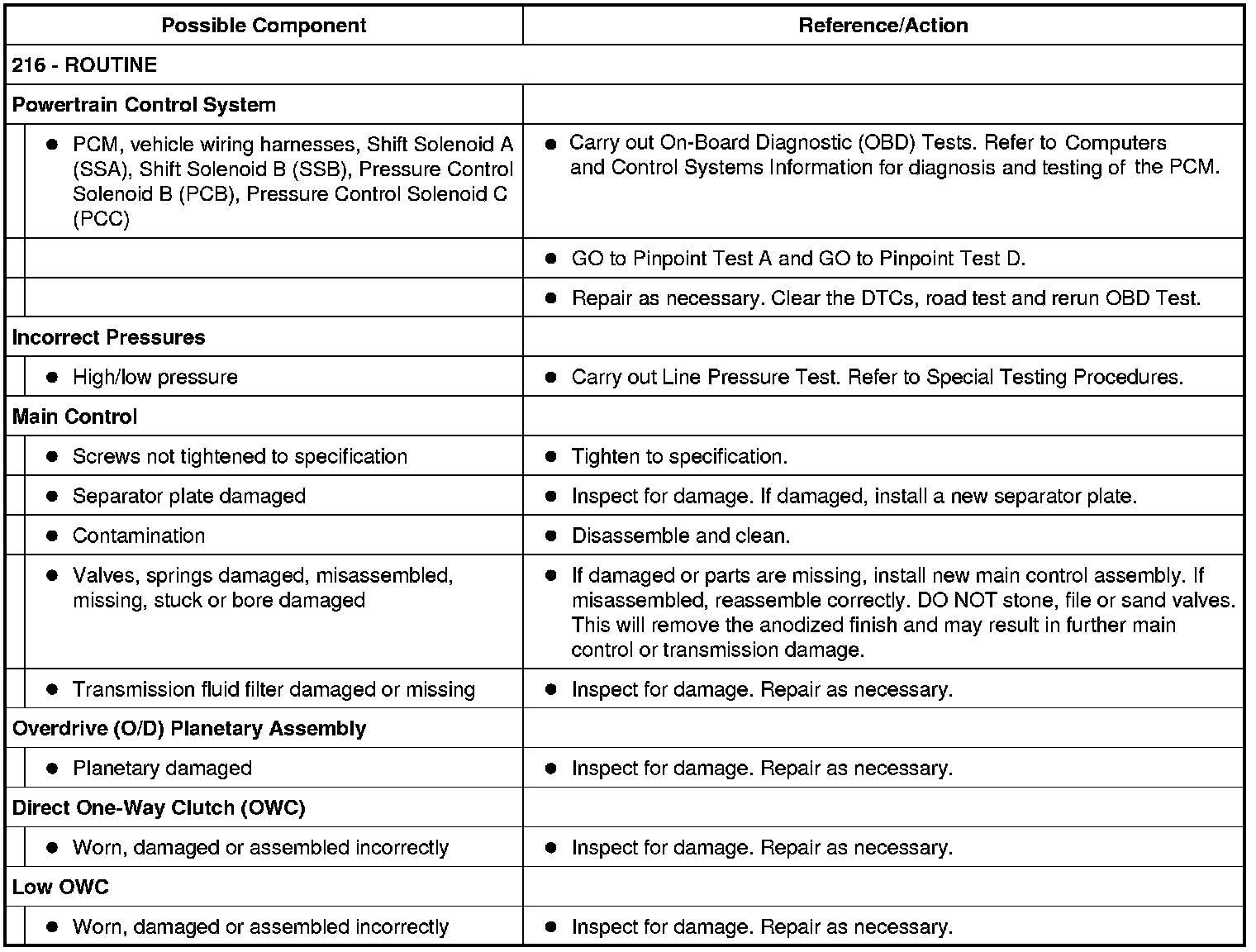

216, No 1st Gear In Manual 1 Position
216, No 1st Gear In Manual 1 Position
Diagnostic Routines
Engagement Concern: No 1st Gear in Manual 1 Position
