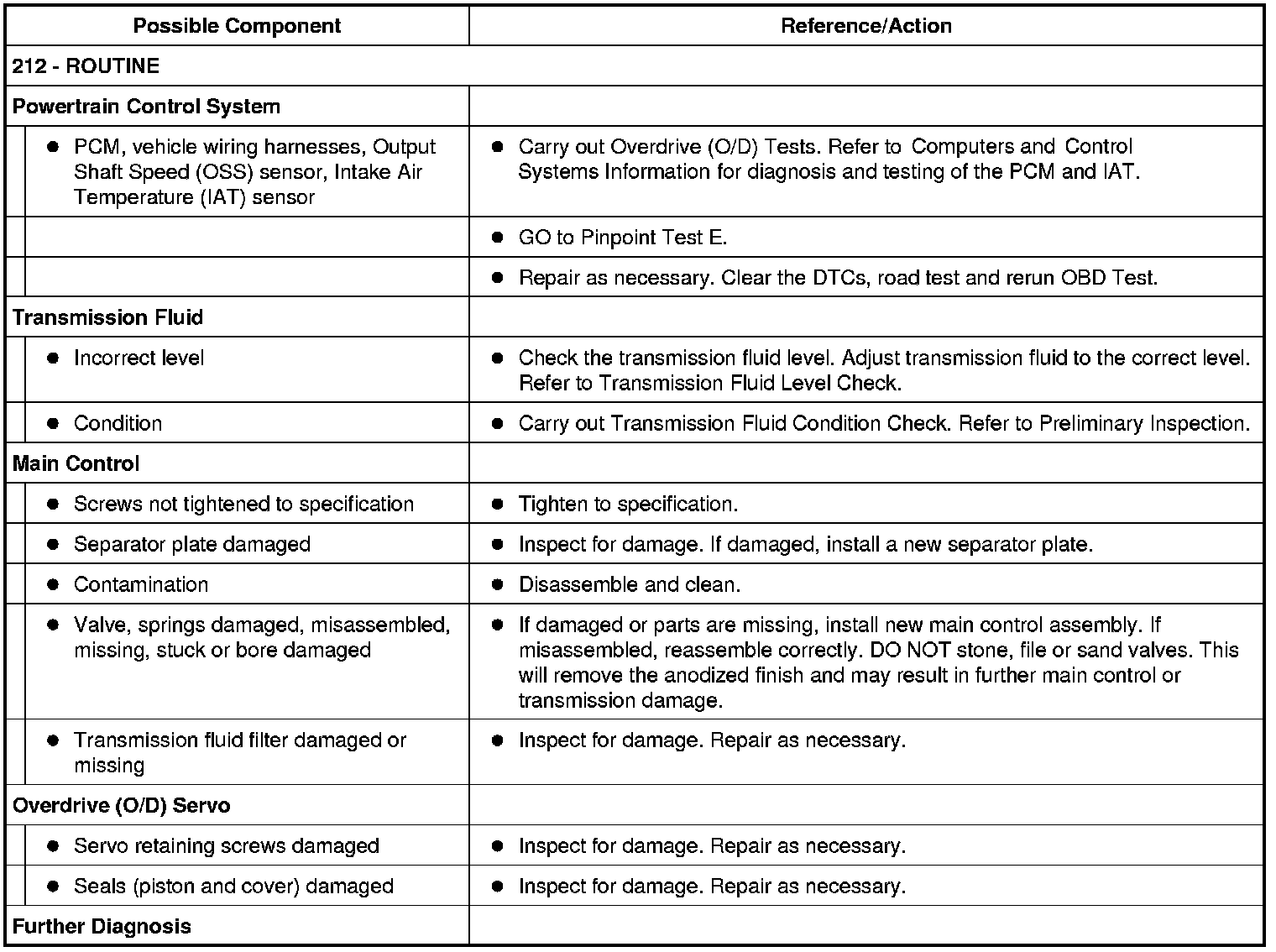

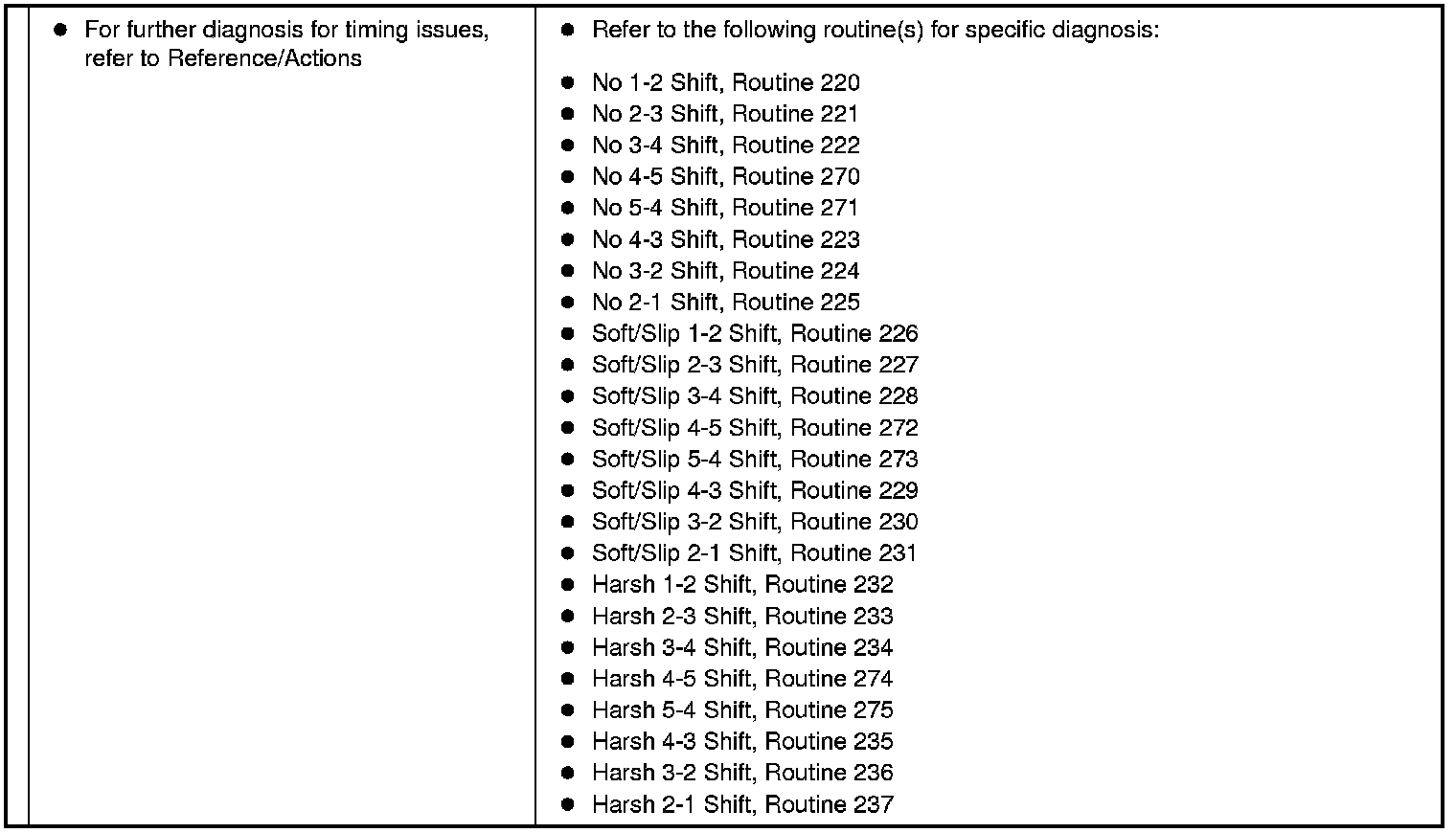

212, Timing Concerns - Erratic/Hunting (Some/All)




Diagnostic Routines

Shift Concern: Timing Concerns - Erratic/Hunting (Some/All)
