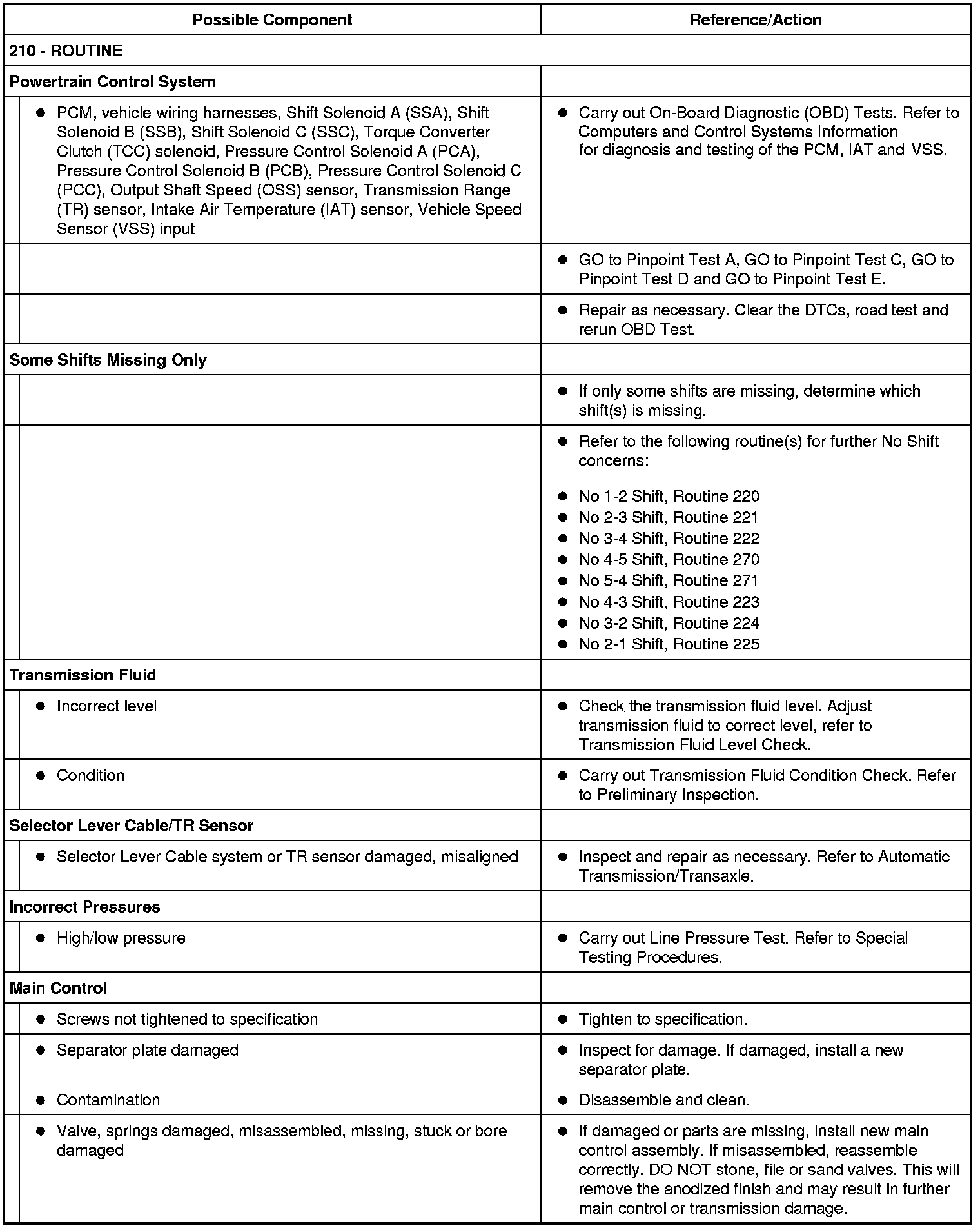

210, Some/All Shifts Missing (Automatic Mode Only)




Diagnostic Routines

Shift Concern: Some/All Shifts Missing (Automatic Mode Only)
