284, No 2nd and 5th Gears (Manual 2nd Is OK)
284, No 2nd and 5th Gears (Manual 2nd Is OK)
Diagnostic Routines

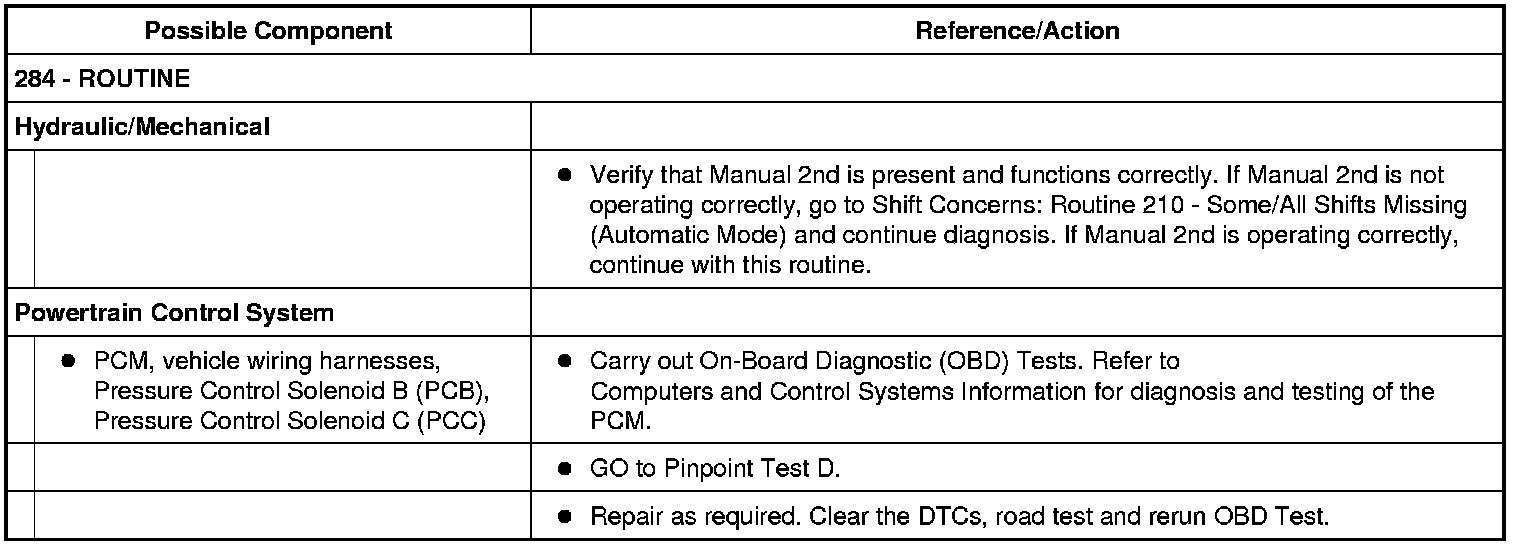

Other Concern: No 2nd and 5th Gears (Manual 2nd is OK)
